72
5.4.6 Handling and Lifting
Handling and lifting of the main unit should be performed by a qualified installation team.
During lifting, the main unit should be kept stable both horizontally and vertically.
5.4.6.1 Handling and Lifting
Each unit will undergo a series of strict factory inspections and tests to guarantee the
expected performance and quality. However, special attention should be paid during handling
and shipping to prevent the control system and the piping system from being damaged.
The unit should be moved by the forklift or hoisting machine. During lifting, the canvas lifting
or steel ropes in use should be of enough strength and go through the based and then bundled
tightly. The unit should be lifted stably from four corners. Meanwhile, be sure there should be
protective pads to prevent lifting ropes contacting with the unit. The inclination angle during
lifting should be less than 15 degree. The unit should be moved softly and severe collision and

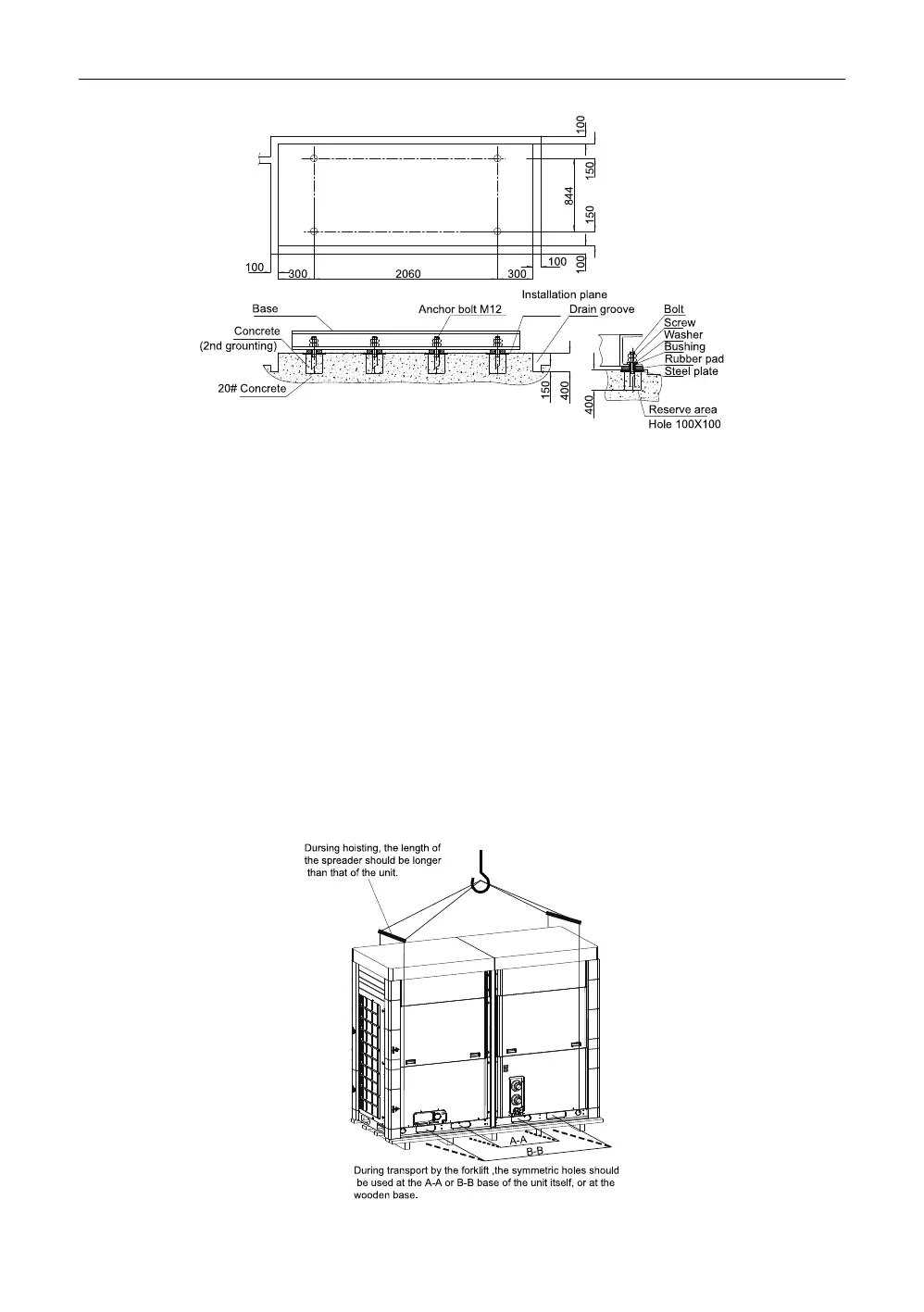

forced drag are not allowed. Please do lifting as shown in the figure below for units with similar
structure.
A Series Modular-type Air-cooled (Heat Pump) Chiller
