Note: the function for the press button at the upper right corner is reserved and there will no
response to this operation.This picture as shown above is just for reference
4.4.1 Homepage

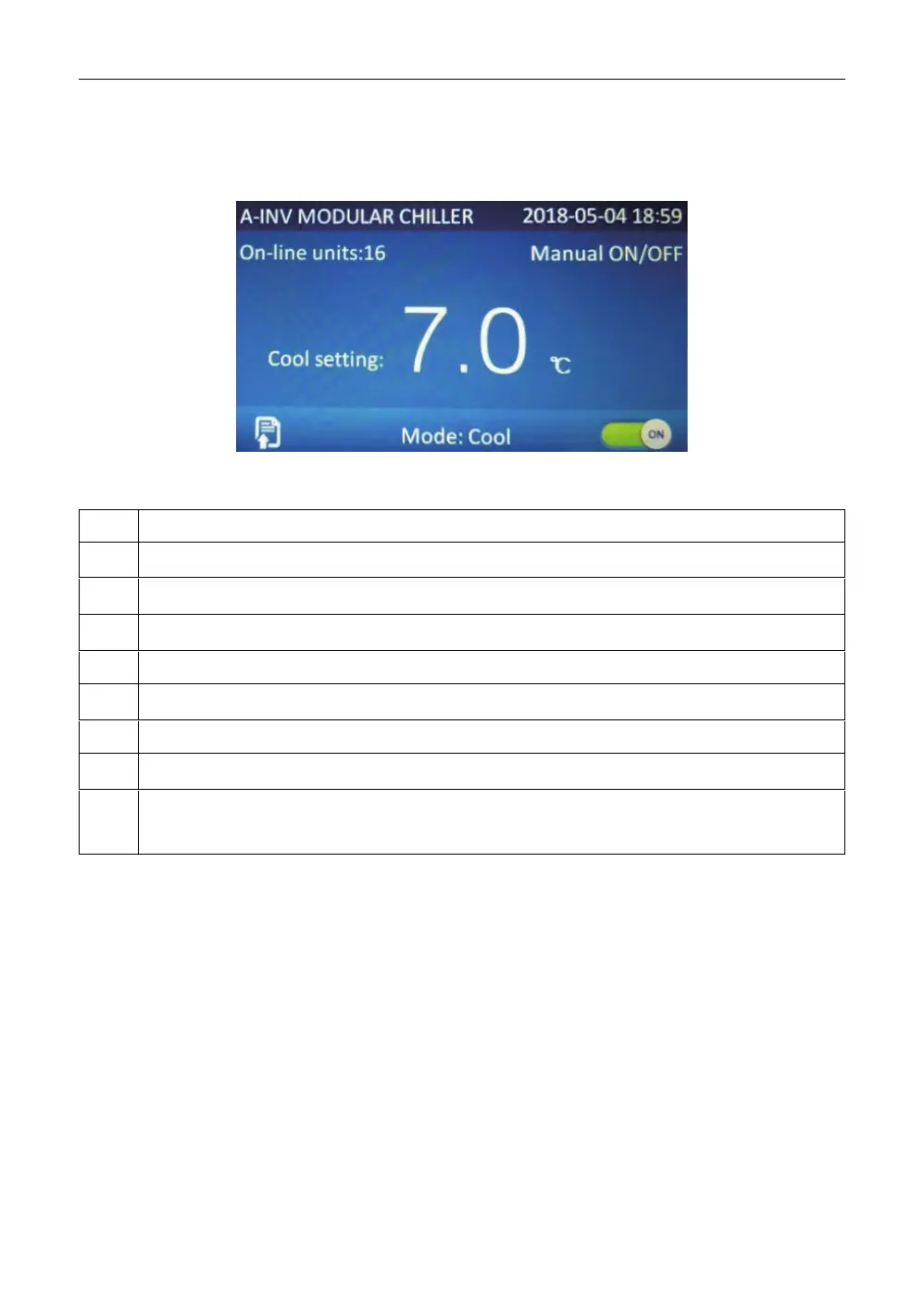

Fig 4-1 Homepage
No Introduction
1
Unit name, error icon and name, BMS alert
2
Year, month, day, hour, and minute
3
Quantity of the on-line units
4 ON/OFF mode
5
Temperature set point under the corresponding control mode
6 Menu icon
7
Run mode setting
8
On/Off key. When “Contact ON/OFF” or ON/OFF timer has been activated, ON/OFF
status will change with the actual status of the unit.
(1)It is defaulted to keep at the homepage.
(2)Touching the menu icon is able to access to the menu page.
(3)Generally the unit name is displayed at the left upper corner of the control panel. If there
is BMS communication, the BMS alert “Remote Control:On” and the unit name will be
displayed circularly in five minutes.
(4)Generally the unit name is displayed at the left upper corner of the control panel. If there
are errors, their icons and names will be displayed circularly (one time every second)
instead
A Series Modular-type Air-cooled (Heat Pump) Chiller
To Next Page
