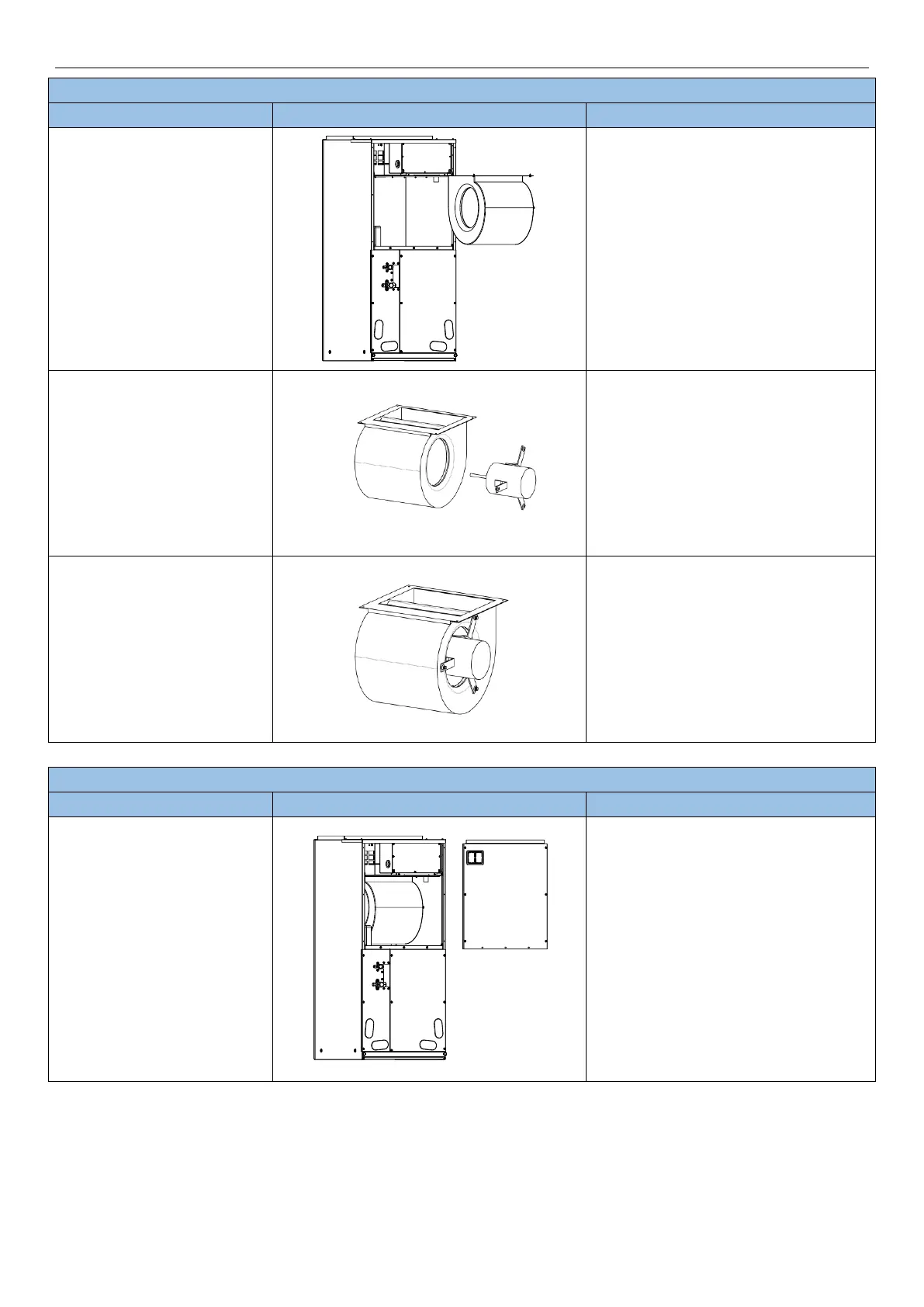

Disassembly and Assembly of the Fan Motor
Step
Work instruction
2. Remove the fan.
● Disconnect the wires of the fan from the
wiring terminal and draw them out.
● Loosen screws located at the front of the
fan with a screwdriver.
● Remove the fan from the unit.
3. Remove the motor.
● Loosen screws fixing the motor and fan
blades.
● Loosen screw bolts fixing the bracket.
● Remove the motor rightward from the
fan.
4. Reinstall the fan.
● Place the motor at the proper position.
● Tighten screws fixing the motor and fan
blades.
● Tighten screw bolts fixing the motor
bracket.
● After the installation, reassemble the unit
as before.
Disassembly and Assembly of the Evaporator and Drain Pan
Step
Work instruction
1. Remove the upper panel.
● Loosen screws round the upper panel
with a screwdriver.
● Remove the upper panel from unit
