Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
73

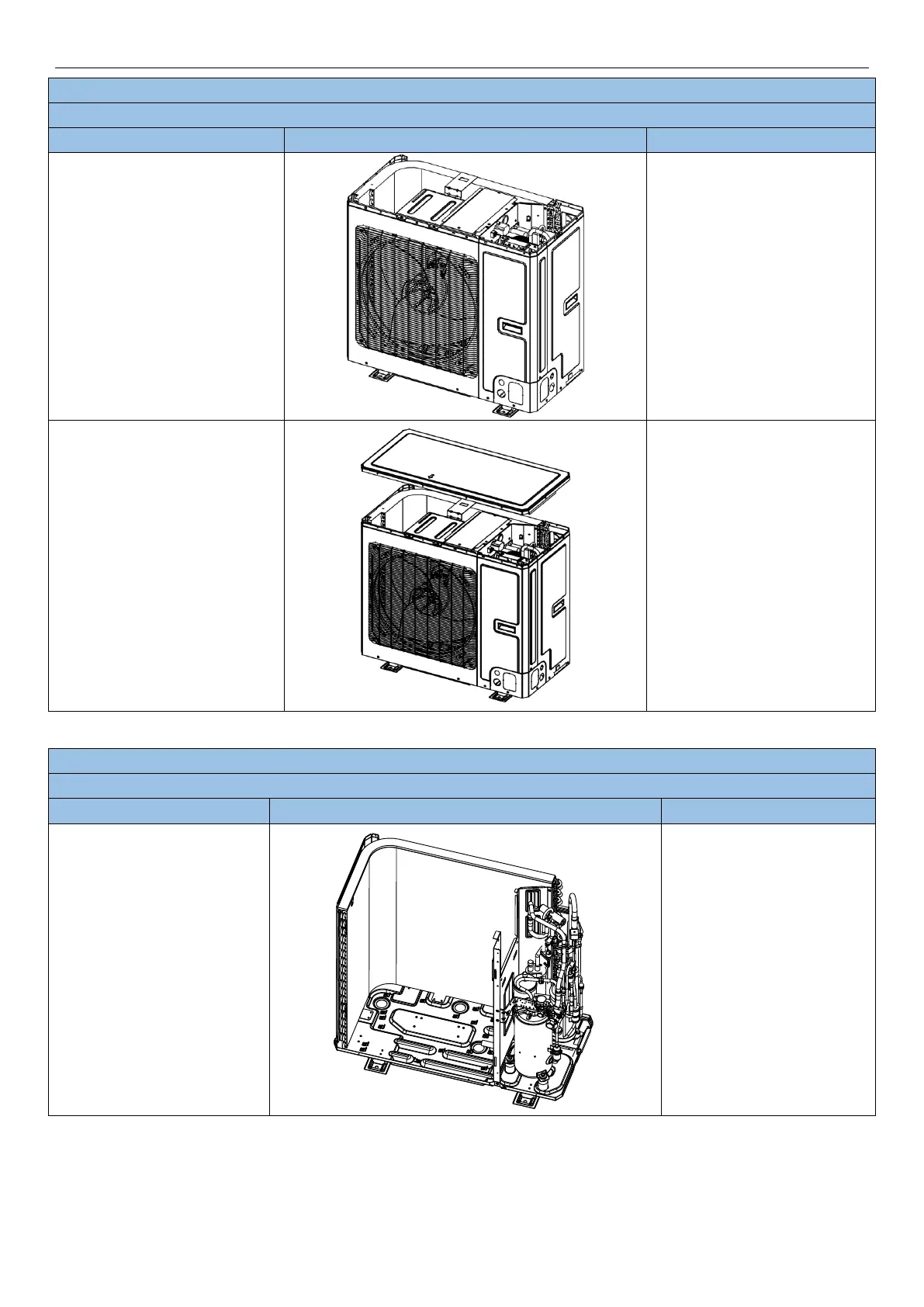

Removal of front panel
NOTE: Before removing the front panel, make sure power is cut off.
Step
Work instruction
9. Install the front side plate.
 Fix the clasps on both sides
of the plate and tighten up
the screws.
10. Install the upper cover plate.
 Tighten up the screws
around the upper cover
plate.
Model: FLEXX36HP230V1AO
Removal of compressor/gas liquid separator
NOTE: Before removing the compressor/gas liquid separator, make sure there is no refrigerant in the pipeline and power is cut off.
Step
Work instruction
1. Remove wires.
 Loosen the securing
screws of the wires with a
screwdriver.
 Remove the wires.
NOTE: When removing
the wires, mark the wire
terminals corresponding
to their color so as to
avoid misconnection.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
