Gree FLEXX Series Service Manual

GREE DC INVERTER HEAT PUMP CONDENSING UNIT
78

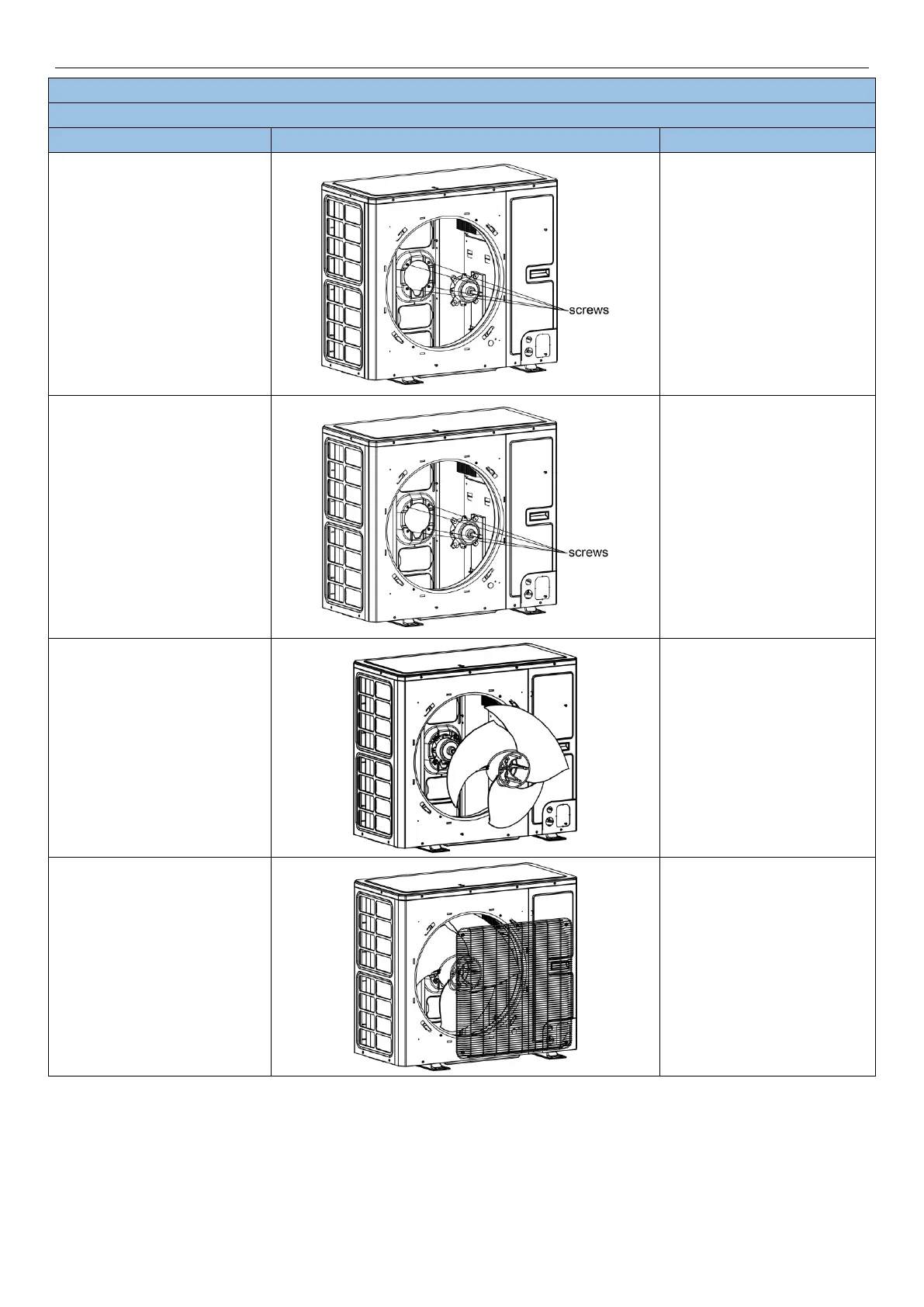

Removal of fan and motor
Note: Before removing the fan, make sure power is cut off.
Step
Work instruction
3. Remove motor.
 Use a screwdriver to
unscrew the bolt of motor.
NOTE: Motor wire should
be first removed from the
electric box.
4. Install the motor.
 Replace with a new motor.
Then tighten up the screw
bolt.
5. Install the fan.
 Install the fan in place. Put
on the gasket and use a
wrench to secure the
screw nut.
NOTE: After installing the
fan, turn the fan by hand to
see if it can run normally. If
not, please check for the
reason.
6. Install the grill.
 After replacing the motor,
use a screwdriver to
tighten up the screw bolt
that secures the motor.
Arrange the wires
according to the wiring
diagram.

Gree FLEXX Series Specifications

General

Type	Heat Pump
Series	FLEXX
SEER	Up to 20
HSPF	Up to 10
Refrigerant	R410A
Heating Operation Range	-22°F to 75°F
Cooling Operation Range	5°F to 122°F
Operating Temperature Range (Heating)	-22°F to 75°F
Operating Temperature Range (Cooling)	5°F to 122°F
Energy Efficiency Ratio (EER)	Up to 12.5
Dimensions (Outdoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
Compressor Type	Inverter
Power Supply	208/230V, 1Ph, 60Hz
Noise Level	As low as 55 dB(A)
