GREEN INSTRUMENTS Maritime G6100 User Manual

Menu Structure
Page 20 of 111

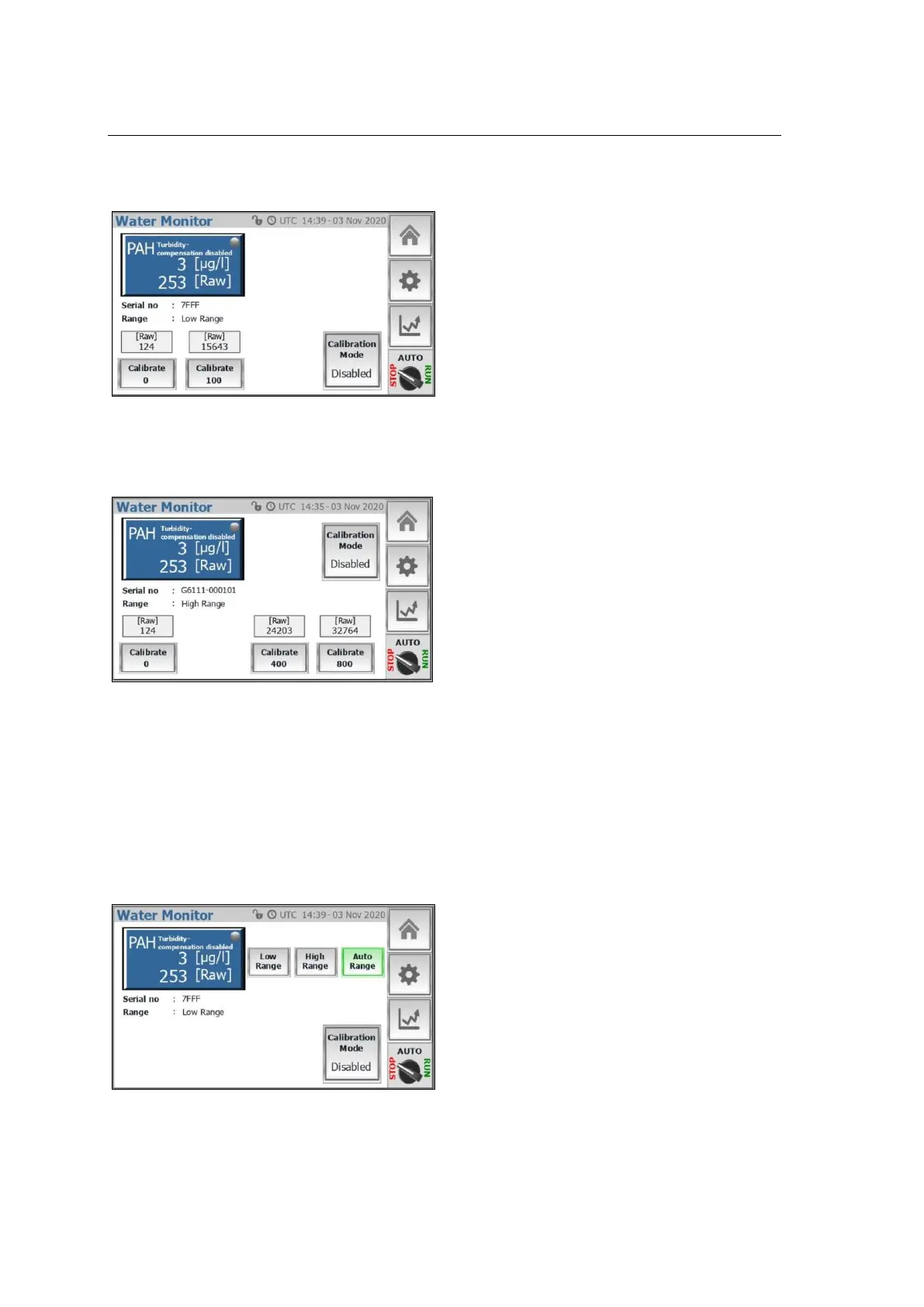

G6110/G6111 PAH LOW RANGE
Figure 4-3: G6110/G6111 PAH Low Range
G6110/G6111 PAH HIGH RANGE
Figure 4-4: G6110/G6111 PAH High Range
G6110 PAH DUAL RANGE
On dual range systems: It is important to calibrate both low and high range. It is possible
to switch between the ranges on the PAH calibration page. Please refer to Figure 4-5 to
Figure 4-7.
When the sensor has been calibrated, it is important to re-activate the auto range mode.
Figure 4-5: G6110 PAH Dual Range in Operation Mode
