Spare Parts

Page 72 of 111

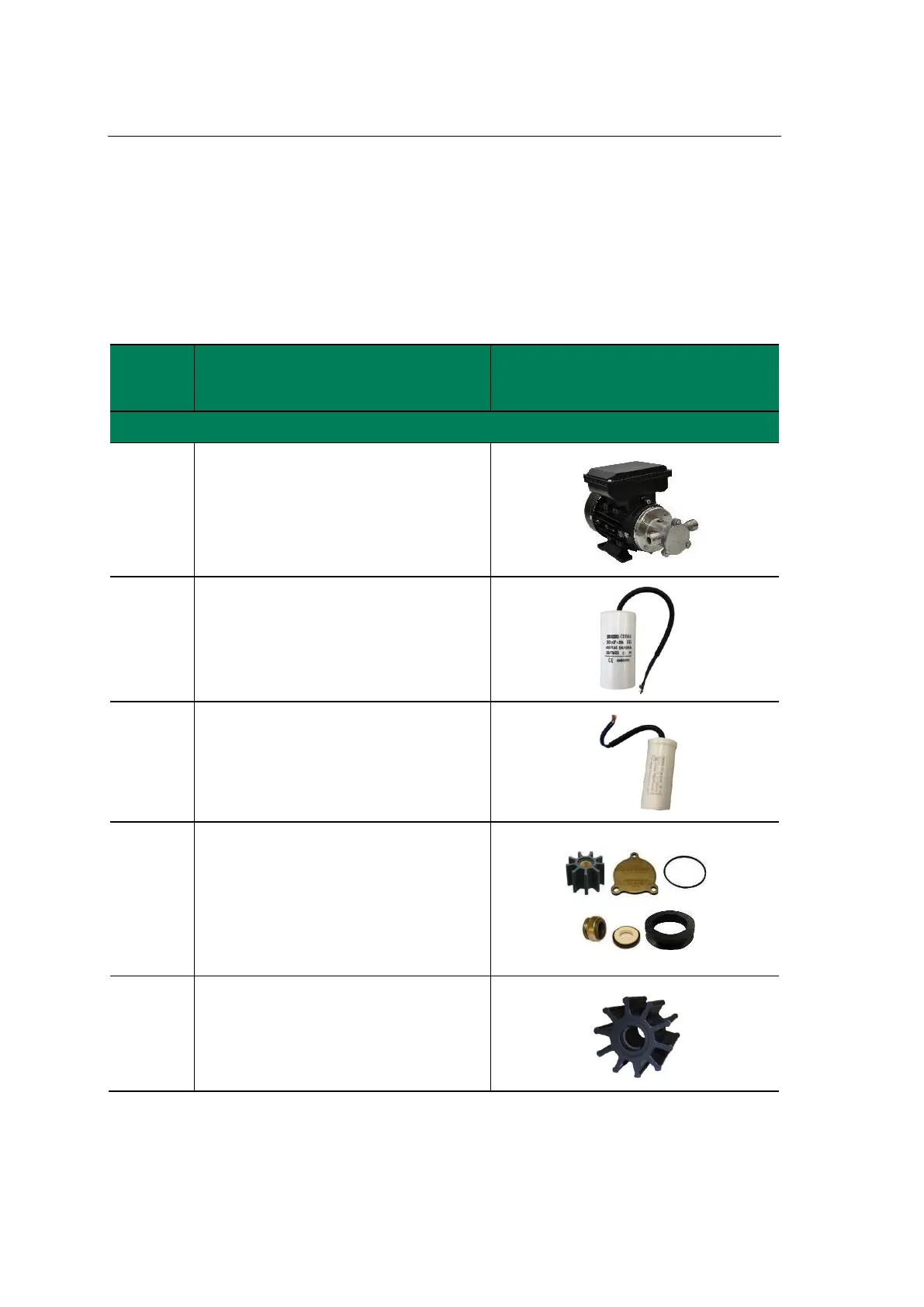

13 Spare Parts

Spare parts are not included in the standard delivery. Spare parts can be ordered when

necessary. When ordering spare parts, mention the serial number of the system.

Part No.

Part Description

The specific appearance of the spare parts is

subject change without notice; the function

however will not change

WMR/WMP/WMPH/TYPE A

02589

Pump - Type A

103125

Start Capacitor – Pump Type A

103126

Run Capacitor – Pump Type A

03409

Pump Spare Part Kit Type A

•

1 x pump Impeller

•

1 x shaft seal

•

1 x end cover

•

1 x O-ring for end cover

•

1 x Shaft V-ring

02607

Pump Impeller

Type A Ø 40 mm
