Menu Structure
Page 28 of 111
10. Repeat step 9 one more time.

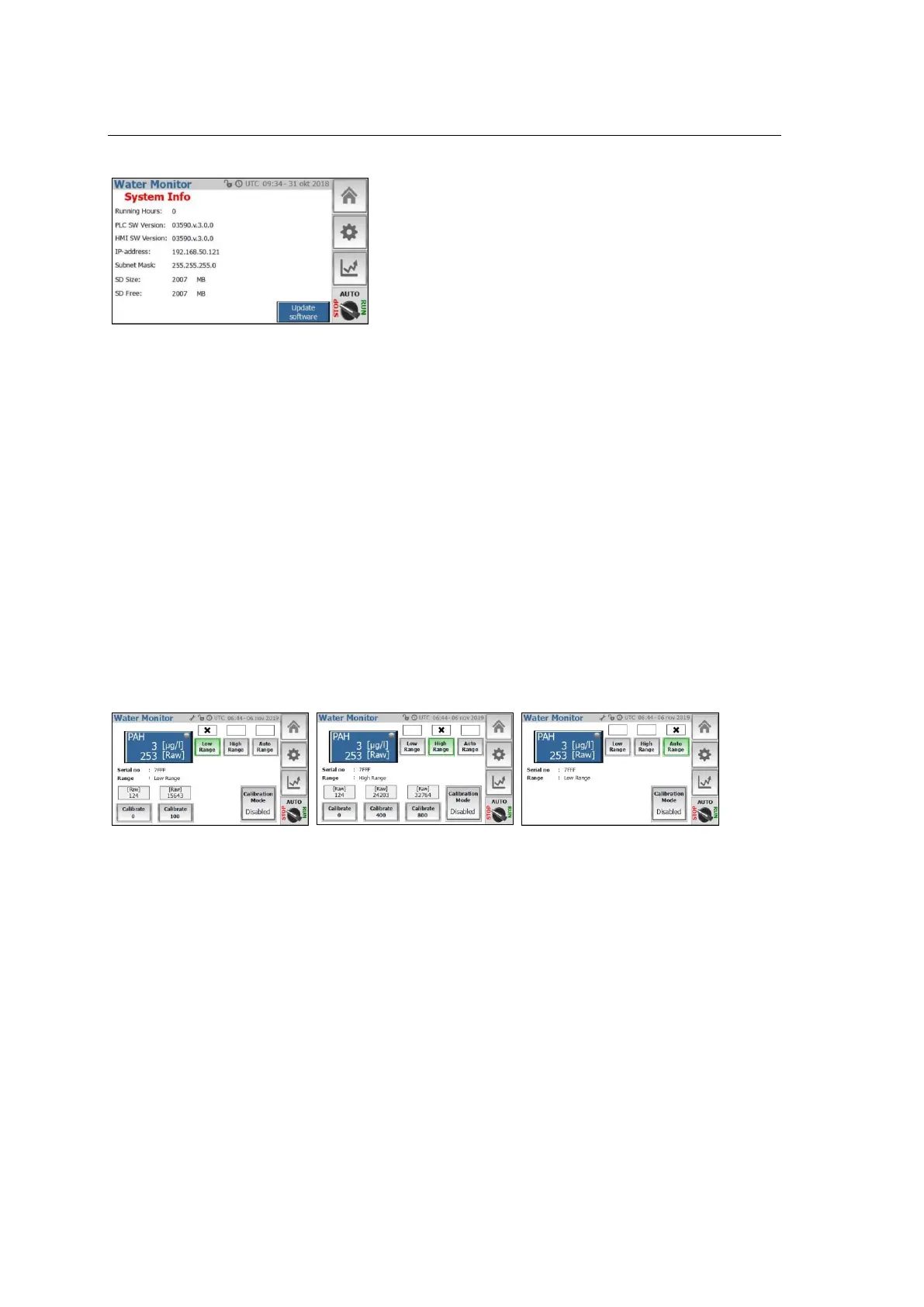

11. Go to the “System Info” screen and check that the software version for PLC and HMI
has been updated.
12. Check the system IP-address corresponds to the IP address you noted down earlier. If
it does not, change it to the IP address you noted down earlier. Refer to section 4.2.5.
Note: Step 13 to 21 are only relevant if system is configured with a G6110 PAH module
13. Go to Setting—> Setup —> Shift User
• User: admin
• Password: green
14. Go to Home screen —> Press PAH
15. Select the desired range setting by pressing the required range box/field.
16. Press the desired range button. The button should turn green after pressing the button.
17. Below is an overview of each range configuration.
18. Now go to —> Settings —> Setup —> Shift User
• User: service
• Password: 1234
19. Now go to —> Settings —> Setup —> Signal Setup —> PAH Setting
20. Enter the calibration data that you noted down earlier, or which is stated in the Test
and configuration Sheet that was supplied with the sensor.
21. If calibration data is not available, carry out a new calibration or contact the equipment
supplier.
