Water Monitoring System

Ver.5.0.1 – Revision August 2022 Page 77 of 111

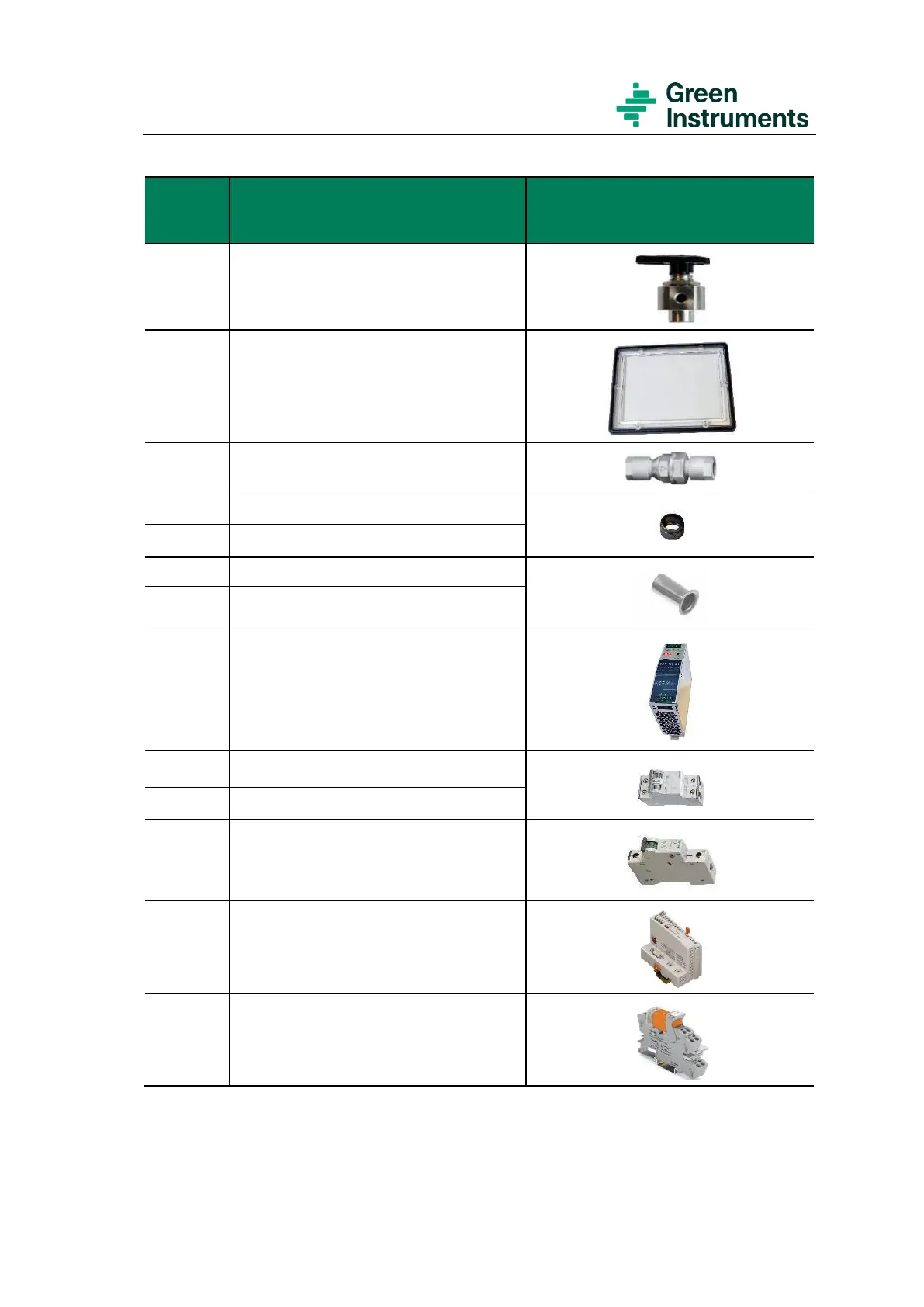

Part No.

Part Description

The specific appearance of the spare parts is

subject change without notice; the function

however will not change

00358

Selector Valve Sample/Test Gases

02336

Inspection Window

02579

Non-Return Valve

02438

Compression Ferrule OD 10 Mm

02543

Compression Ferrule OD 12mm

02430

Stiffener Sleeve SO50003-10-08 10/8mm

02507

Stiffener Sleeve 12/10mm

02237

Power Supply 24V

00505

Fuse Automatic Fuse C 6KA 4A 2P

02197

Fuse Automatic 6A

03630

Automatic Fuse 3A 24V DC

03552

Bus-Coupler Modbus RTU

03631

Relay

Figure 1-1: Program Menu Structure of the Water Monitoring System2
Table of Contents3
Introduction7
About this Manual7
Inquiries and Feedback8
About the System8
Specifications10
Safety Aspects15
Menu Structure18
Home18
Figure 4-1: Menu Structure18
Pah19
Figure 4-2: Home Page19
Figure 4-3: G6110/G6111 PAH Low Range20
Figure 4-4: G6110/G6111 PAH High Range20
Figure 4-5: G6110 PAH Dual Range in Operation Mode20
Turbidity, Ph/Temperature or Flow21
Figure 4-6: G6110 Dual Range - Low Range During Calibration21
Figure 4-7: G6110 Dual Range - High Range During Calibration21
Figure 4-8: G6111 PAH Dual Range21
Figure 4-9: Turbidity Page21
Settings22
Setup22
Figure 4-10: Settings Page22
Figure 4-11: Setup Page23
Figure 4-12: Timer Setup Page23
Figure 4-13: Signal Setup Page - Low Range PAH Setting24
Figure 4-14: Signal Setup Page - Flow Setting24
Alarms25
External Communication Watchdog25
Figure 4-15: Alarm Page25
Logging26
IP Address Configuration26
Figure 4-16: Logging Page for Exporting the Logged Data26
Figure 4-17: System Info Page26
Software Update27
Trend Selection29
Trend Graph29
Run29
Figure 4-18: Trend Page29
Figure 4-19: Trend PAH Page29
Commissioning30
Wmr31
Wmrtu31
Wmp32
Wmph34
Validation & Calibration35
Validation/Calibration of the Ph Module36
Figure 6-1: Ph Validation/Calibration Procedure36
Validation/Calibration of the Turbidity Module37
Validation/Calibration of the PAH Module39
PAH Module Validation Methods39
Figure 6-2: PAH Validation/Calibration Procedure39
PAH Sensor Ranges40
Before Validation/Calibration40
Table 6-1: Validation/Calibration Liquid Selection41
Table 6-2: Validation Tolerance Table41
Validation of G6110 PAH Module42
Figure 6-3: G6110 PAH Sensor, Measuring Chamber & Calibration Chamber & Bushing & Bushing Tool42
Figure 6-4: PAH Chamber Bushing Placement42
Validation of G6111 PAH Module43
Figure 6-5: G6111 PAH Sensor, PAH Measuring Chamber & PAH Calibration Chamber43
Calibration of the Pah Module44
Table 6-3: Validation/Calibration Liquid Selection44
Storing a Calibration Point of G6110 PAH Module45
Figure 6-6: G6110 PAH Sensor, Measuring Chamber & Calibration Chamber & Bushing & Bushing Tool45
Figure 6-7: PAH Chamber Bushing Placement45
Storing a Calibration Point of G6111 PAH Module46
Figure 6-8: G6111 PAH Sensor, PAH Measuring Chamber & PAH Calibration Chamber46
Factory Calibration47
Services48
Factory Calibration & Sensor Replacement48
G6110 Pah48
G6111 Pah48
Turbidity49
Ph/Temperature49
Routine Maintenance50
Inspection & Cleaning53
General Notes53
Figure 8-1: Planned Maintenance Program for the Water Monitoring System53
Wmp54
Wmph54
Expected Lifetime55
Pah55
G6110 Pah55
G6111 Pah55
Turbidity56
Ph/Temperature56
Figure 9-1: Wire Connections for Emitter, Receiver and Wiper Unit56
Hose Pump58
Figure 9-2: Squeezing the Hose58
Storage & Handling59
Storage59
Long Term Inactivity59
Impeller Pump60
Ph Electrode60
Calibration Kit60
Return of Equipment61
Troubleshooting62
General62
Pah66
Figure 12-1: Ma Measurement Using Multimeter - G6111 PAH Sensor67
Table 12-1: Analog Diagnostic Table - G6111 PAH Sensor67
Table 12-2: Alarm Handling Table - G6111 PAH Sensor67
Ph/Temperature69
Figure 12-2: Ph Negative Offset - Reading too Low70
Figure 12-3: Ph Positive Offset - Reading too High70
Spare Parts72
Maintenance Intructions92
