Grizzly G1033X User Manual

Model G1033/X/Z (Mfd. Since 02/19)
-41-
Using Wood Blocks
Items Needed Qty
Phillips Screwdriver #2 ...................................... 1
Hex Wrench 3mm, 5mm .................................... 1
Wrench or Socket 10mm ................................... 1
2x4 6' Long ........................................................ 1
Feeler Gauge Set .............................................. 1
To use wood blocks to check/adjust heights:
1. Build wood blocks by cutting a straight 6-foot-
long 2x4 in half.
Note: Having the wood blocks at an even
height is critical to the accuracy of your
overall adjustments. For best results, make
the 2x4 square with a jointer and table saw
before cutting it in half.
2. DISCONNECT MACHINE FROM POWER!
3. G1033 & G1033Z Only: Make sure knives
are set to correct height (refer to Adjusting/
Replacing Knives on Page 26 for detailed
instructions).
4. Lower bed rollers below table surface (refer
to Bed Roller Height on Page 25 for detailed
instructions).
5. Place wood blocks along sides of table, as
illustrated in Figure 55.
36"
Figure 55. Wood blocks properly positioned on
the planer table.

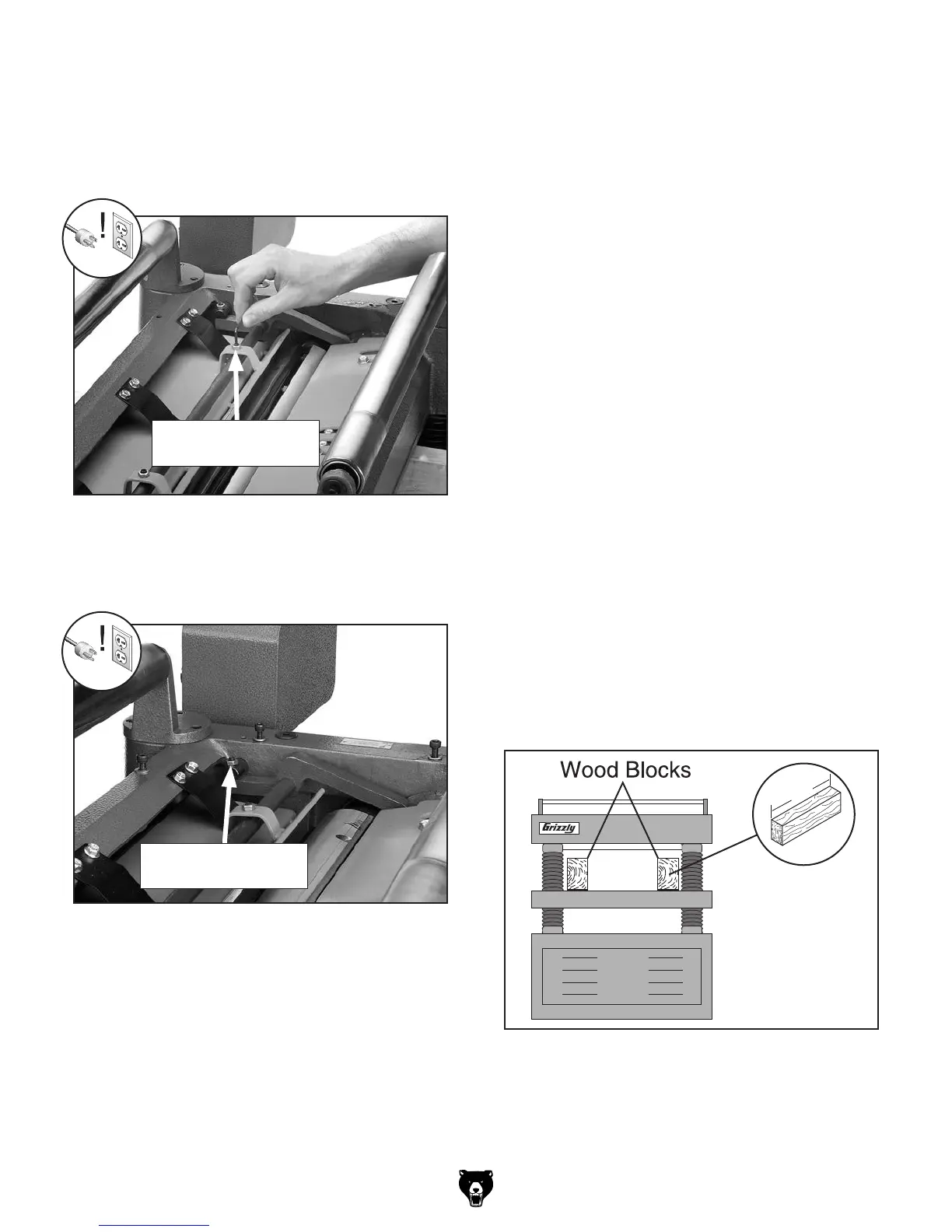

Figure 53. Adjusting chip breaker height.
Adjustment Jam Nut
& Set Screw
12. Using same "0" reference on Rotacator
dial from Step 5, perform similar steps as
described previously to adjust height of chip
breaker to its recommended specification
given at beginning of this subsection. The
adjustment controls are shown below.
13. Repeat Step 12 for pressure bar height
adjustment. The adjustment controls are
shown below.
Figure 54. Location of pressure bar height
adjustment jam nut and set screw.
Adjustment Jam Nut
& Set Screw
14. Re-install belt cover, top cover, drive chain
cover, and dust hood.
