-42-
Model G1033/X/Z (Mfd. Since 02/19)
6. Remove dust hood, top cover, belt cover, and
drive chain cover.
7. Raise table until wood blocks get close to
cutterhead.
8. Use belt to rotate cutterhead and continue
raising table until blocks just barely touch
cutterhead knife/insert at its lowest point of
rotation (BDC).
9. Lock table in place. Upward pressure of wood
blocks will hold infeed and outfeed rollers,
chip breaker, and pressure bar at same level
as knife/insert at BDC.
10. Loosen jam nuts and set screws on each side
of infeed roller (see Figure 56).
11. Using a feeler gauge, adjust set screw so
it is 0.040" from roller bushing block (see
Figure 56), then tighten jam nut. Repeat on
other side of infeed roller.
12. Repeat Steps 10–11 with outfeed roller, only
adjust the gaps to 0.020".

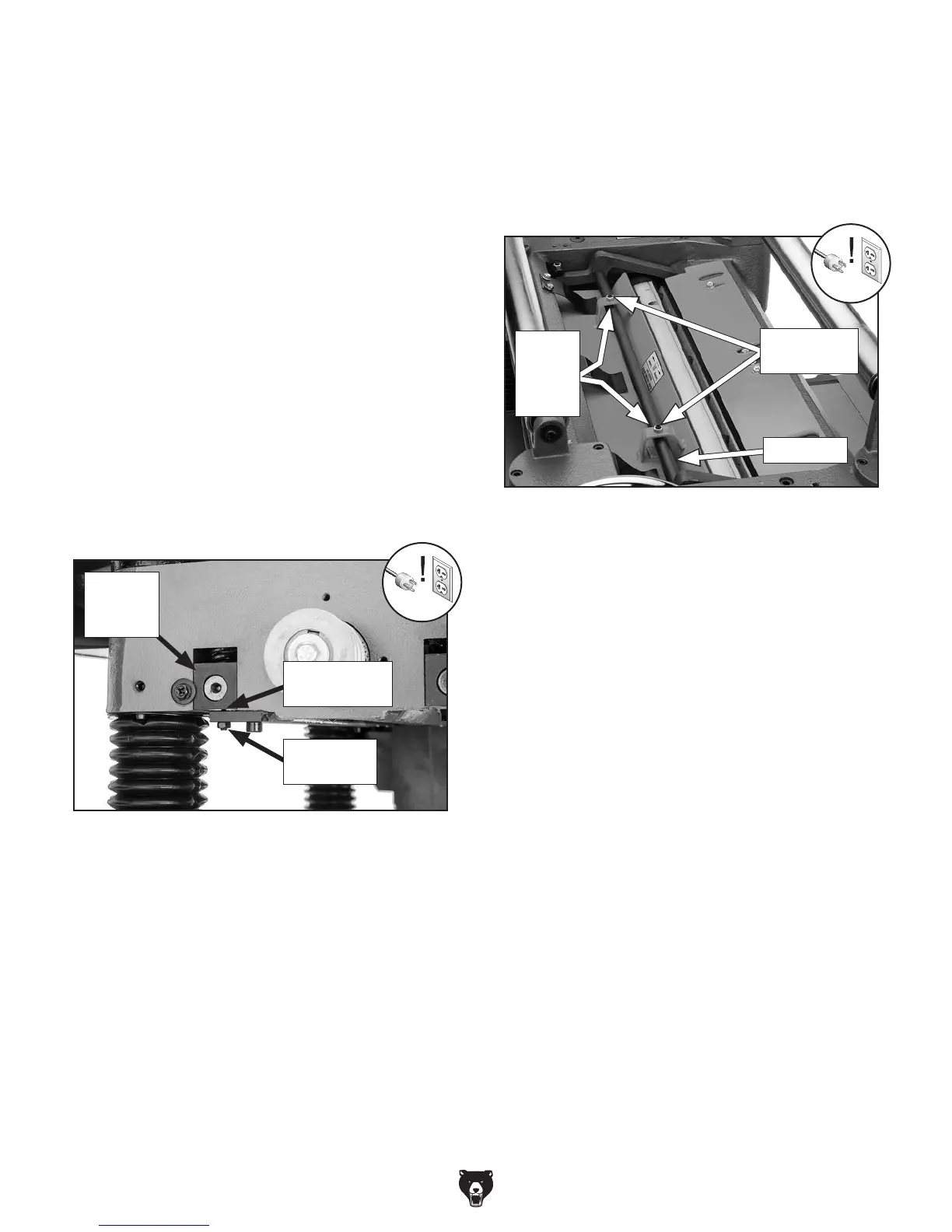

Figure 56. Example of feeler gauge location for
adjusting infeed roller height when using wood
blocks (one of two locations shown).
Roller
Bushing
Block
Insert Feeler
Gauge Here
Jam Nut &
Set Screw
13. Loosen jam nuts and set screws on each side
of chip breaker (see Figure 57).
14. Using a feeler gauge, adjust set screw so
chip breaker is 0.040" from cross bar (see
Figure 57), then tighten jam nut. Repeat on
other side of chip breaker.
15. Re-install belt cover, top cover, drive chain
cover, and dust hood.
Figure 57. Feeler gauge locations for adjusting
chip breaker height when using wood blocks.
Cross Bar
Jam Nut &
Set Screw
Insert
Feeler
Gauge
Here
