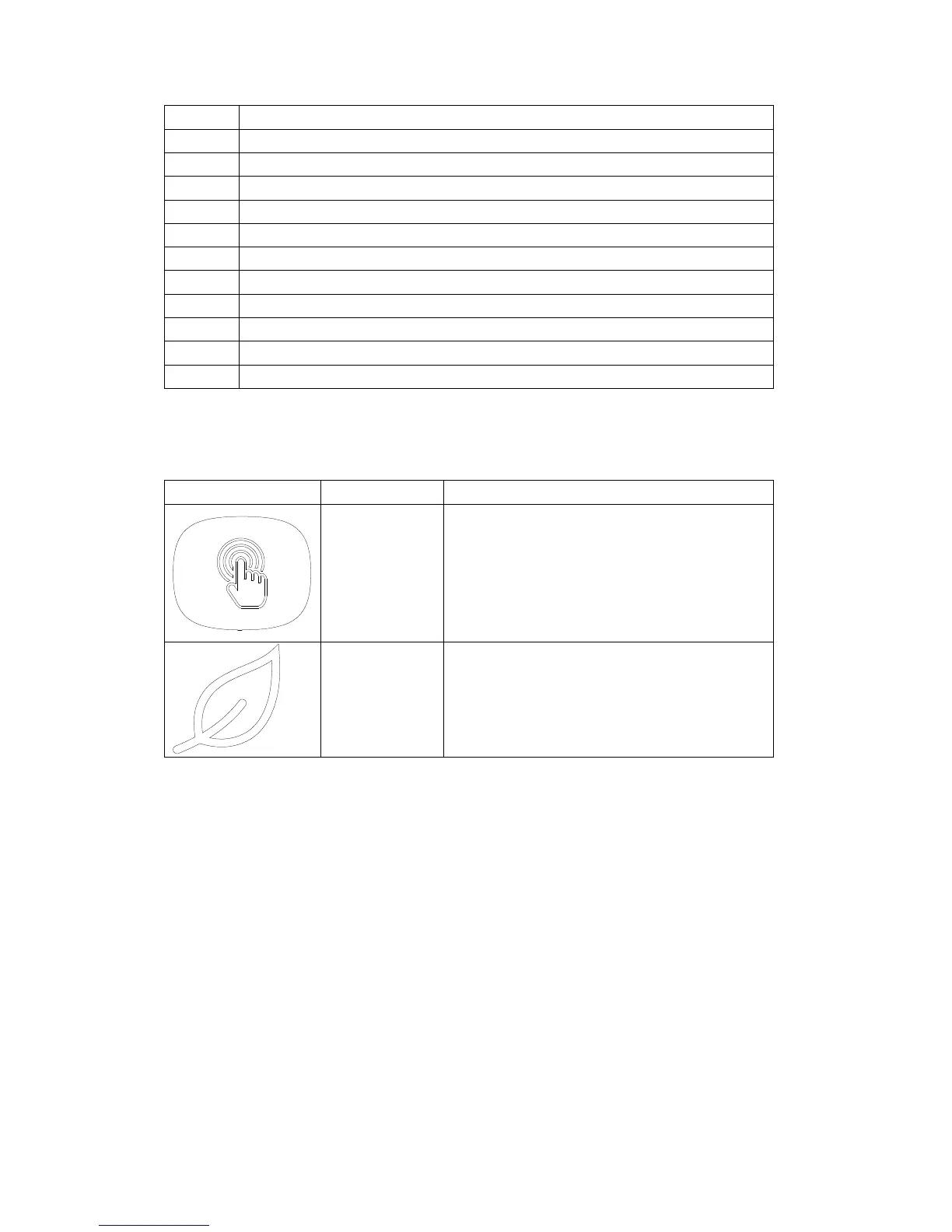

13
A
Cover
B
DC SWITCH
C
PV INPUT +
D
LED
E
OLED
F
TOUCH BUTTON
G
DRM PORT
H
AC OUTPUT
I
VENTILATION VALVE
J
PV INPUT-
K
USB PORT
L
COM PORT
Symbol on the inverter
Symbol
Description
Explanation
Touch symbol
Touch button.We can switch the OLED display
and set parameter by touching.
Inverter status
symbol
Indicates inverter operation status:
Red:Fault.
Green:Nomal.
Red leaf flash:Warning or DSP Programming.
Green leaf flash:M3 Programming.
3.2 Type label
The type labels provide a unique identification of the inverter (The type of product,
Device-specific characteristics, Certificates and approvals). The type labels are on the
left-hand side of the enclosure.
