Growatt MIN 5000 TL-X User Manual

9
2 Safety
2.1 Intended Use
The unit converts the DC current generated by the photovoltaic (PV) modules to grid-compliant
alternating current and performs single-phase feed-in into the electricity grid.MIN
2500TL-X,MIN 3000TL-X,MIN 3600TL-X,MIN 4200TL-X,MIN 4600TL-X,MIN 5000TL-X
inverters are built according to all required safety rules. Nevertheless, improper use may cause
lethal hazards for the operator or third parties, or may result in damage to the units and other
property.

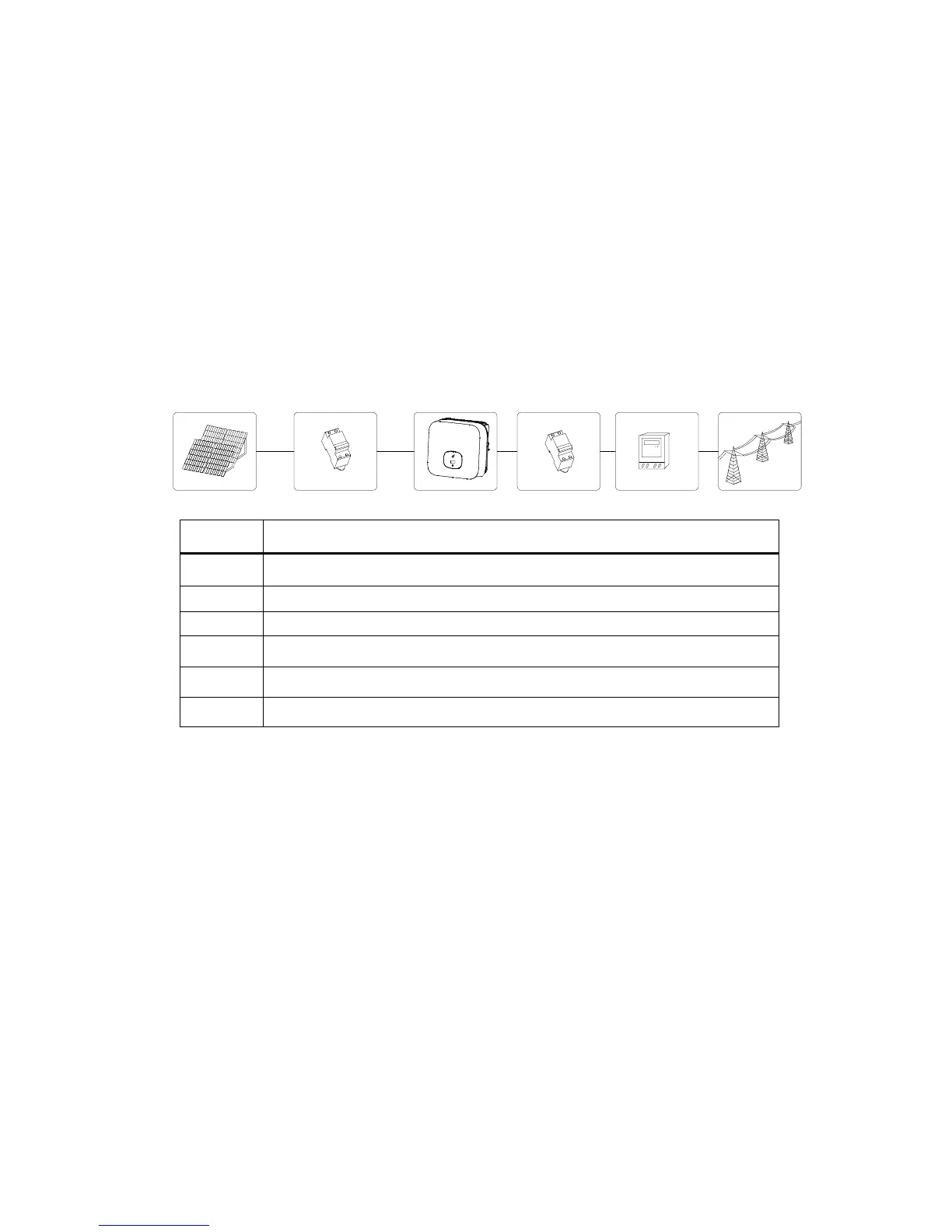

Principle of a PV plant with this MIN TL-X single-phase inverter
Position
Description
A
PV modules
B
DC load circuit breaker
C
Inverter
D
AC load circuit breaker
E
Energy meter
F
Utility grid
The inverter may only be operated with a permanent connection to the public power grid. The
inverter is not intended for mobile use. Any other or additional use is not considered the intended
use. The manufacturer/supplier is not liable for damage caused by such unintended use. Damage
caused by such unintended use is at the sole risk of the operator.
PV modules Capacitive Discharge Currents
PV modules with large capacities relative to earth, such as thin-film PV modules with cells on a
metallic substrate, may only be used if their coupling capacity does not exceed 1uF. During
feed-in operation, a leakage current flows from the cells to earth, the size of which depends on the
manner in which the PV modules are installed (e.g. foil on metal roof) and on the weather (rain,
snow). This "normal" leakage current may not exceed 50mA due to the fact that the inverter would
otherwise automatically disconnect from the electricity grid as a protective measure.
2.2 Qualification of skilled person
This grid-tied inverter system operates only when properly connected to the AC distribution
network. Before connecting the MIN TL-X to the power distribution grid, contact the local power

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
