Growatt MIN 5000 TL-X User Manual

15

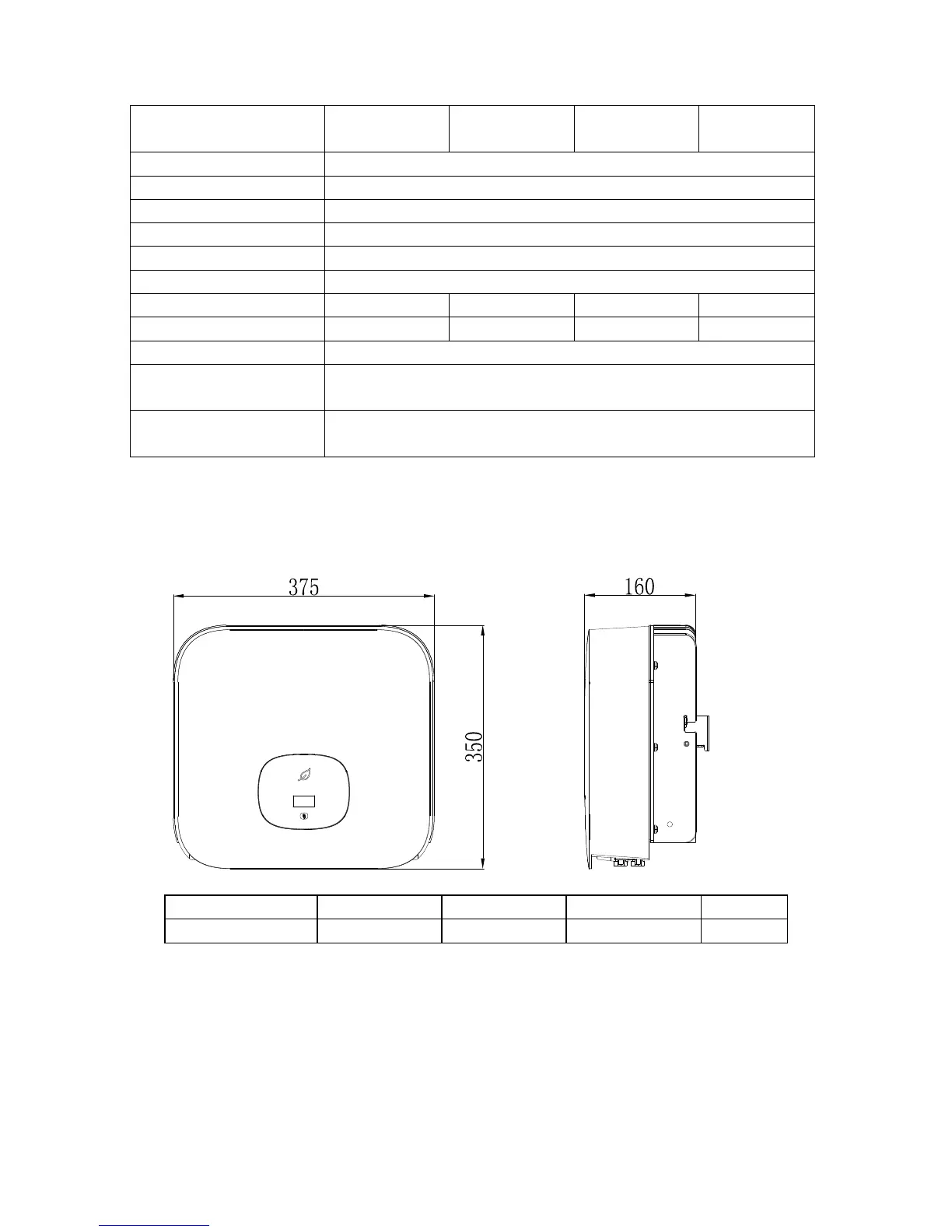

3.3 Size and weight
Dimensions and weight
Model
Height (H)
Width (W)
Depth (D)
Weight
MIN 2500-6000 TL-X
350mm 13.8inch
375mm 14.8inch
160mm 6.3inch
10.8kg
3.4 Storage of Inverter
If you want to storage the inverter in your warehouse, you should choose an
appropriate location to store the inverter.
 The unit must be stored in original package and desiccant must be left in the
Model Name
MIN 4200 TL-X
MIN 4600 TL-X
MIN 5000 TL-X
MIN 6000
TL-X
Max input DC voltage
550V
Max input DC current
12.5A/12.5A
Start voltage
100V
MPP voltage range
80V~550V
AC nominal voltage
230V
AC grid frequency
50/60 Hz
Max. apparent power
4200VA
4600VA
5000VA
6000 VA
AC normal output current
18.2A
20A
21.7A
26A
Power factor
0.8leading…0.8lagging
Environmental Protection
Rating
IP65
Operation Ambient
temperature
-25...+60℃ (-13...+ 140°F)
with derating above 45°C（113°F）

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
