Growatt MIN 5000 TL-X User Manual

28
5.2 mm² 10AWG
60m
50m
42m
Conductor cross
section
Max. cable length
MIN 4200 TL-X
MIN 4600 TL-X
MIN 5000 TL-X
MIN 6000 TL-X
5.2 mm² 10AWG
28m
26m
24m
6.6 mm² 9AWG
36m
33m
30m

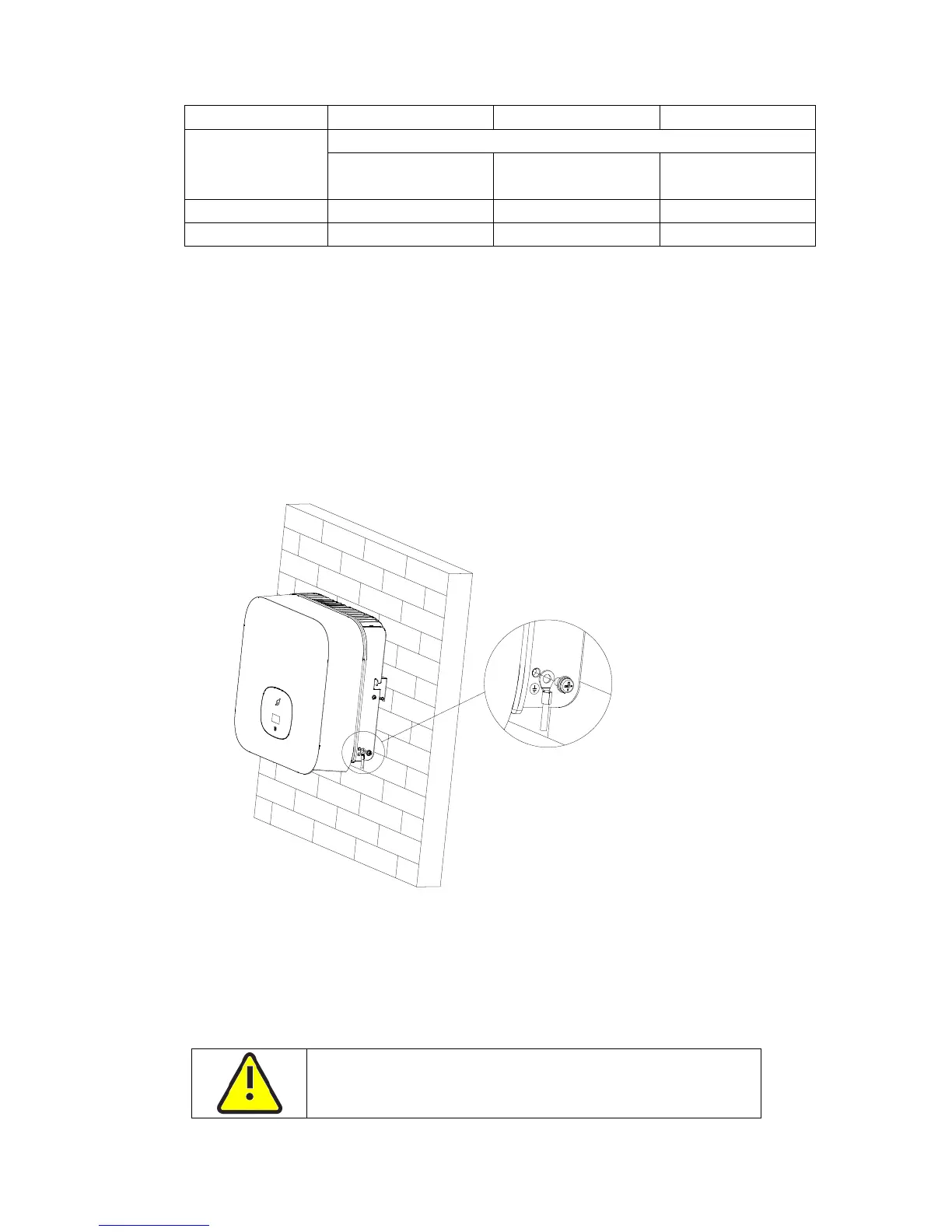

6.3 Connecting the second protective conductor
In some installation countries, a second protective conductor is required to prevent a touch current
in the event of a malfunction in the original protective conductor.For installation countries falling
within the scope of validity of the IEC standard 62109, you must install the protective conductor
on the AC terminal with a conductor cross-section of at least 10 mm²Cu.Or Install a second
protective conductor on the earth terminal with the same cross-section as the original
protective conductor on the AC terminal. This prevents touch current if the original protective
conductor fails.
6.4 Connecting the PV Array (DC input)
6.4.1 Conditions for DC Connection
The inverter shall be used with IEC 61730 Class A rating PV module.
Please use the same brand male and female PV connectors.

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
