30
voltage of the inverter.
WARNING
Improper operation during the wiring process can cause fatal injury to operator or
unrecoverable damage to the inverter. Only qualified personnel can perform the
wiring work.
Please dont connect PV array positive or negative pole to the ground, it could
cause serious damages to the inverter
Check the connection cables of the PV modules for correct polarity and make
sure that the maximum input voltage of the inverter is not exceeded.

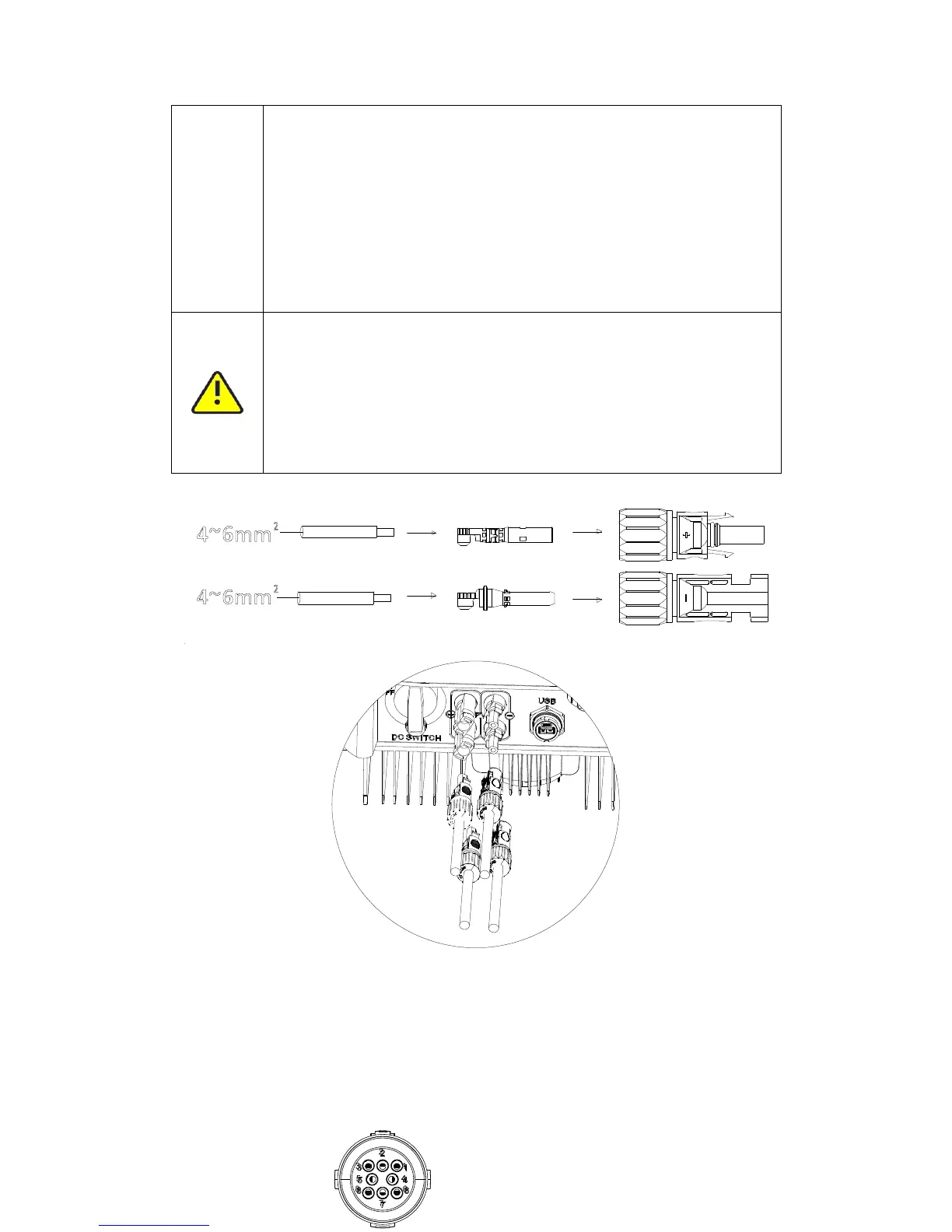

Connection of PV terminal
6.5 Connecting signal cable
This series inverter has one 8 Pin signal connector(There are two connectors for
AS/NZS4777 model ) . Signal Cable Ports:

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MIN 5000 TL-X and is the answer not in the manual?

Growatt MIN 5000 TL-X Specifications

General IconGeneral
Max. DC Voltage550 V
Nominal AC Output Power5000 W
Max. Efficiency98.4%
MPPT Efficiency99.9 %
Weight10.8 kg
Protection RatingIP65
Number of MPP Trackers2
Max. Input Current per MPPT11 A
Max. AC Power5000 W
Nominal AC Voltage230 V
AC Voltage Range180 V - 280 V
Nominal Grid Frequency50 Hz / 60 Hz
Total Harmonic Distortion<3%
DC SwitchYes
Protection ClassClass I
TopologyTransformerless
CoolingNatural convection
Max. PV Input Power6000 W
Max. PV Input Voltage550 V
Max. Input Current22 A
AC Output Voltage230 V
AC Output Frequency50 Hz / 60 Hz
Peak Efficiency98.4%
Operating Temperature Range-25°C to 60°C
Power Factor Adjustment Range0.8 leading - 0.8 lagging
Dimensions (W x H x D)375 x 350 x 160 mm
