Growatt MIN 5000 TL-X User Manual

32
6.6 Grounding the inverter
The inverter must be connected to the AC grounding conductor of the power
distribution grid via the ground terminal (PE) .
WARNING
Because of the transformerless design, the DC positive pole and DC negative
pole of PV arrays are not permitted to be grounded.

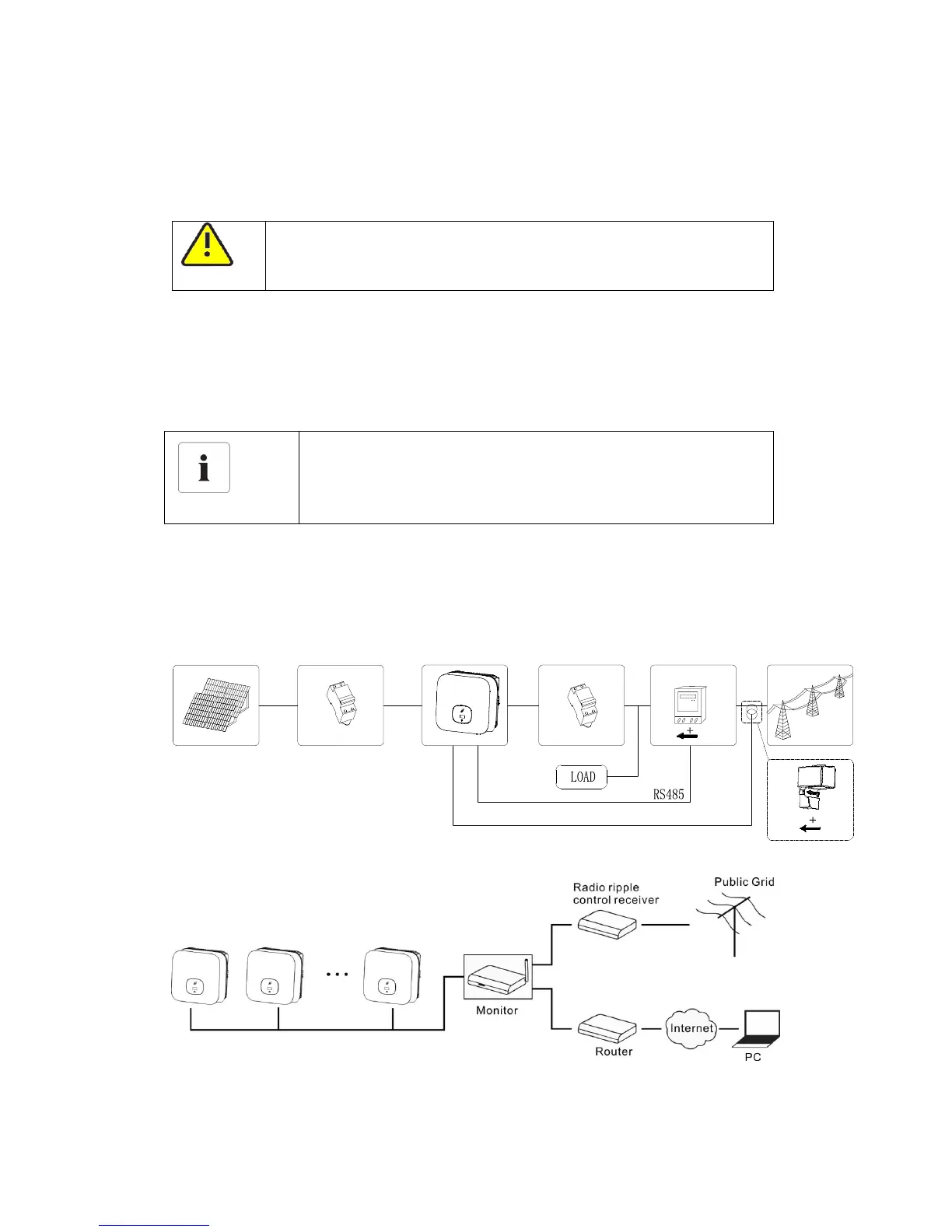

6.7 Active power control with smart meter , CT or ripple
control signal receiver
Information
The position of export limitation CT or Meter must between the
Inverter & Load and gird.
This series inverter has integrated export limitation functionality. To use this function,
you can connect smart meter or CT. The smart meter model is Eastron
SDM230-Modbus. The CT Model is TOP 90-S10/SP4(LEM).The primary aperture is
10mm,output cable length is 5m . The arrow on the CT must pointing towards the
inverter.
Active power control with a ripple control signal receiver.

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
