Growatt MIN 5000 TL-X User Manual

38
Single touch to switch display or make the number +1.
Double touch to confirm you setting.

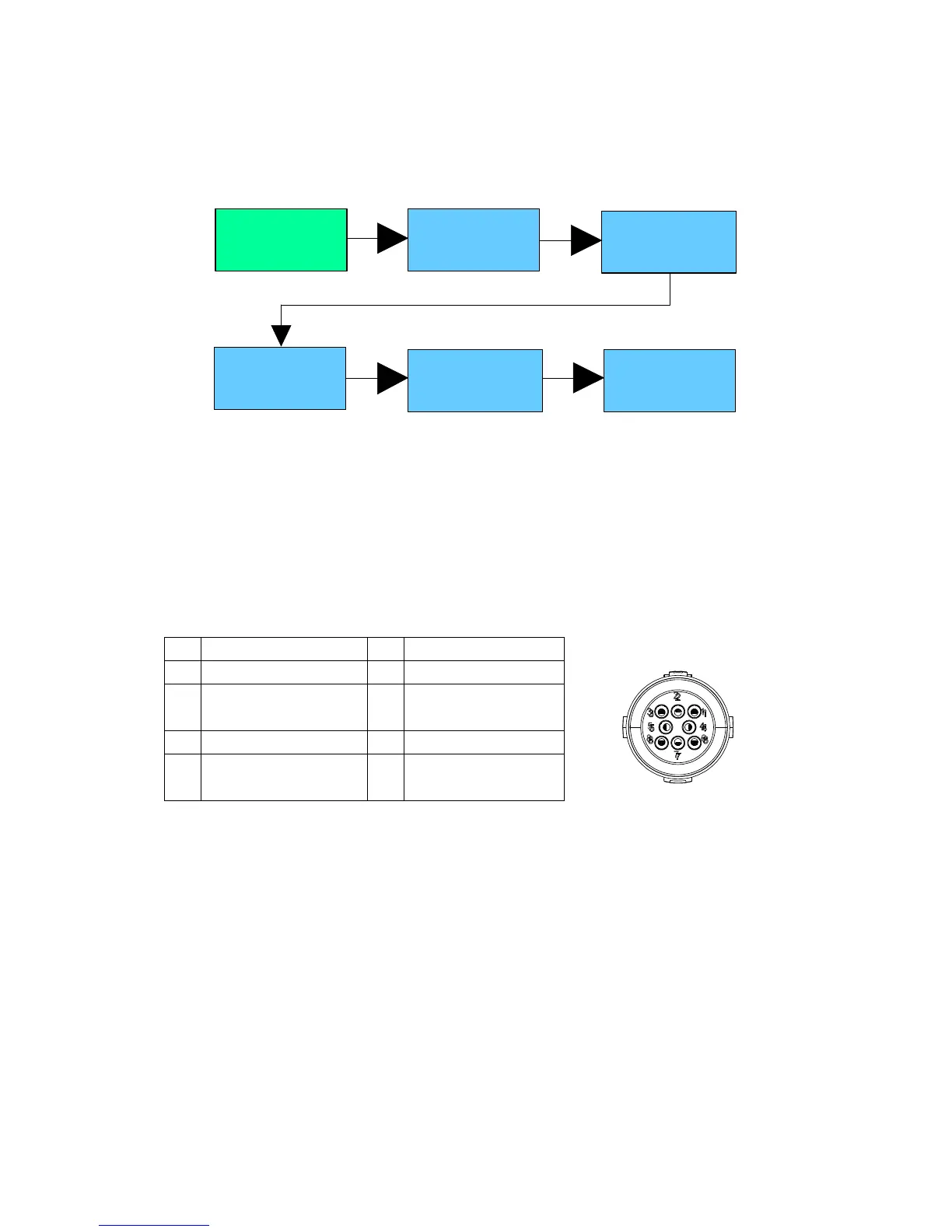

Reset factory
NO
YES
Set OK
Set parameter
General
Advanced
Password
123
7.3 Communications
7.4 RS485
This series inverter provides two RS485 ports. You can monitor one or more inverters
by RS485.Another RS485 port is for smart meter(Export limitation functionality.).
7.5 USB-A
USB-A port is mainly for connecting monitor or firmware updage：
Through USB connection,we can connect external optional monitor ,for
example :Shine WIFI-X,Shine 4G-X, Shine LAN-X,ect.
And also you can quickly update the software by U disk.
We can monitor as below:
Make sure the △ on the front side, then insert the monitor,
fasten the screw.
NO.
Definition
NO.
Definition
1
+12V Power Supply（<1W）
2
COM
3
RS485A1 signal for
communication
4
RS485B1 signal for
communication
5
CT-P
6
CT- N
7
RS485A2 signal for
Smart Meter
8
RS485B2 signal for Smart
Meter

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
