Growatt MIN 5000 TL-X User Manual

17

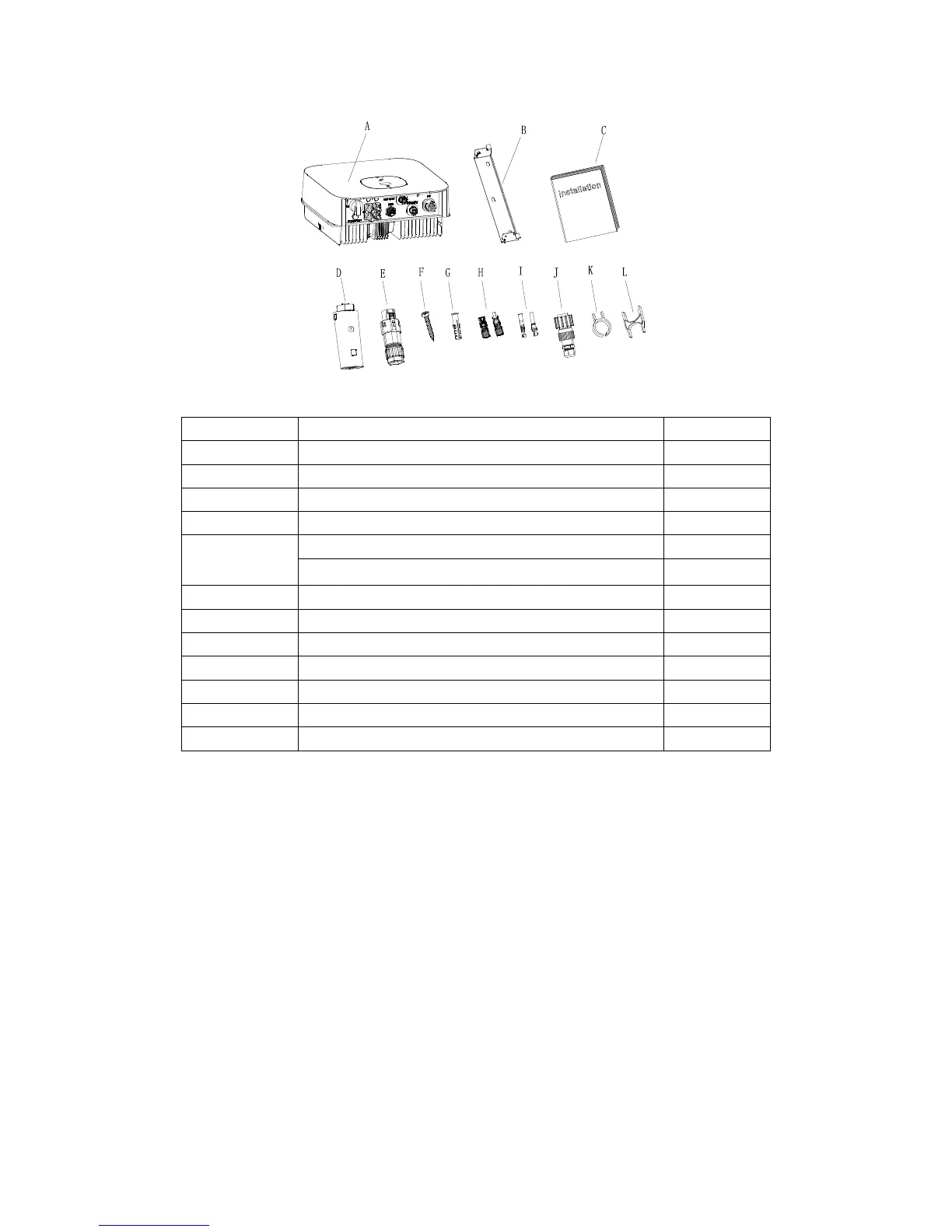

Object
Description
Quantity
A
Inverter
1
B
Mounting bracket
1
C
Quick Guide
1
D
Monitor(Optional)
1
E
Signal connector
1
DRED connector (only for Australia)
1
F
Self-tapping screws
3
G
Plastic expansion pipe
3
H
PV+/PV- terminal
2/2
I
PV+/PV- metal terminal
2/2
J
AC connector
1
K
Uninstall PV tool
1
L
Uninstall signal or AC connector tool
1

Growatt MIN 5000 TL-X Specifications

General

Max. DC Voltage	550 V
Nominal AC Output Power	5000 W
Max. Efficiency	98.4%
MPPT Efficiency	99.9 %
Weight	10.8 kg
Protection Rating	IP65
Number of MPP Trackers	2
Max. Input Current per MPPT	11 A
Max. AC Power	5000 W
Nominal AC Voltage	230 V
AC Voltage Range	180 V - 280 V
Nominal Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
DC Switch	Yes
Protection Class	Class I
Topology	Transformerless
Cooling	Natural convection
Max. PV Input Power	6000 W
Max. PV Input Voltage	550 V
Max. Input Current	22 A
AC Output Voltage	230 V
AC Output Frequency	50 Hz / 60 Hz
Peak Efficiency	98.4%
Operating Temperature Range	-25°C to 60°C
Power Factor Adjustment Range	0.8 leading - 0.8 lagging
Dimensions (W x H x D)	375 x 350 x 160 mm
