25
unit for each inverter in order to ensure that the inverter can be safely disconnected
under load.
We suggest you choice the AC breaker rating current in this table:
MIN 2500 TL-X
16A/230V
MIN 3000 TL-X
16A/230V
MIN 3600 TL-X
20A/230V
MIN 4200 TL-X
25A/230V
MIN 4600 TL-X
25A/230V
MIN 5000 TL-X
32A/230V
MIN 6000 TL-X
32A/230V

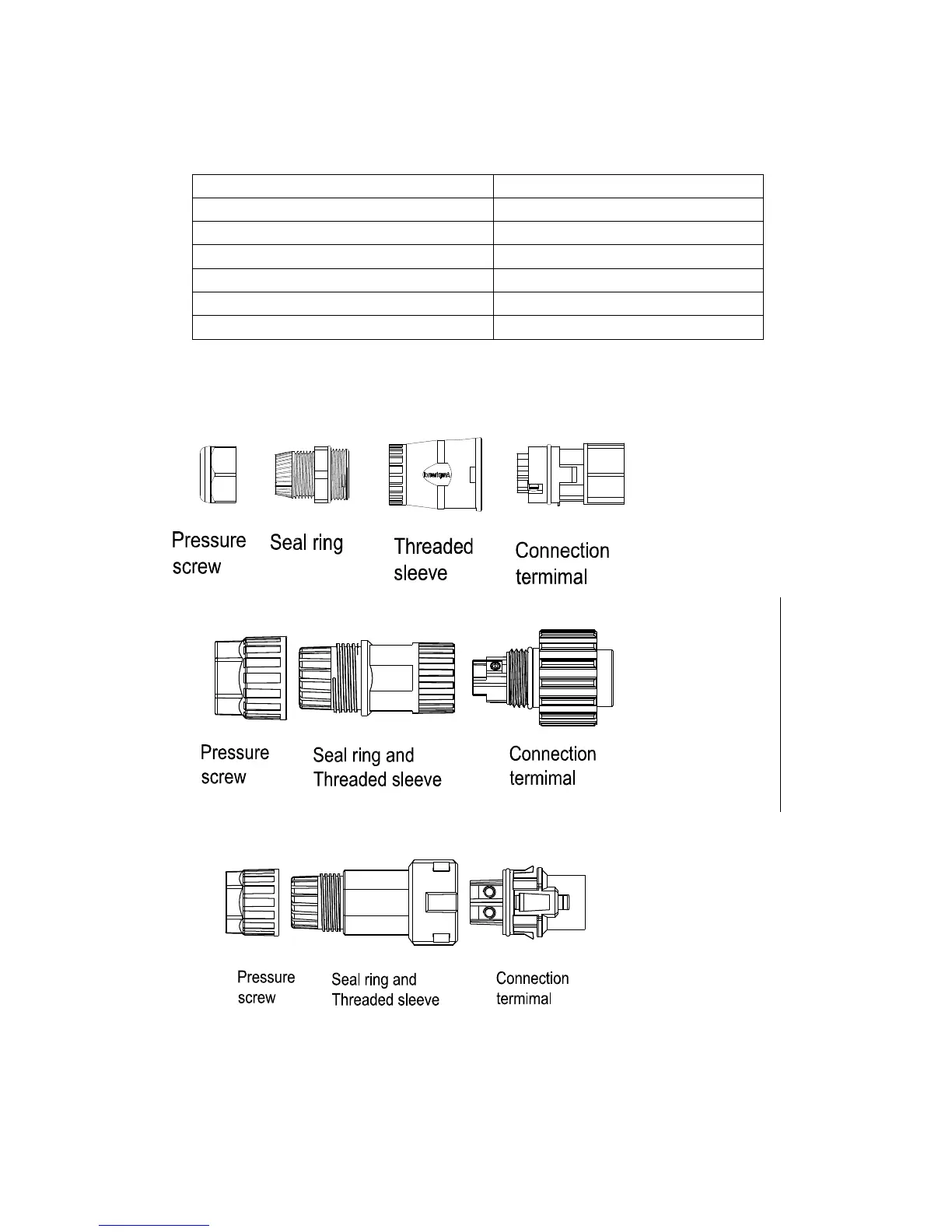

The AC wiring step:
1. Uninstall the parts of the AC connection plug from the accessory bag.
2. Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in
sequence, insert cables into connection terminal according to polarities indicates on it and
tighten the screws firmly. Please try to pull out the wire to make sure the it’s well connected.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt MIN 5000 TL-X and is the answer not in the manual?

Growatt MIN 5000 TL-X Specifications

General IconGeneral
Max. DC Voltage550 V
Nominal AC Output Power5000 W
Max. Efficiency98.4%
MPPT Efficiency99.9 %
Weight10.8 kg
Protection RatingIP65
Number of MPP Trackers2
Max. Input Current per MPPT11 A
Max. AC Power5000 W
Nominal AC Voltage230 V
AC Voltage Range180 V - 280 V
Nominal Grid Frequency50 Hz / 60 Hz
Total Harmonic Distortion<3%
DC SwitchYes
Protection ClassClass I
TopologyTransformerless
CoolingNatural convection
Max. PV Input Power6000 W
Max. PV Input Voltage550 V
Max. Input Current22 A
AC Output Voltage230 V
AC Output Frequency50 Hz / 60 Hz
Peak Efficiency98.4%
Operating Temperature Range-25°C to 60°C
Power Factor Adjustment Range0.8 leading - 0.8 lagging
Dimensions (W x H x D)375 x 350 x 160 mm
