Growatt SPH5000 Installation Manual

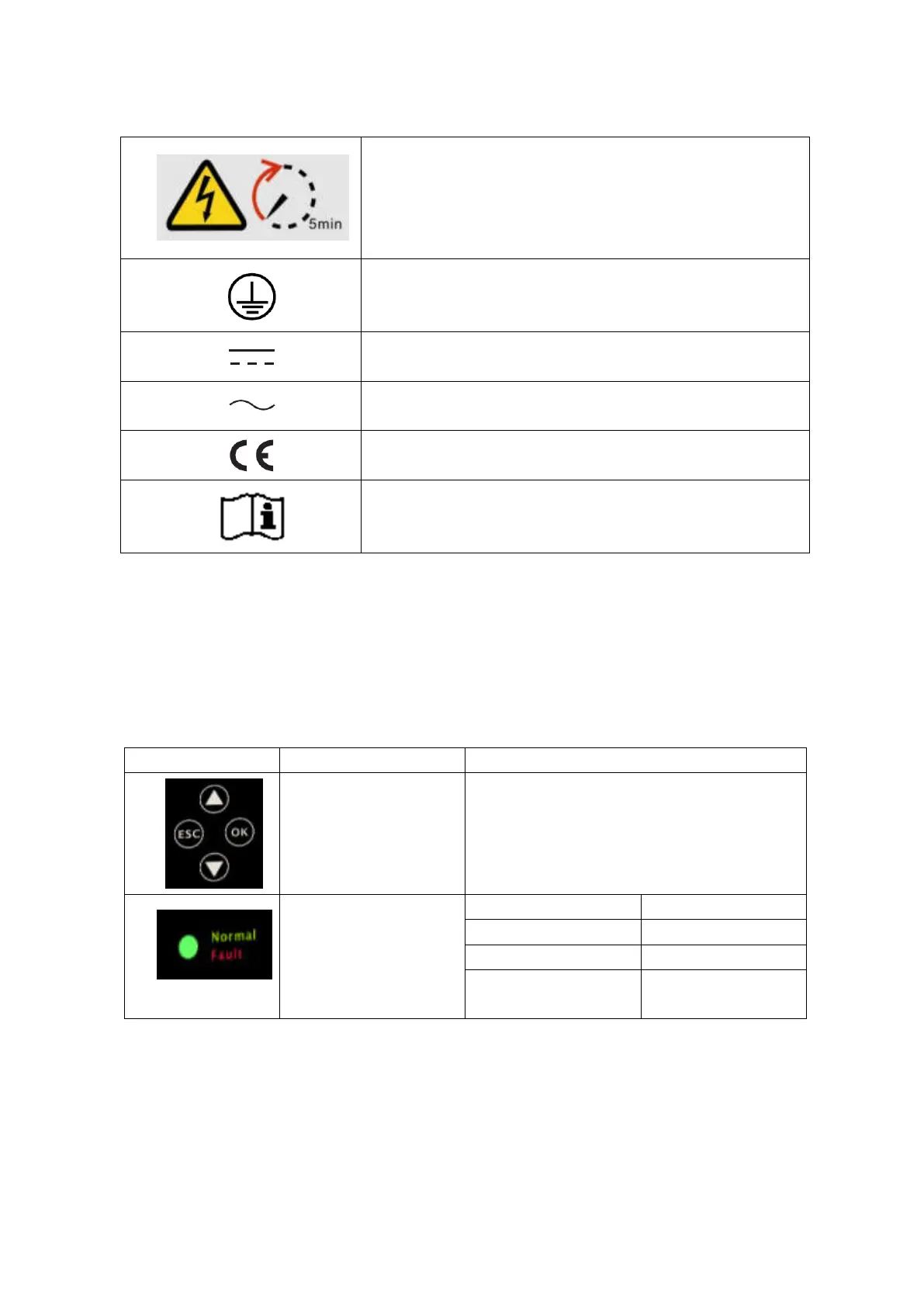

Danger to life due to high voltage in SPH
There is residual voltage in SPH, SPH requires 5 minutes to
discharge.
Please wait 5 minutes before you open the upper lid or the DC
lid.
Protective conductor terminal
Direct Current(DC)
Alternating Current(AC)
The machine complies with the requirements of the applicable
CE guidelines
Refer to the operating instructions.
3 Product Description
3.1 SPH TL BL-UP series inverter
Marks of
SPH
3.2 Label Explanation
Label contains the following information: for example SPH 6000TL BL-UP shows as below:
Mark Description Explanation
Push-button Operation of display screen and set system
Status symbol of SPH
Green light on SPH run normally
Red light on Fault state
Green light blinking 1.Alarm state
Red light blinking
2.Software
updating

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
