and set again.
The DIP switch is composed of six-digit binary number PINS. The different combination of the six PINS can
represent different inverter’s model, which is corresponding to the local grid standard. Each small white PIN
has two statuses, when set upward to “ON”, its value turns to “1”, when set downward, its value turns to “0”.
Concerning the matching of the PIN status and the country safety standard, please refer to the table below:

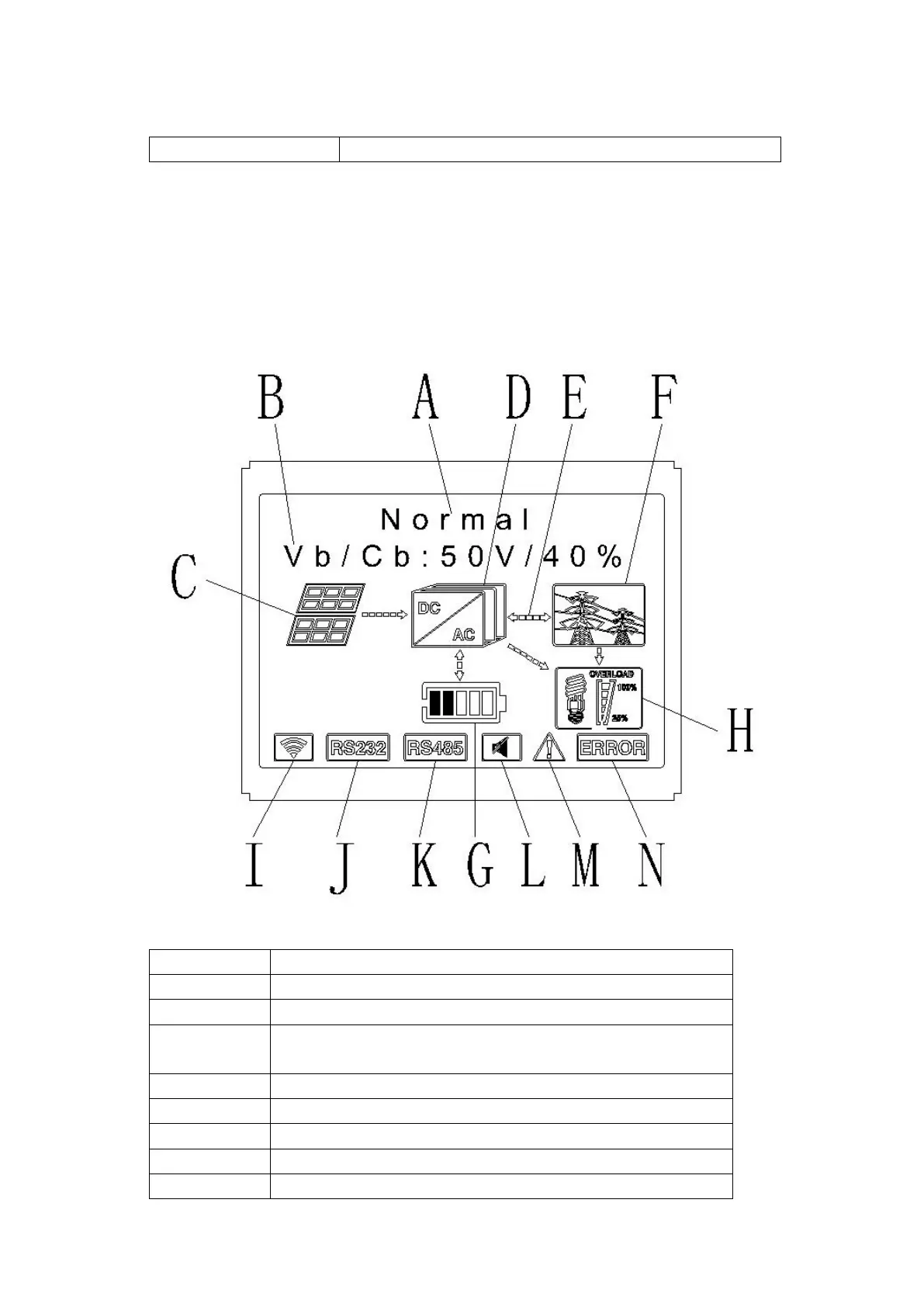

6.4 Display and button
6.4.1 LCD display area
Chart 6.2
Location Description
A State
B Information
C
PV input (If you connect two tracks, it will show two. Otherwise
show one)
D SPH inverter
E Power flow line
F Grid
G Battery (Show the SOC in five grid, Every grid represents 20%)
H Local load

Other manuals for Growatt SPH5000

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPH5000 and is the answer not in the manual?

Growatt SPH5000 Specifications

General IconGeneral
ModelSPH5000
TypeHybrid Inverter
Rated Power5000 W
Max. DC Voltage550 V
Max. Output Current22 A
Weight25 kg
Max. DC Power6000 W
Start Voltage150 V
Nominal DC Voltage360 V
Number of MPP Trackers2
AC Nominal Power5000 W
Max. AC Apparent Power5000 VA
AC Nominal Voltage230 V
AC Voltage Range180-280V
Nominal Grid Frequency50/60Hz
Total Harmonic Distortion (THDi)<3%
Power Factor Adjustment Range0.8 leading to 0.8 lagging
DC Injection Current<0.5% In
Switching Time<10 ms
Max. Charge/Discharge Power5000 W
Max. Charge/Discharge Current100 A
Protection degreeIP65
Max. PV Input Voltage550 V
Cooling MethodNatural Convection
Communication with BMSCAN
Operating Temperature Range-25°C to 60°C
MPPT Voltage Range120 V - 550 V
