Growatt SPH5000 Installation Manual

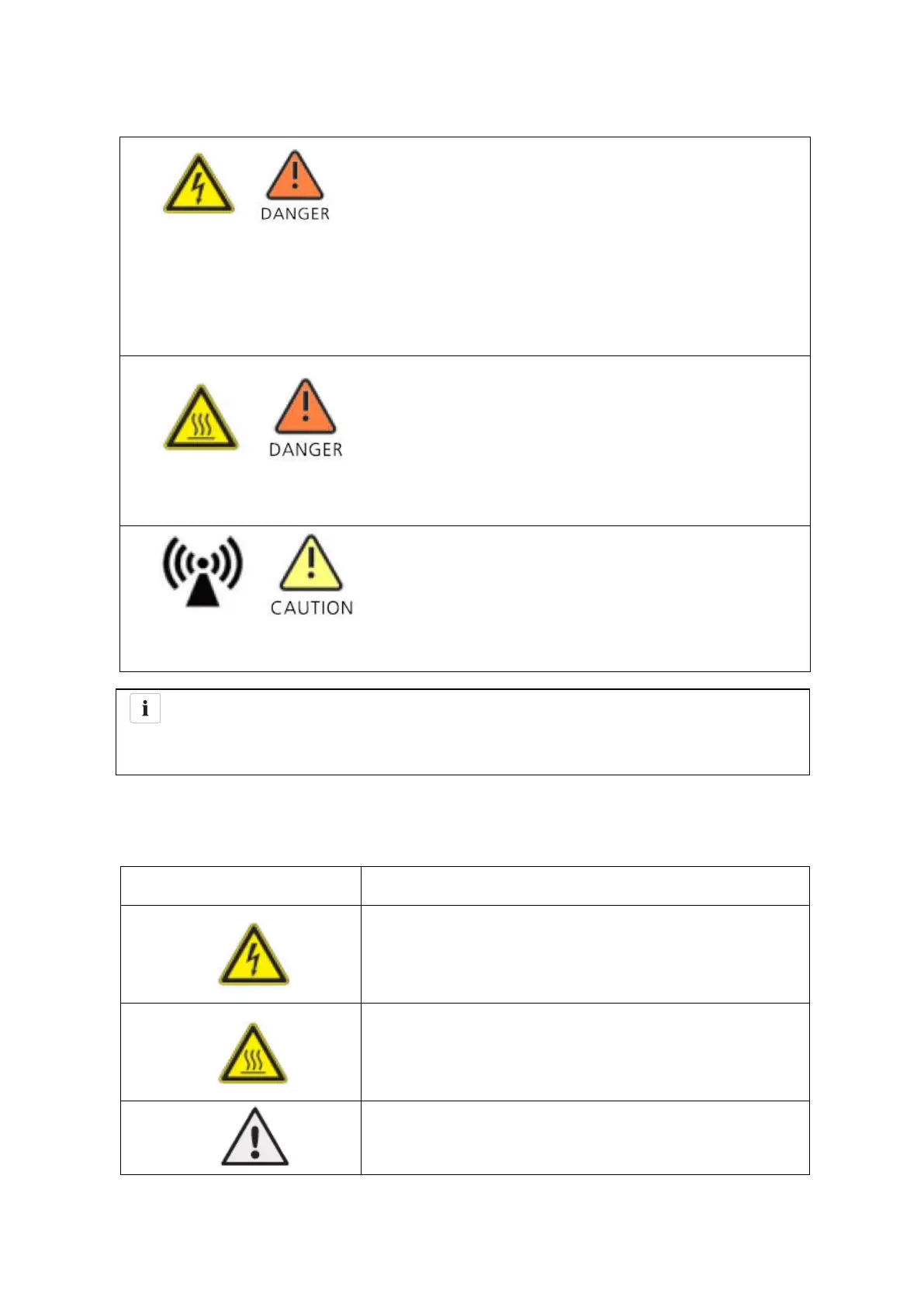

Risk of high voltage！
 Relevant operation for professional personnel
 Please notice children, disabled, laypeople do not close
 Supervise and make sure children don’t play near the installation position of energy
storage machine
Risk of burns on the parts shell of SPH inverter！

During the work, Cover, shell around, radiator is likely to be hot
SPH inverter exists radiation maybe affect health！
Don’t stay a long time within 20cm range from SPH inverter
2.3 Symbols introduction on the SPH inverter
Symbol Description
Caution: Risk of electrical shock!
Caution : hot surface
Caution: risk of danger
SPH inverter ground connection
Please ensure SPH inverter ground connection is reliable for make sure people’s safety

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
