Growatt SPH5000 Installation Manual

Chart 2.1

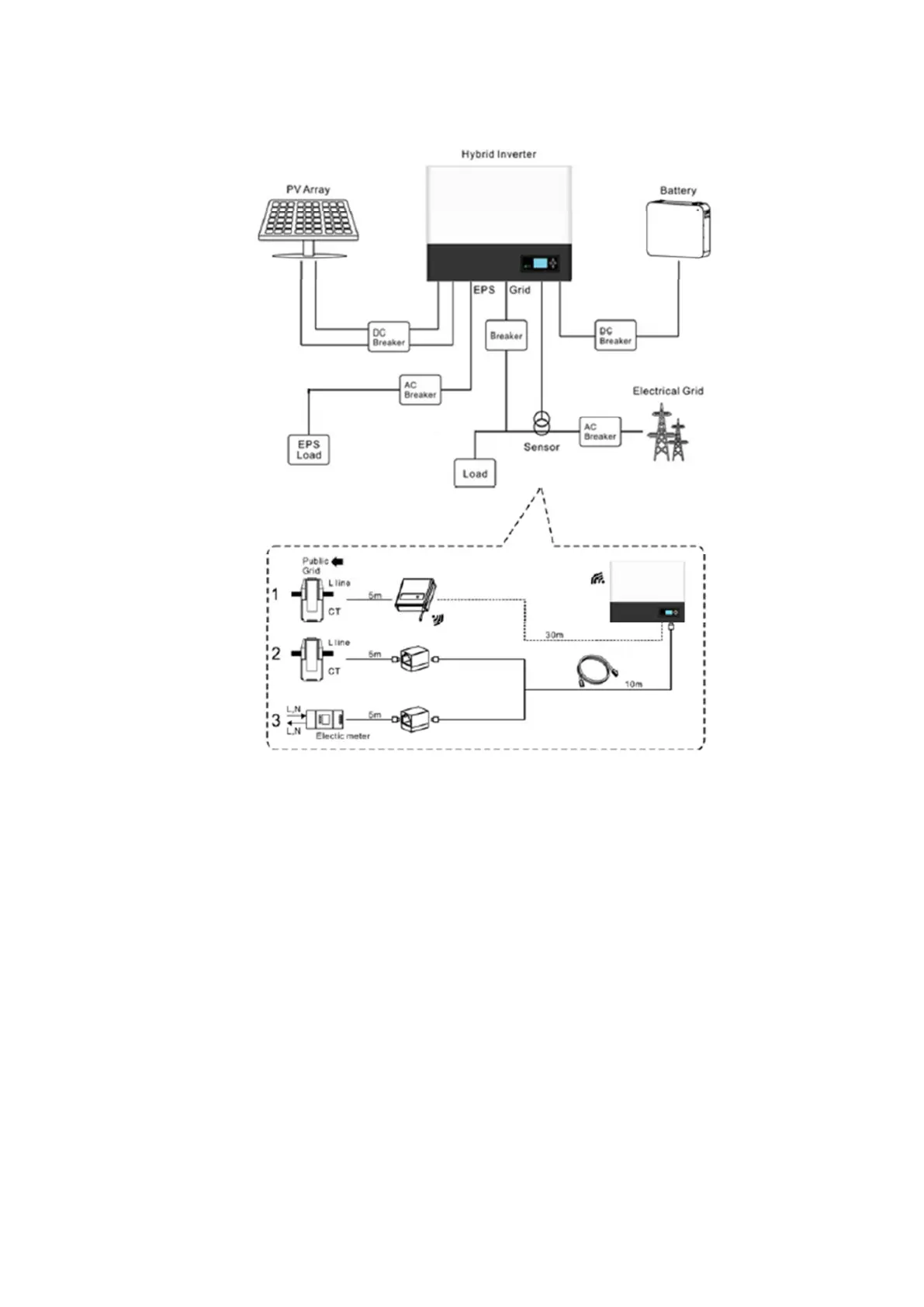

As shown above, a complete grid-connected system of SPH TL BL-UP consists of PV modules, SPH TL BL-UP
inverter, battery, utility grid and other components.
Attention:
As the system refer to battery use, we must make sure ventilation of the service environment and temperature
control in order to prevent the danger of battery explosion, battery recommended installation environment
must be strictly in accordance with the specification, if the specification is IP20 environment, the pollution
degree of the unit is PD2, meanwhile the temperature should be control in the 0-40℃ of indoor ventilation
and the humidity should be 5%-85%. If the chosen PV modules needs to positive or negative ground connection,
please contact with Growatt for technical support before installation.
2.2 Safety Measure

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
