Growatt SPH5000 Installation Manual

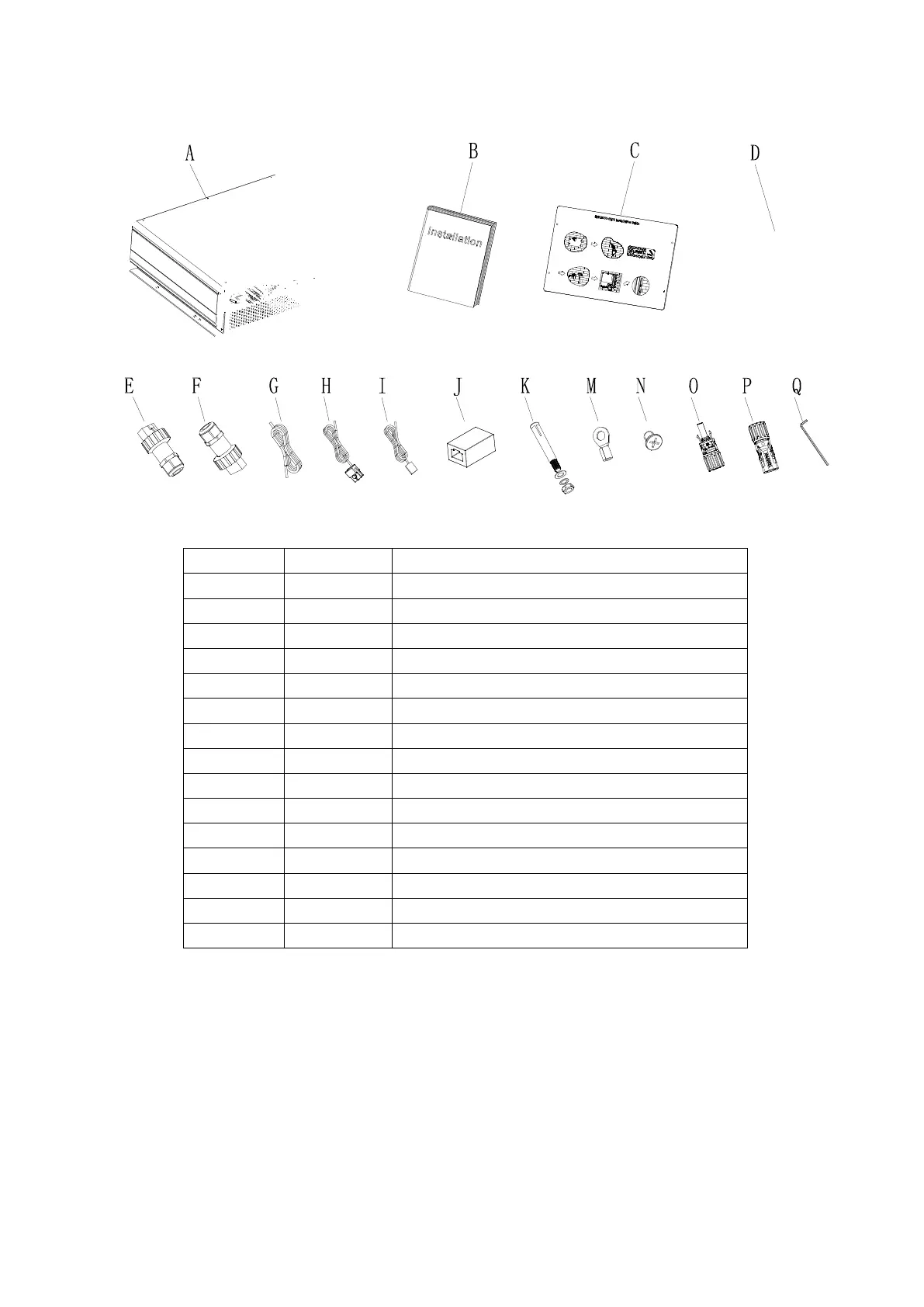

Chart 4.1
Item Number Description
A 1 SPH inverter
B 1 User Manual
C 1 Paper board(installation guide)
D 1 Waterproof cover
E 1 AC Grid connector
F 1 EPS output connector
G 1 Communication cable
H 1 Current sensor
I 1 Lead-acid battery temperature sensor
J 1 RJ45 connector
K 4 M6 setscrew
M 2 Battery power terminal
N 6 screw
O/P 2/2 MC4 connector
Q 1
Hex screwdriver
5 Installation
5.1 Basic installation requirements
A. The installation location must be suitable for SPH’s weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile materials
D. The ingress Protection rate is IP65 and the pollution degree is PD2. Please refer to the below:

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
