Growatt SPH5000 Installation Manual

Chart 5.3
J. Do not install the machine near television antenna or any other antennas and antenna cables
K. Don’t install the machine in the living area
L. Be sure that the machine is out of the children’s reach
M. Taking the battery fixing space into account, about the dimensions please reference user manual
N. The inflammable and explosive dangerous goods must not be placed around battery in case of cause
serious danger.
5.2 Installation requires tools and RJ 45 terminal sequence of the LAN line。

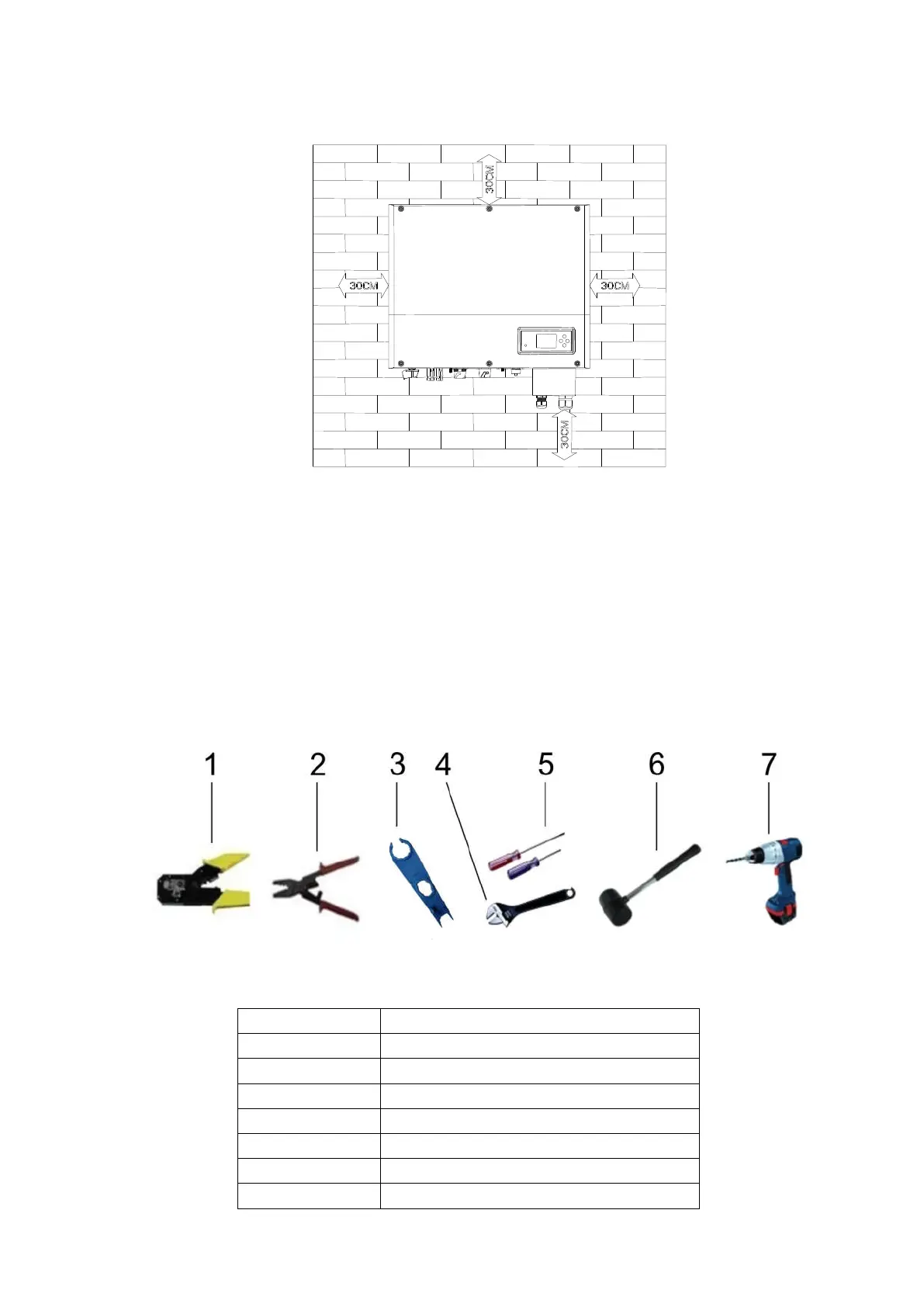

When installing, we need to use tools as follow, prepare the follow tools before installing：
Chart 5.4
No. Description
1 Press the RJ45 terminal
2 Press battery terminal connector
3 Disconnect PV terminal
4 Unscrew nut
5 Unscrew screw
6 Knock explosion bolt
7 Drill holes on the wall

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
