Growatt SPH5000 Installation Manual

The cable of wired sensor and meter is suggested not longer than 15m. So you need to consider the length
between SPH with combiner box for the sensor should be installed in the live line. And if you installed SP-CT for
sensor, distance recommended not more than 30 meters.

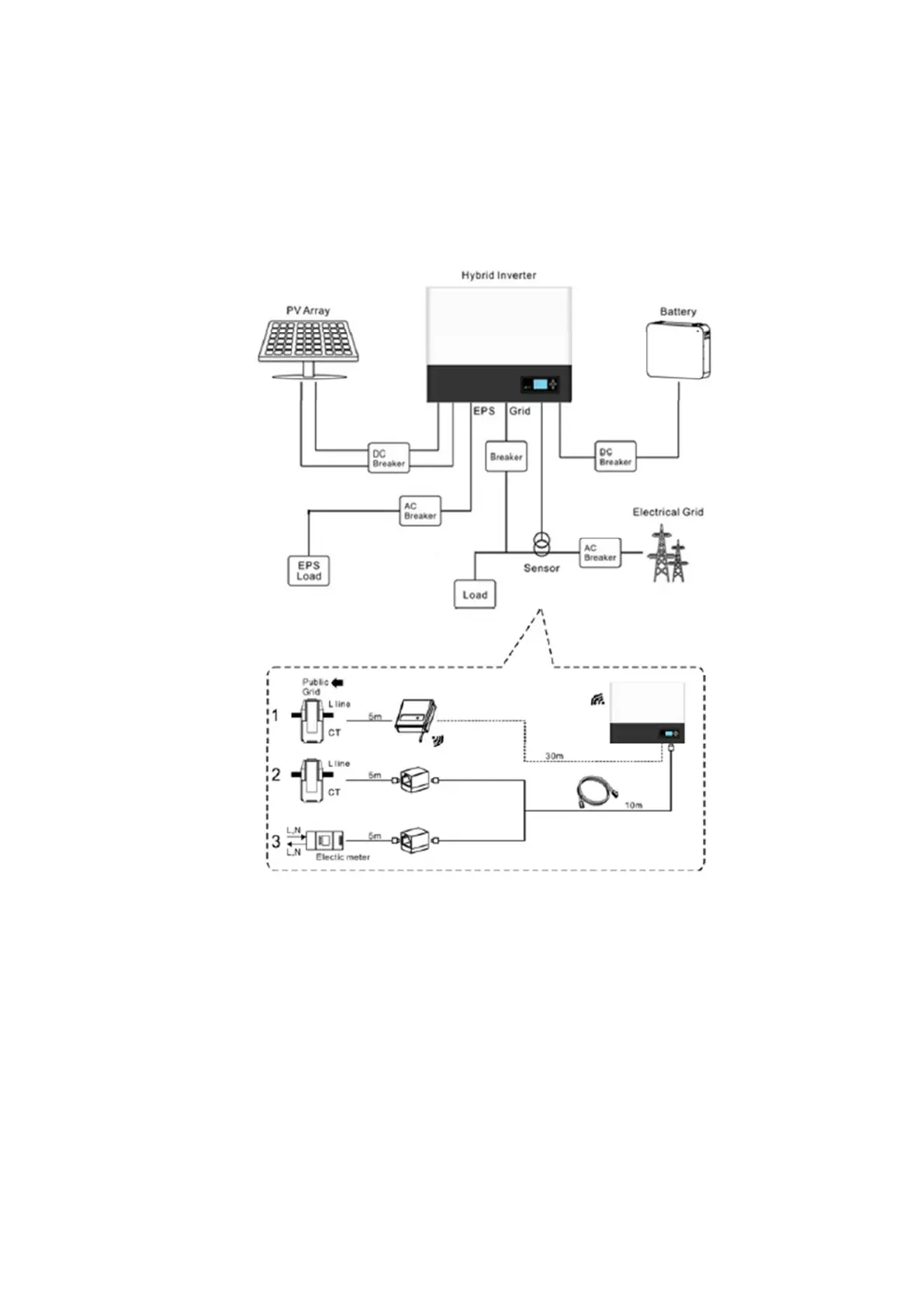

The installation layout of energy storage machine at home as following:
Chart 5.7-1 SPH 3000-6000TL BL-UP

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
