Growatt SPH5000 Installation Manual

electricity meter, please refer to section 6.3.3 for details.
2. If the cable such as “CT” cable is not used, please do not remove the filler plug from the cable support
sleeve.
Remark:
CT wire (5m in length) specification: RJ45, standard LAN line (one end with 8P modular plug, the other
connected with transformer). But if the length is not enough, customer can add cable, so the length can be
increased to 15m max, the operation is as follow chart:

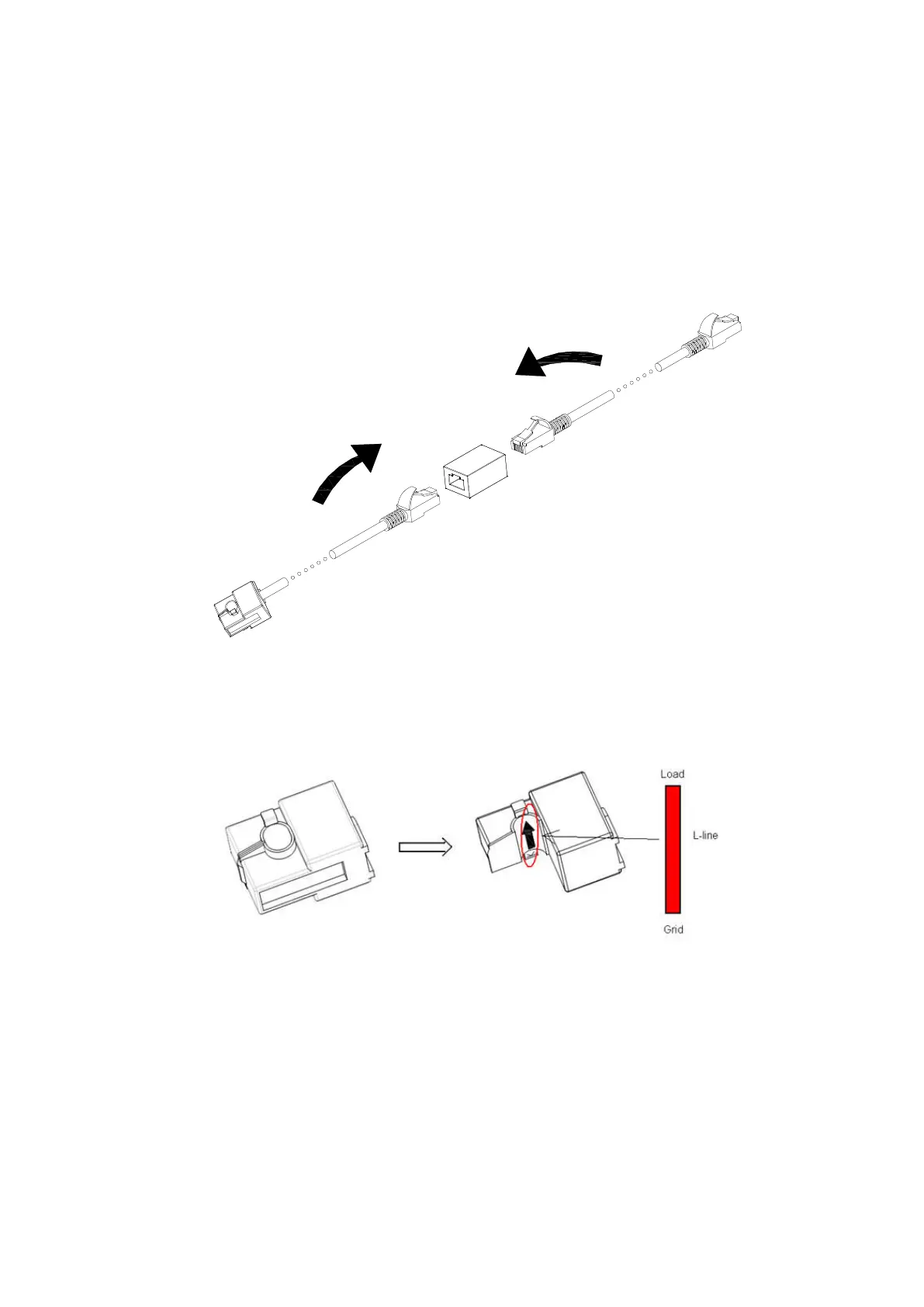

Chart 5.24
During the actual operation, please pay attention to the installation of current transformer as the diagram
shows below:
Chart 5.25
As illustrated above, open the current transformer and you can see an arrow labeled on it indicating the
direction of current. Put the live wire among the under-detection wires onto the current transformer. After
latching the current transformer, the installation has been finished
Notice:
The direction (from K to L) of the arrow on the current transformer is corresponding to the direction of the
current in live wire from Grid to Load. Sensor needs to be placed in the power distribution cabinet.

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
