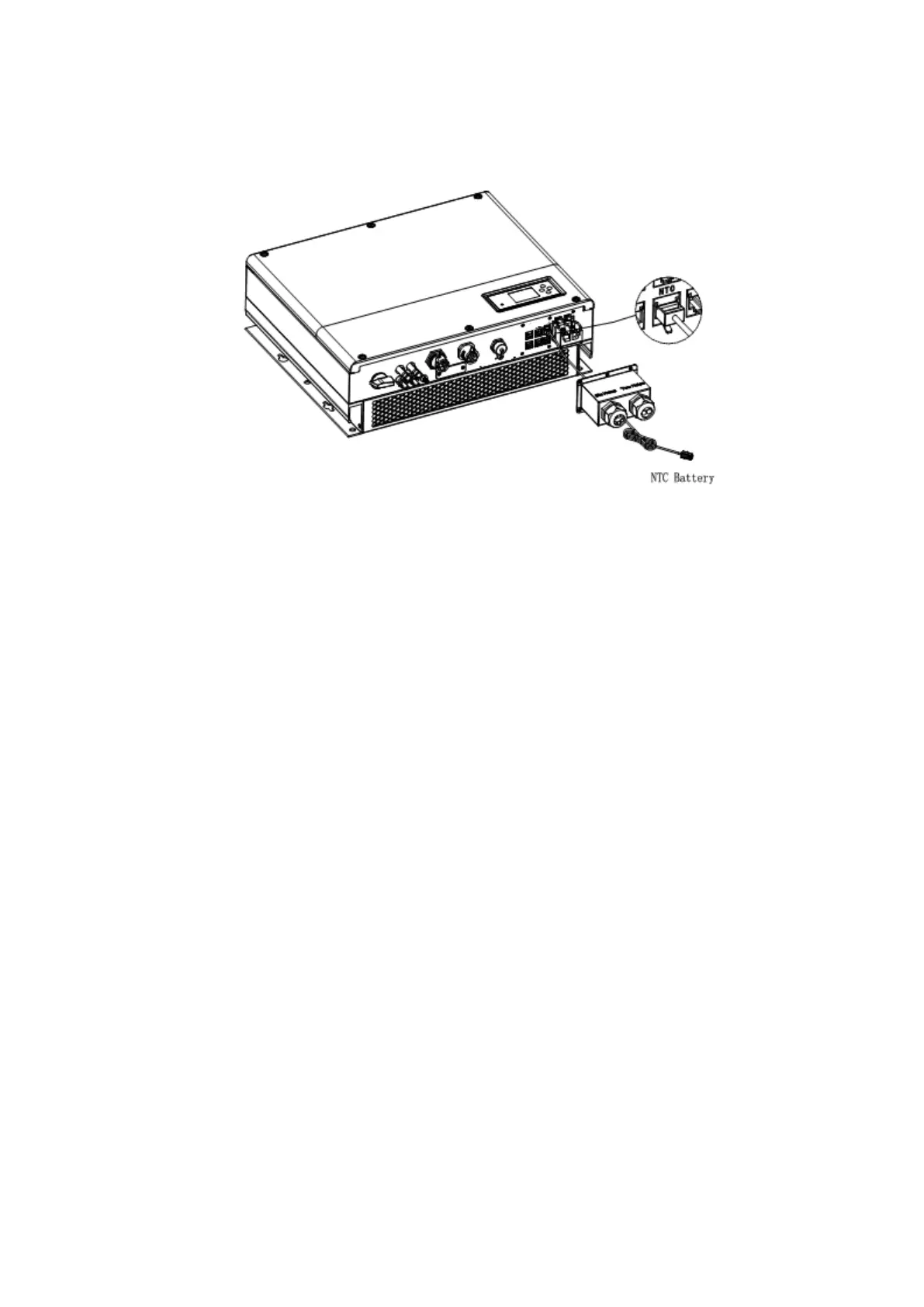

Chart 5.34

Chart 5.35

Note:

1. If you are using a lithium battery, you do not need to install this temperature probe, the probe of the

temperature cable should be attached to the surrounding environment of the lead-acid battery, and the length

of this cable is 1.5m, so pay attention to the distance of battery and SPH.

2. If the cable such as “NTC” (lead-acid battery temperature sensor) cable is not used, please do not remove

the filler plug from the cable support sleeve.

5.4.10 Connection of Dry contact

The dry contact is used to communicate with external devices (such as remote start hot water heater). The

wiring steps are as follows:

1. Unscrew the swivel nut from the cable gland.

2. Thread the swivel nut over the cable.

3. Press the cable support sleeve out of the cable gland.

4. Remove the filler plug from the cable support sleeve.

5. Route the network cable through an opening in the cable support sleeve.

6. Thread the network cable through the cable gland.

7. Thread cables into connection terminal of the inverter, then press the terminal by relevant tools and

make sure cables are firmly.

8. If no other cables need to be installed, lock the waterproof cover to the inverter with screws.

9. Screw the swivel nut onto the waterproof cover.

Other manuals for Growatt SPH5000

Questions and Answers:

Need help?

Do you have a question about the Growatt SPH5000 and is the answer not in the manual?

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
