Growatt SPH5000 Installation Manual

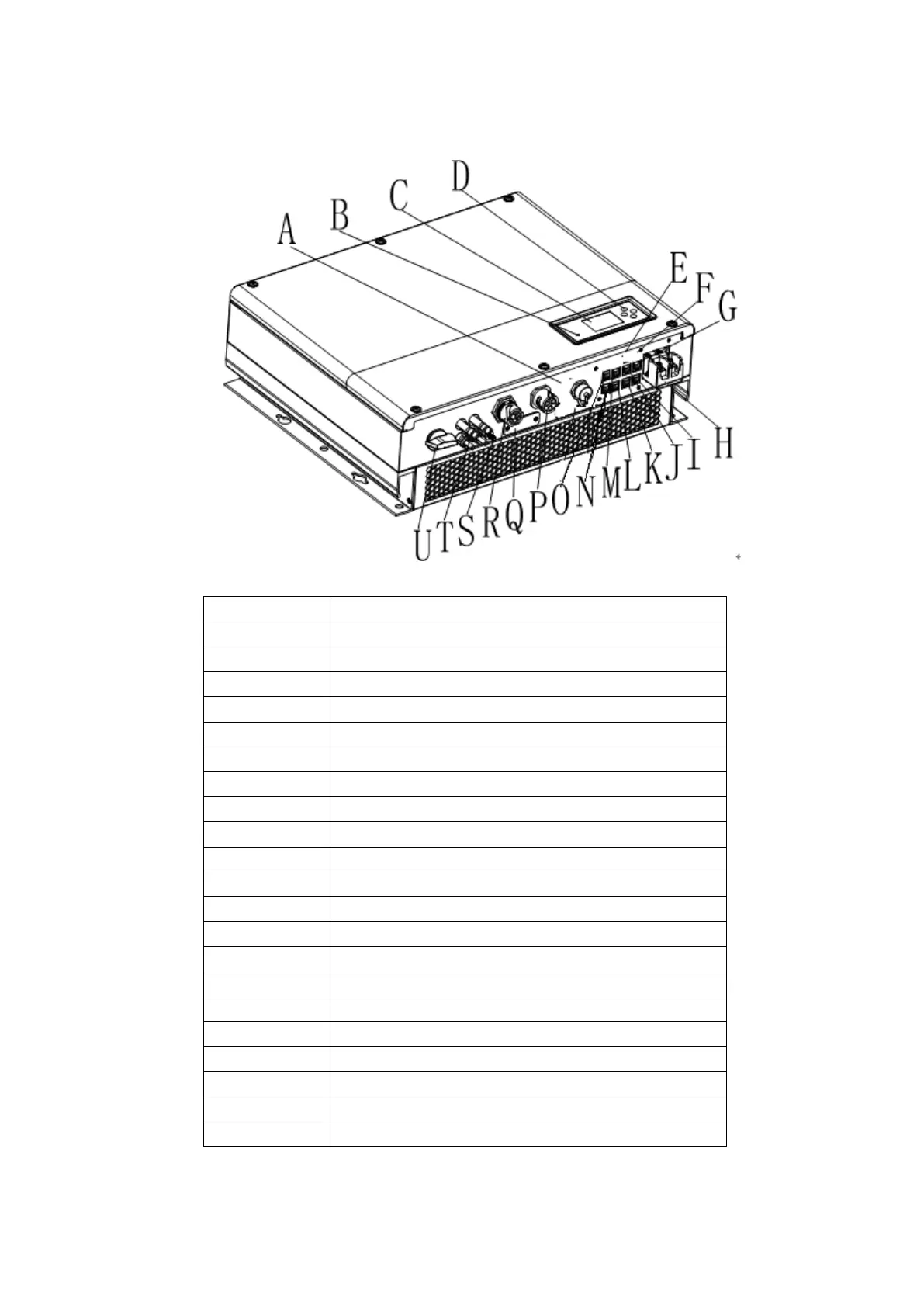

Chart 1.1
Position Description
A
USB interface
B LED of status display
C LCD screen
D Function button
E
DIP switch（set safety standard）
F Dry contact
G RS485 communication interface of Lithium battery
H Battery terminal
I CAN communication interface of Lithium battery
J RJ45 interface of DRMs(used only in Australia)
K NTC: Lead-acid temperature sensor terminal
L RS485 communication interface of meter
M CT input terminal
N RS485-1 communication
O VPP communication
P AC Grid (on grid connection)
Q RSD(do not open except by Professional staff)
R EPS output(off grid connection)
S Ground point
T PV input
U PV switch

Growatt SPH5000 Specifications

General

Model	SPH5000
Type	Hybrid Inverter
Rated Power	5000 W
Max. DC Voltage	550 V
Max. Output Current	22 A
Weight	25 kg
Max. DC Power	6000 W
Start Voltage	150 V
Nominal DC Voltage	360 V
Number of MPP Trackers	2
AC Nominal Power	5000 W
Max. AC Apparent Power	5000 VA
AC Nominal Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60Hz
Total Harmonic Distortion (THDi)	<3%
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
DC Injection Current	<0.5% In
Switching Time	<10 ms
Max. Charge/Discharge Power	5000 W
Max. Charge/Discharge Current	100 A
Protection degree	IP65
Max. PV Input Voltage	550 V
Cooling Method	Natural Convection
Communication with BMS	CAN
Operating Temperature Range	-25°C to 60°C
MPPT Voltage Range	120 V - 550 V
