14
6.9.2 Selection of operating mode
Select the operating mode by means of the mechani-
cal contact in each module.

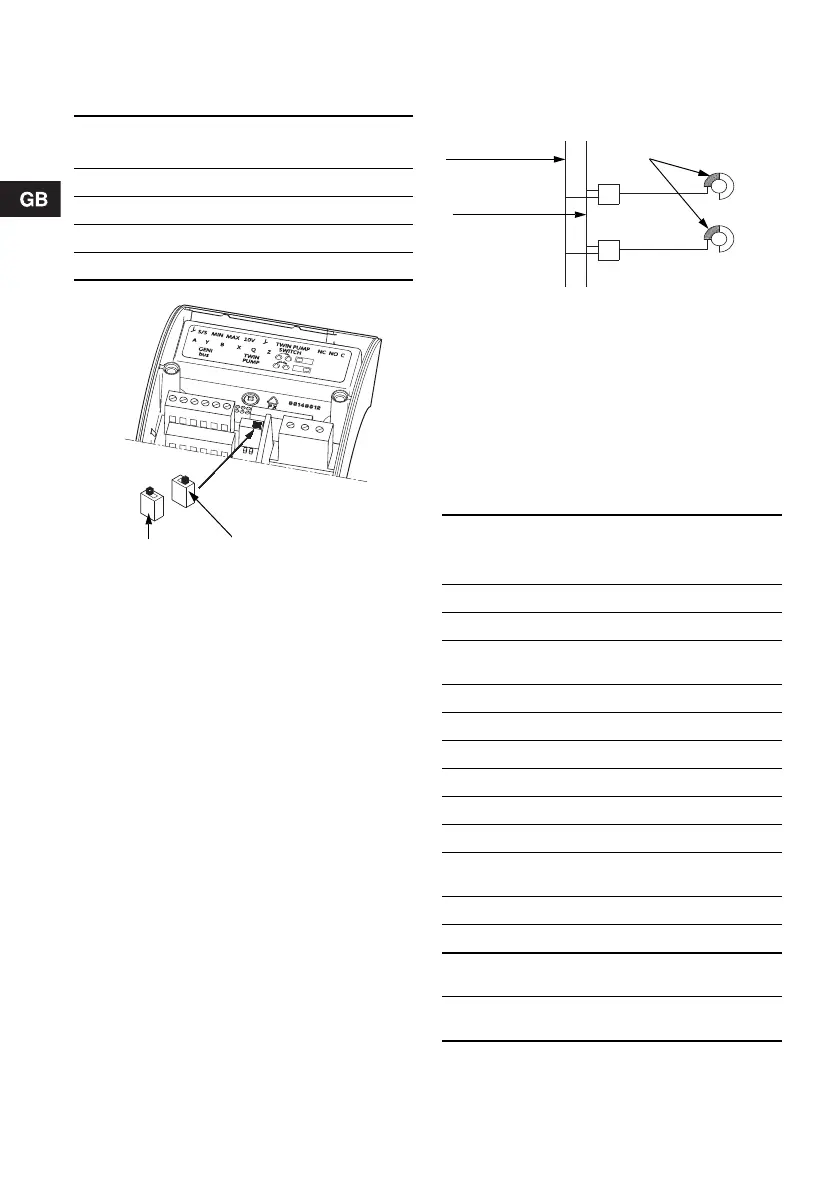

Fig. 9 Mechanical contact
Operating the pump
Twin-head pumps can be set and operated in the
same way as single-head pumps. The duty pump
uses its setpoint setting, whether it is made on the
control panel, with the R100 or via bus.
Note: Both pumps should be set to the same set-
point and control mode. Different settings will result
in different operation when changing between the
two pumps.
6.10 Connection to LON network
The pump can be connected to a LON network via a
GENI module and an external Grundfos G10 LON
interface. Product number: 00605726.
Fig. 10 Connection to LON network
7. Setting the pump
The pump can be set
• on the control panel.
• with the R100 remote control.
• via bus communication (not described in detail in
these instructions, contact Grundfos).
The table shows the application of the individual op-
erating units and in which section the function has
been described.
"–" = not available with this operating unit.
Operating
mode
Left pump
head
Right pump
head
Alternating Alternating Alternating
Standby Alternating Standby
Standby Standby Alternating
Standby Standby Standby
TM03 0867 0605
Standby operation
Alternating operation
TM03 0378 5004
Possible settings
Control
panel
R100
AUTOADAPT 7.2.1 7.7.1
Automatic night-time duty 7.2.1 7.7.2
Proportional-pressure
control
7.2.1 7.7.1
Constant-pressure control 7.2.1 7.7.1
Setpoint setting 7.2.2 7.5.1
Max. curve duty 7.2.3 7.5.2
Min. curve duty 7.2.4 7.5.2
Constant-curve duty – 7.5.2
Temperature influence – 7.7.3
Activation/deactivation of
pump buttons
– 7.7.4
Allocation of pump number – 7.7.6
Start/stop 7.2.5 7.5.2
Resetting of fault indica-
tions
7.2.6 7.5.3
Reading of various data –
7.6.1 -
7.6.7
G10
G10
LON network
24 VAC/VDC
GENI module
