7.4 R100 display overview
The R100 displays are divided into four parallel
menus, see fig. 17:
0. GENERAL, see operating instructions for R100
1. OPERATION
2. STATUS
3. INSTALLATION
The number stated at each individual display in
fig. 17 refers to the section in which the display is de-
scribed.

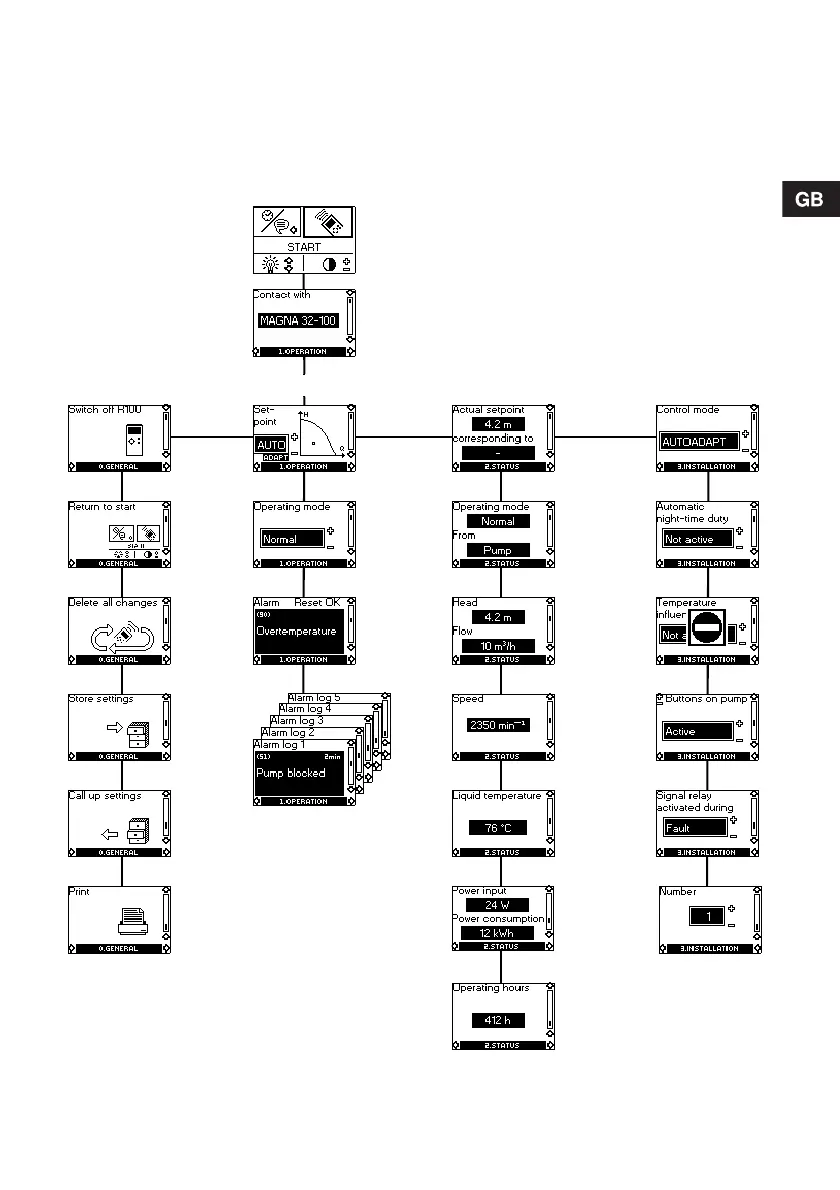

Fig. 17 Menu overview
3. INSTALLATION0. GENERAL 1. OPERATION 2. STATUS
7.5.3
7.6.2
7.6.3
7.6.4
7.6.5
7.7.5
7.7.4
7.7.3
7.6.6
7.6.7
7.5.2
7.7.1
7.6.1
7.5.1
7.5.4
7.7.2
7.7.6
This display appears only once, i.e. when the R100 gets
contact with the pump.
