Grundfos magna3 User Manual

Product description
MAGNA3
1
5

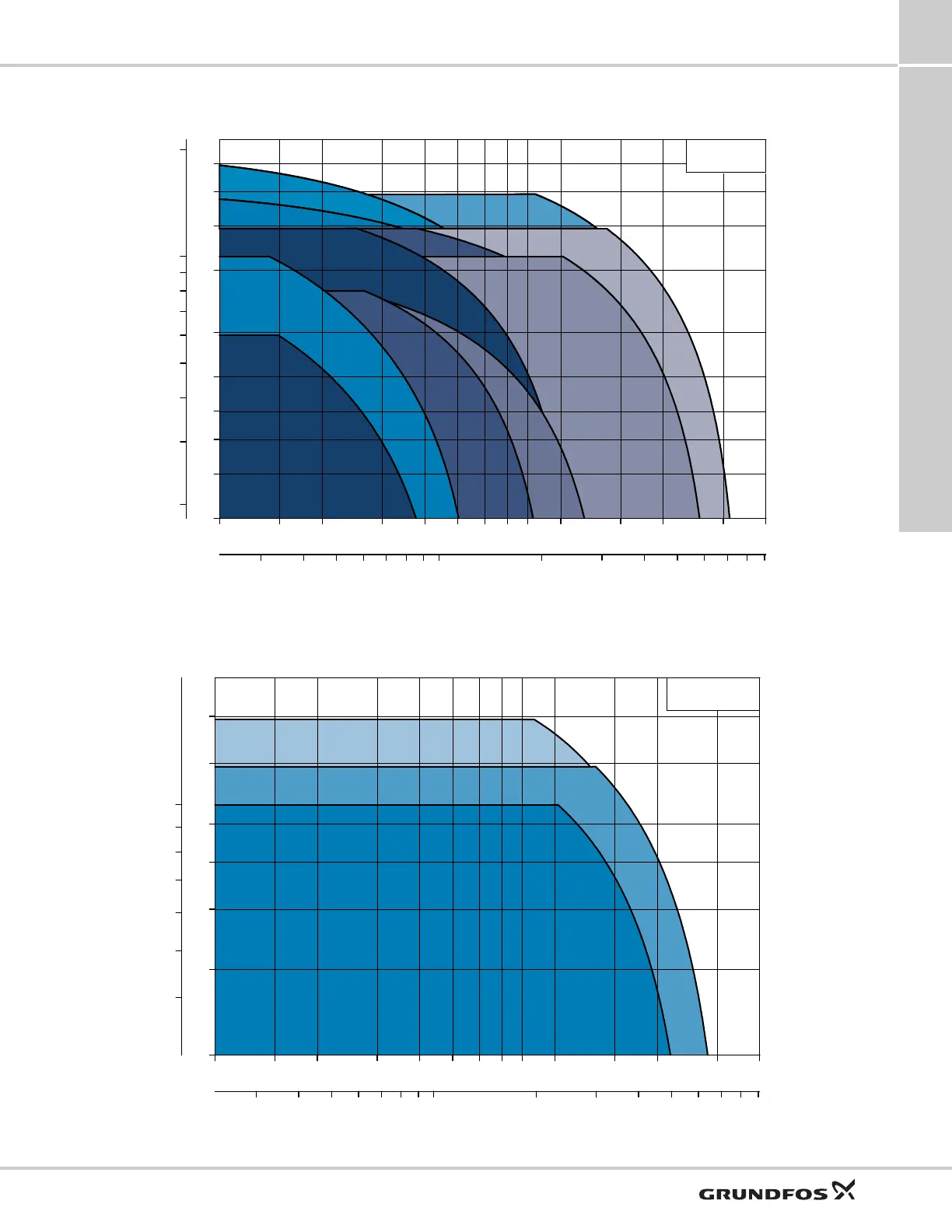

Performance range, MAGNA3
Fig. 4 Performance range, MAGNA3
Performance range, MAGNA3 D single-head operation
Fig. 5 Performance range, MAGNA3 D single-head operation
TM05 7654 2818
10 15 20 30 40 50 60 70 80 100 150 200 300 400
Q [US GPM]
6
8
10
12
15
20
30
40
50
60
[ft]
H
34567891010 20 30 40 50 60
Q [m³/h]
2
3
4
5
6
7
8
9
1010
[m]
H
MAGNA3
100-120
80-100
65-120
65-150
50-150
50-80
40-120
40-180
40-80
32-100
32-60
TM05 7655 2818
10 15 20 30 40 50 60 70 80 100 150 200 300 400
Q [US GPM]
10
15
20
25
30
40
50
[ft]
H
34567891010 20 30 40 50 60
Q [m³/h]
4
5
6
7
8
9
1010
[m]
H
MAGNA3 D
100-120
65-150
80-100

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
