Product description
MAGNA3
1
4

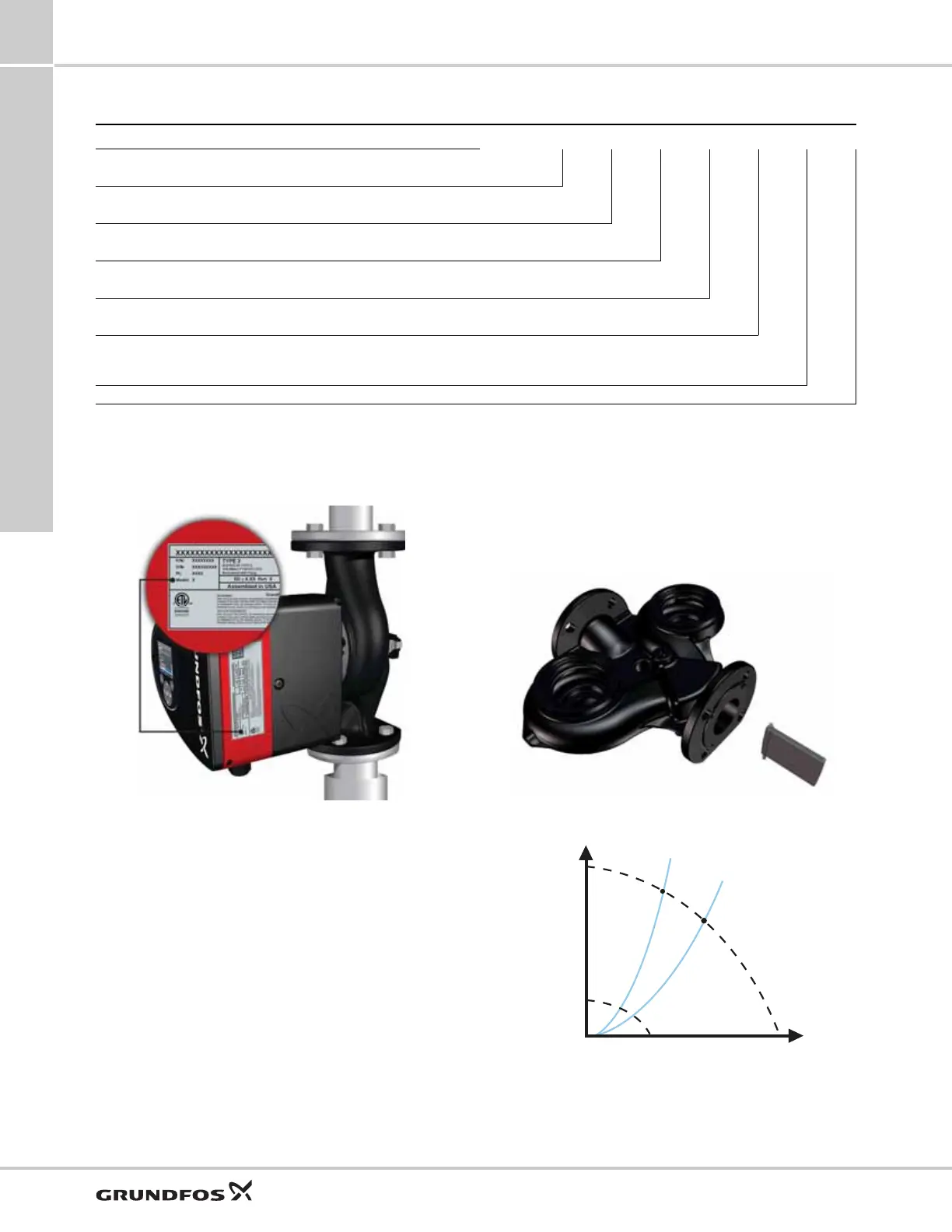

Type key
Model type
This data booklet covers MAGNA3 from model D. The
model version is stated on the nameplate. See fig. 1.
Fig. 1 Model type on pump nameplate
Pump heads in twin-head pumps
The twin-head pump housing has a flap valve on the
outlet side. The flap valve seals off the port of the idle
pump housing to prevent the pumped liquid from
running back to the inlet side. See fig. 2. Due to the
flap valve, there is a difference in the hydraulics
between the two heads. See fig. 3.
Fig. 2 Twin-head pump housing with flap valve
Fig. 3 Hydraulic difference between the two heads
Code Example MAGNA3 (D) 80 -120 (F) (N) 360
Type range
MAGNA3
D
Single-head pump
Twin-head pump
Nominal diameter (DN) of inlet and outlet ports [mm]
Maximum head [dm]
F
Pipe connection
Flange
N
Pump housing material
Cast iron
Stainless steel
Port-to-port length [mm]
TM06 7734 4017
TM06 1565 2514TM06 1566 2514
H
Q
Right pump head
Left pump head

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
