Curve conditions
MAGNA3
8
40
8. Curve conditions
Performance curves
The guidelines below apply to the performance curves
on pages 42 to 56:
• Test liquid: airless water.
• The curves apply to a density of ρ = 983.2 kg/m
3
and a liquid temperature of 140 °F (60 °C).
• All curves show average values. If a specific
minimum performance is required, individual
measurements must be made.
• The curves apply to a kinematic viscosity of μ =
0.474 mm
2
/s (0.474 cSt).
• Reference supply voltage: 1 x 230 V, 50 Hz.
• EEI obtained according to EN 16297.
Note: Within the MAGNA3 performance range, you
can set the constant- and proportional-pressure curves
in steps of 0.1 m head on the operating panel or with
Grundfos GO.
Energy efficiency index (EEI)
MAGNA3 is energy-optimized and complies with the
EuP Directive (Commission Regulation (EC) No
641/2009) which has been effective as from 1 January
2013.
For MAGNA3 pumps, the average energy efficiency
index (EEI) is 0.18 with values down to 0.17,
categorized as best in class.
MAGNA3 with its AUTO
ADAPT
function is the preferred
choice for large heating systems and a true efficiency
frontrunner.
Figure 57 shows the energy consumption index for a
typical circulator pump compared to the various EEI
limits.

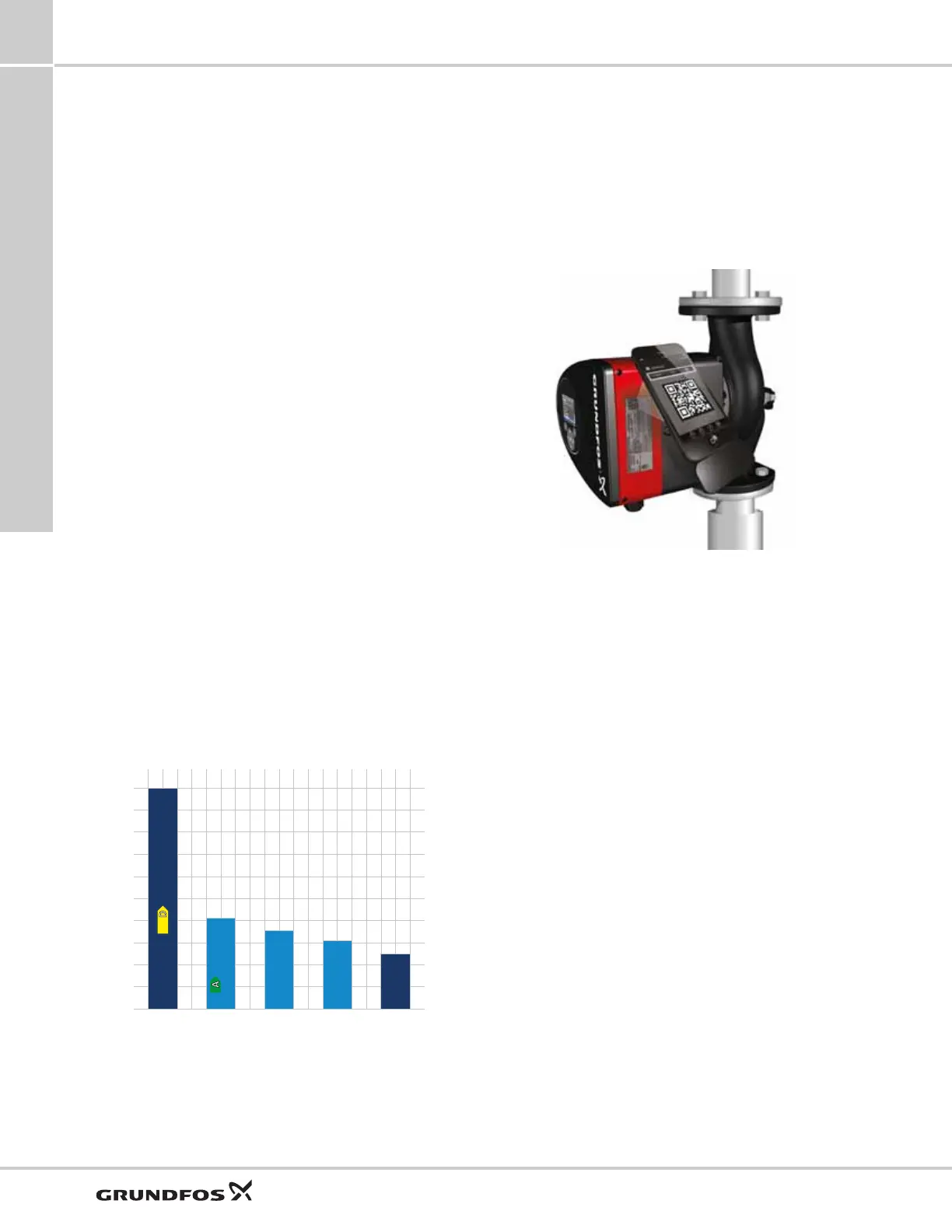

Fig. 57 Energy consumption index, single pumps
With an energy efficiency index (EEI) well below the
EuP benchmark level, you can achieve energy savings
of up to 75 % compared to a typical circulator pump
and thus a remarkably fast return on investment.
QR code on the pump nameplate
Fig. 58 QR code on the pump nameplate
With Grundfos GO or a smartphone, you get the
following information about MAGNA3:
• product photo
• pump performance curves
• dimensional sketches
• wiring diagram
• quotation text
• technical data
• service parts list
• PDF files, such as data booklet and installation and
operating instructions.
TM05 3935 1712
Index
10
0
20
30
40
50
80
60
90
70
100
Typical
circulator
pump
EuP
2013
EuP
2015
EuP
benchmark
level
MAGNA3
labelled
labelled
EEI = 0.27
EEI = 0.23
EEI = 0.20
EEI = 0.18
Typical
circulator
pump
EuP
2013
EuP
2015
EuP
benchmark
level
MAGNA3
(average
value)
TM05 3826 2017

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
