Functions
MAGNA3
4
27
Communication
MAGNA3 enables communication via the following:
• wireless Grundfos GO
• fieldbus communication via CIM modules
• digital inputs
• relay outputs
• analog input.
Grundfos GO

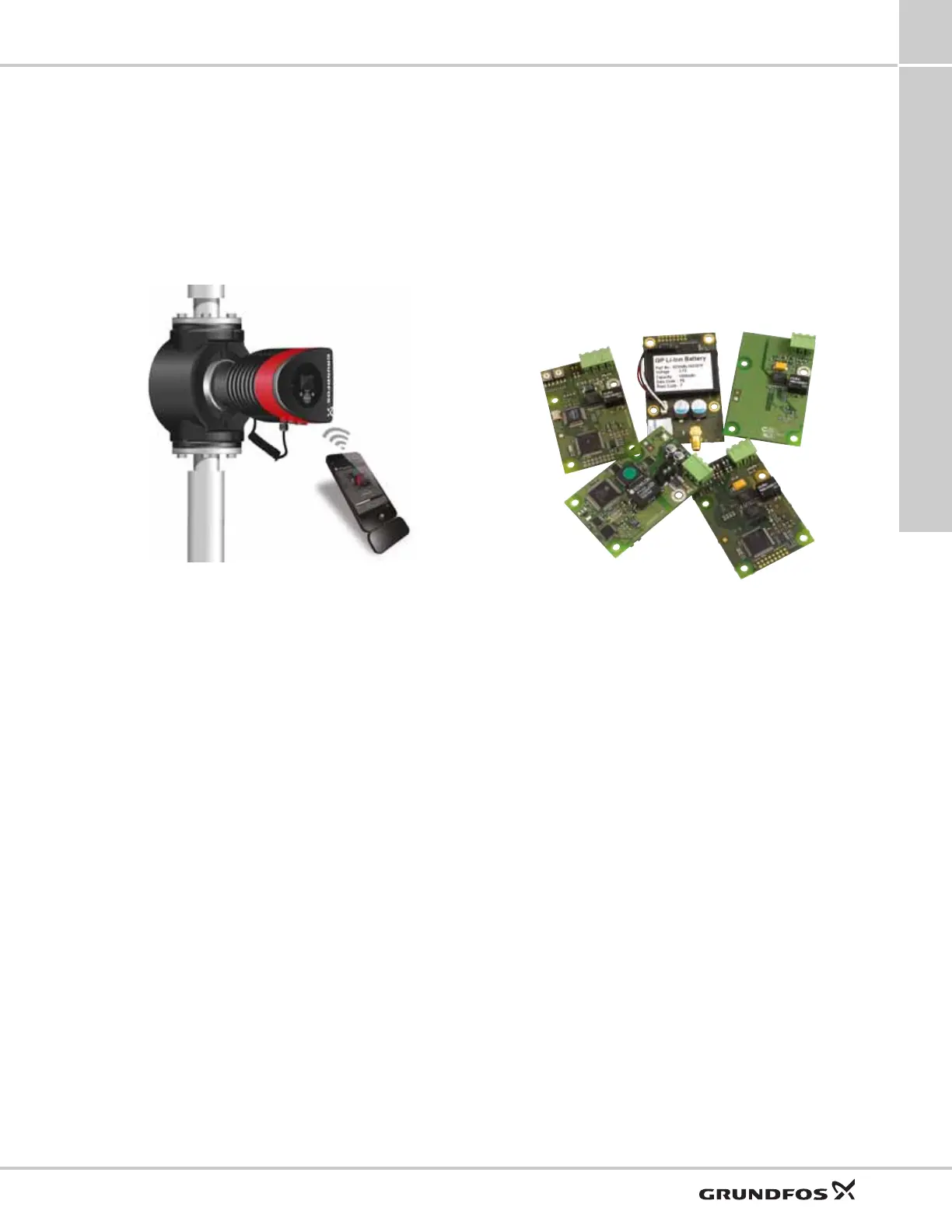

Fig. 37 Grundfos GO
With Grundfos GO, you can monitor your pump,
change settings, collect data and make reports. A
user-friendly interface provides you with all the
information and help you need, as well as live pump
data monitoring and easy-to-follow tips and guides.
You can use Grundfos GO for the following functions:
• reading of operating data
• reading of warning and alarm indications
• setting of control mode
• setting of setpoint
• selection of external setpoint signal
• allocation of pump number making it possible to
distinguish between pumps that are connected via
Grundfos GENIbus
• selection of function for digital input
• generation of reports (PDF)
• assist function
• multipump setup
• displaying relevant documentation.
For further details, see Grundfos GO, page 58.
Wireless GENIair
The pump is designed for multipump connection via
the wireless GENIair connection.
The built-in wireless GENIair module enables
communication between pumps and with Grundfos GO
without the use of add-on modules:
• Multipump function.
See Multipump function, page 23.
• Grundfos GO.
See Grundfos GO, page 58.
CIM modules
Fig. 38 Grundfos CIM modules
A CIM module is an add-on Communication Interface
Module. The CIM module enables data transmission
between the pump and an external system, for
example a BMS (Building Management System) or
SCADA system.
The CIM module communicates via fieldbus protocols.
See Available CIM modules, page 28.
