Accessories
MAGNA3
10
58

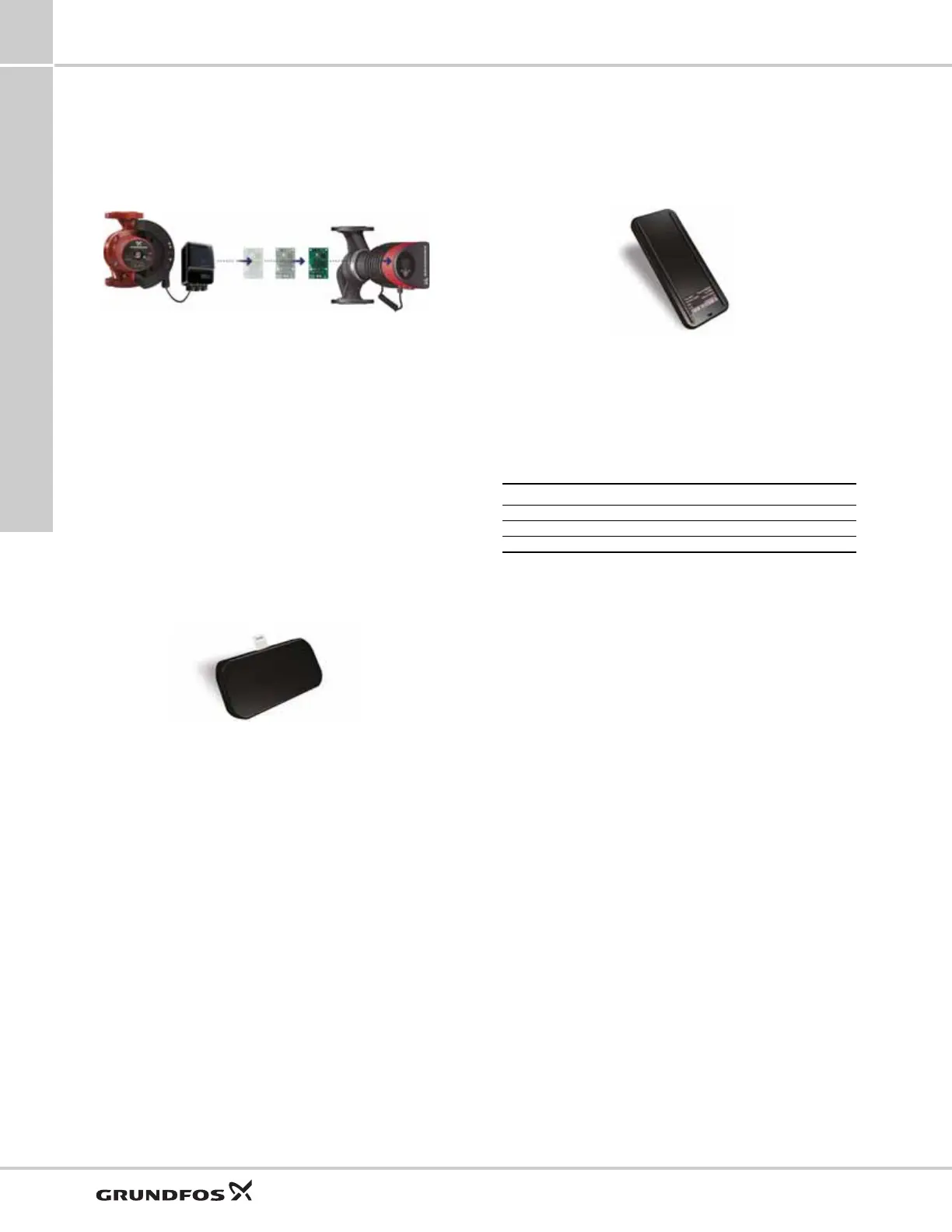

Reuse of CIM modules
You can reuse a CIM module in a CIU unit used
together with Grundfos MAGNA in MAGNA3. You must
re-configure the CIM module before you use it in a
MAGNA3 pump. Contact your local Grundfos
company.
Fig. 61 Reusing CIM modules
Grundfos GO
Grundfos GO is used for infrared or radio
communication with the pumps.
Various Grundfos GO variants are available. The
variants are described in the following.
MI 204
MI 204 is an add-on module with built-in infrared and
radio communication. You can use MI 204 in
conjunction with an Apple iPhone or iPod with
Lightning connector, e.g. a fifth generation iPhone or
iPod.
MI 204 is also available together with an Apple iPod
touch and a cover.
Fig. 62 MI 204
Supplied with the product:
• Grundfos MI 204
•sleeve
• quick guide
• charger cable.
MI 301
MI 301 is a module with built-in infrared and radio
communication. Use MI 301 in conjunction with an
Android or iOS-based smart device with a Bluetooth
connection. MI 301 has a rechargeable Li-ion battery
and must be charged separately.
Fig. 63 MI 301
Supplied with the product:
• Grundfos MI
301
• battery charger
• quick guide.
Product numbers
TM05 2911 1312TM05 7704 1513
TM05 3890 1712
Grundfos GO variant Product number
Grundfos MI 204 98424092
Grundfos MI 204 including iPod touch 98612711
Grundfos MI 301 98046408

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
