Grundfos magna3 User Manual

System applications
MAGNA3
3
13
Solar-heating systems

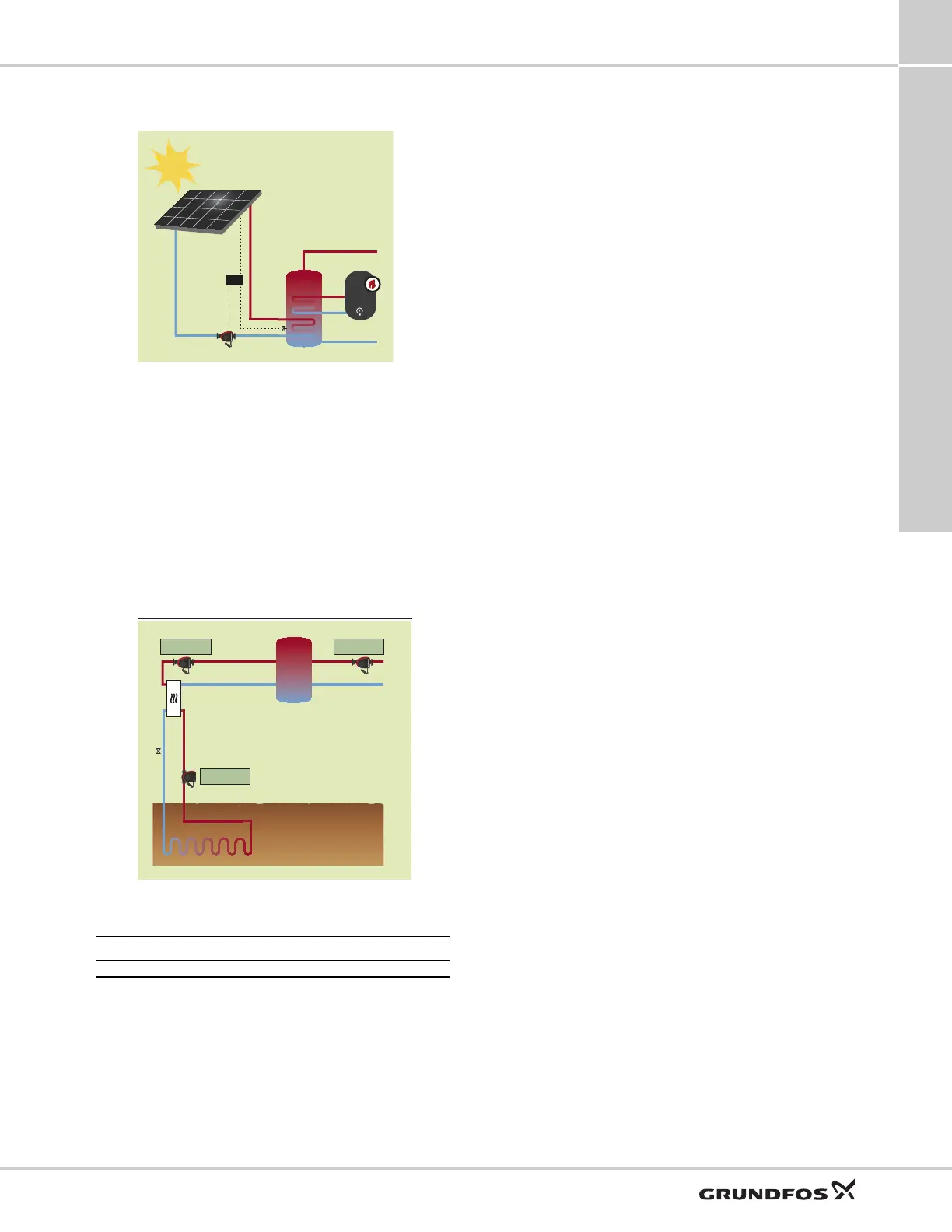

Fig. 12 Functional drawing of a solar-heating system
Main pumps
Solar-heating systems operate with very low flow rates
compared to other heating systems, however, with
relatively large pressure losses. With a conventional
circulator pump, the flow must be controlled with a
valve resulting in a significantly higher power
consumption. To achieve major reductions in energy
consumption, MAGNA3 is optimized with the
FLOW
ADAPT
/ FLOW
LIMIT
control mode for operation
specifically under these conditions.
Ground source heat pump systems (GSHP)
Fig. 13 Ground source heat pump system in a commercial
building
Main pumps
MAGNA3 is optimized for operation as a circulator
pump in a closed-loop pipe system which is buried in
the ground and filled with a mixture of water and
antifreeze agent. MAGNA3 is therefore ideal for large
ground source heat pump systems for commercial
buildings.
MAGNA3 is designed for pumping liquids down to +14
°F (-10 °C). The pump can use all known antifreeze
agent compositions.
It is important to note that all components are highly
energy-efficient. No other circulator pump performs
better in GSHP systems than MAGNA3 with the
FLOW
ADAPT
/ FLOW
LIMIT
control mode.
Use the benefit of the inputs and outputs of MAGNA3
to control the pump together with the heat pump.
Installation and commissioning
When installing MAGNA3, no external pressure sensor
or motor protection is required. Installation is simple
thanks to the built-in differential-pressure and
temperature sensor, which enables
proportional-pressure control without the installation of
a sensor in the system.
In systems where a differential pressure is desired at a
certain point of the system, you must install an external
pressure sensor. See Electrical data, page 34.
Pump selection is based on the required flow and
calculated pressure losses. We recommend that you
do not oversize the pump as it will lead to
unnecessarily high energy consumption.
MAGNA3 features the FLOW
LIMIT
function. In circuits
where MAGNA3 has full authority, the need for
external pump throttling valves is eliminated. The
FLOW
LIMIT
ensures that the rated flow is never
exceeded.
TM07 0367 1218
TM05 3422 1312
Pos. Description
1 Heat pump
T
T

Grundfos magna3 Specifications

General

Liquid Temperature Range	-10°C to +110°C
Max Operating Pressure	16 bar
Type	Circulator Pump
Series	MAGNA3
Operating Temperature Range	-10°C to +110°C
Ambient Temperature Range	0°C to +40°C
Protection Class	IPX4D
Power Supply	1 x 230 V, 3 x 230 V, 3 x 400 V
Control Mode	Constant pressure, Proportional pressure
Communication	Modbus RTU
Pump Housing	Cast Iron
Impeller	Composite
Enclosure Class	X4D
Approvals	CE, EAC
Connection	Flange
Weight	Varies depending on model
Power Consumption	Varies depending on model
