Table 8.9 Specifications on ST Series of Some Motors
Models
Power
(kw)
Zero
Speed
Rated
Rotation
Rated
Current
Rotor
Inertia
2
Machinery
Time
Operating
Voltage
Weight
(kg)
110ST-M02030H 0.6 2 3000 4.0 0.33×10
-3
3.64 220(300) 4.2
110ST-M04030H 1.2 4 3000 7.5(5.0) 0.65×10
-3
2.32 220(300) 5.2
110ST-M05030H 1.5 5 3000 9.5(6.0) 0.82×10
-3
2.03 220(300) 5.8
110ST-M06020H 1.2 6 2000 8.0(6.0) 1.00×10
-3
1.82 220(300) 6.4
110ST-M06030H 1.8 6 3000 11.0(8.0) 1.00×10
-3
1.82 220(300)
6.4
130ST-M04025H 1.0 4 2500 6.5(4.0) 0.85×10
-3
3.75 220(300) 7.4
130ST-M05025H 1.3 5 2500 6.5(5.0) 1.06×10
-3
3.07 220(300) 7.9
130ST-M06025H 1.5 6 2500 8.0(6.0) 1.26×10
-3
2.83 220(300) 8.6
130ST-M07720H 1.6 7.7 2000 9.0(6.0) 1.58×10
-3
2.44 220(300) 9.5
130ST-M10015H 1.5 10 1500 9.0(6.0) 2.14×10
-3
2.11 220(300) 11.1
130ST-M10025H 2.6 10 2500 14.5(10.0) 2.14×10
-3
2.11 220(300) 11.1
130ST-M15015H 2.3 15 1500 13.5(9.5) 3.24×10
-3
1.88 220(300) 14.3
Note 1: The value within the bracket in the column of rated current is the rated current
under high voltage
Note 2: The user shall make a special indication if he or she wants to order motor with
electricity-losing brake

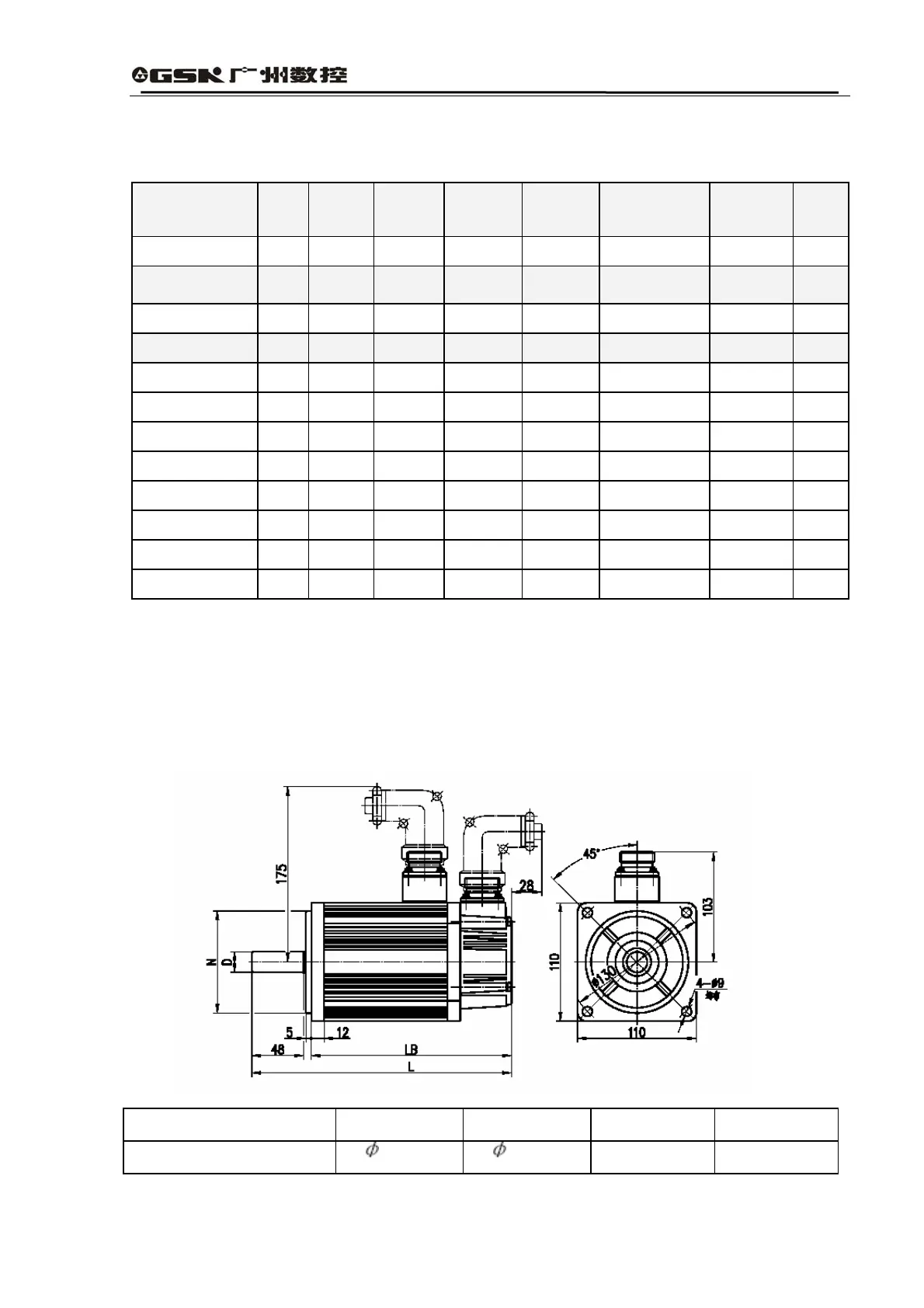

3) Figuration Dimension
(1) Figuration and installment dimension for SJT series of 110-stand model AC servo
motors
Specifications D(mm) N(mm) LB(mm) L(mm)
110SJT—M020E 19
0
-0.013
95
0
-0.035
156(207) 211(262)
