SFG-2000 Series User Manual
14

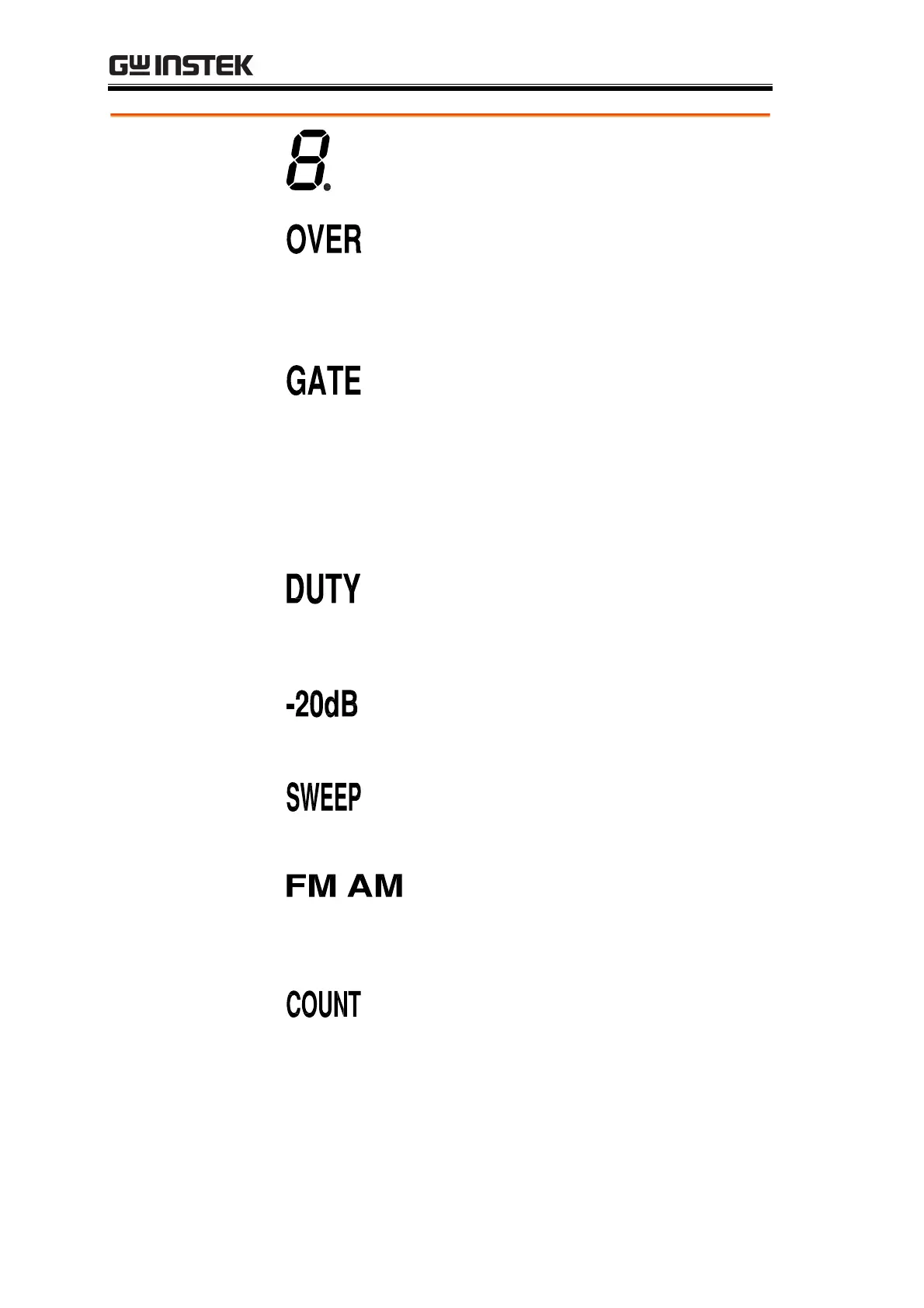

Main display
(7 segment)
Shows the waveform frequency,
counter frequency, and duty cycle.
For SFG-2100 series only. In the
counter mode, indicates that the
leftmost digit (100MHz) is hidden
but contains a real number. For
counter details, see page
40.
For SFG-2100 series only. In
counter mode, indicates gate
selection. For counter details, see
page
40.
TTL
Indicates that the TTL or CMOS
output is enabled. For TTL/CMOS
details, see page
31.
For square waveform only.
Indicates that the duty cycle is
being edited. For square waveform
details, see page
25.
Indicates that the waveform output
is attenuated by −20dB. For
attenuation details, see page
29.
For SFG-2100 series only. Indicates
that the sweep mode is activated.
For sweep details, see page
35.
For SFG-2100 series only. Indicates
that FM or AM mode is enabled.
For modulation details, see page
37
(AM) or page
38(FM).
For SFG-2100 series only. Indicates
that the counter mode is enabled.
For counter details, see page
40.
EXT
For SFG-2100 series only. Indicates
that the external modulation input
is used. For details, see page
37
(AM) or page
39(FM).
