GETTING STARTED
15

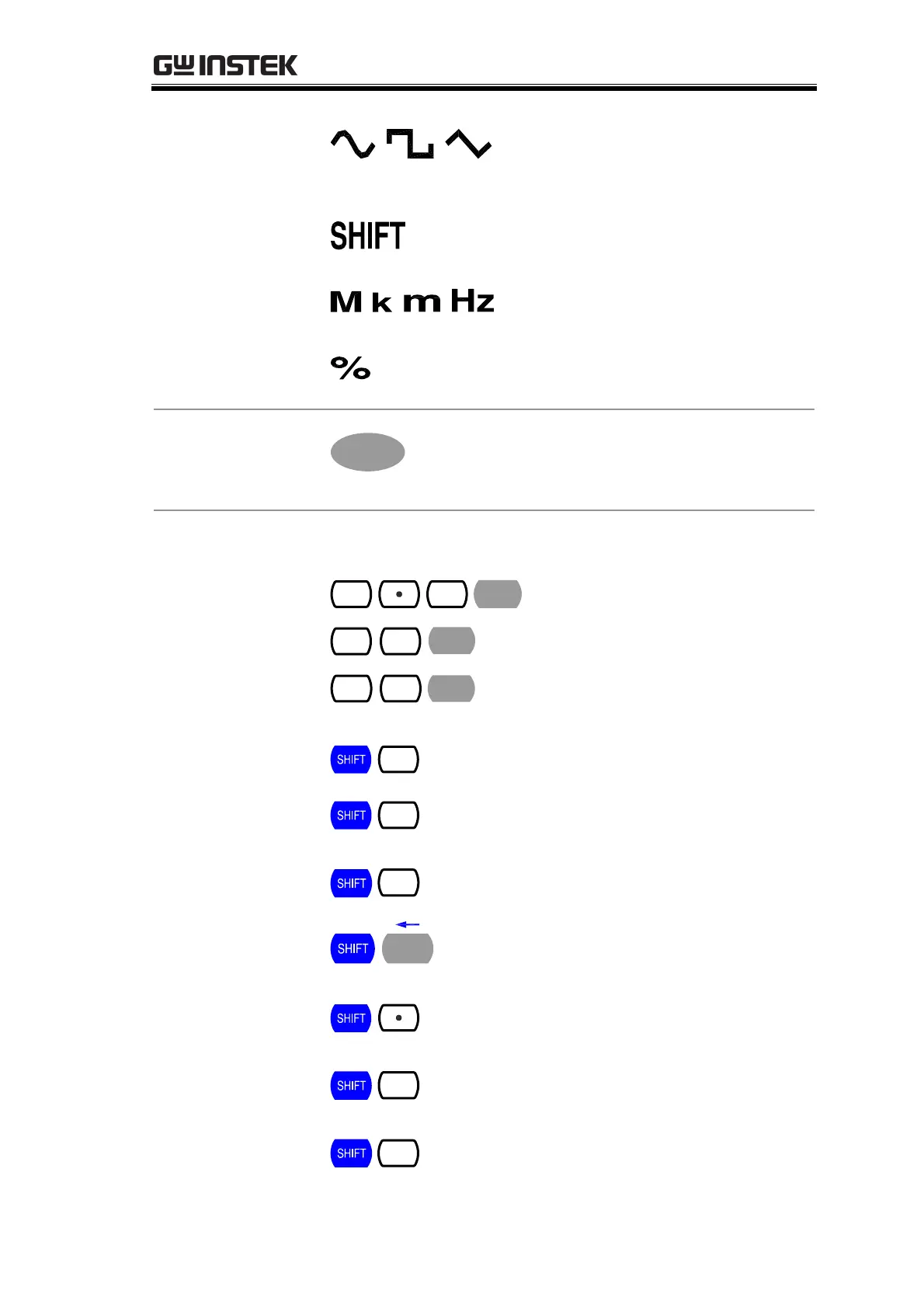

Indicates the waveform shape: Sine,
Square, and Triangle. For details,
see page
26.
Indicates that the Shift key is
pressed.
Indicates the output frequency:
MHz, kHz, or Hz.
Indicates the duty cycle unit. For
duty cycle details, see page
28.
Waveform
selection key
WAVE
Selects the waveform shape: sine,
square, and triangle. For details,
see page
26.
Entry keys
Enters frequency, duty cycle, and various parameters.
1 2
MHz
1.2MHz
kHz
3 7
37kHz
54
Hz/%
45% (in duty cycle mode)
45Hz (in frequency mode)
DUTY
7
Enter duty cycle (page28).
−20dB
8
Attenuate the waveform output
by −20dB (page
29).
TTL
9
Enables TTL/CMOS output
(page
31).
MHz
Deletes previous entry
(backspace).
AM
Selects Amplitude Modulation
(page
37).
FM
4
Selects Frequency Modulation
(page
38).
SWEEP
5
Selects sweep mode (page35).
