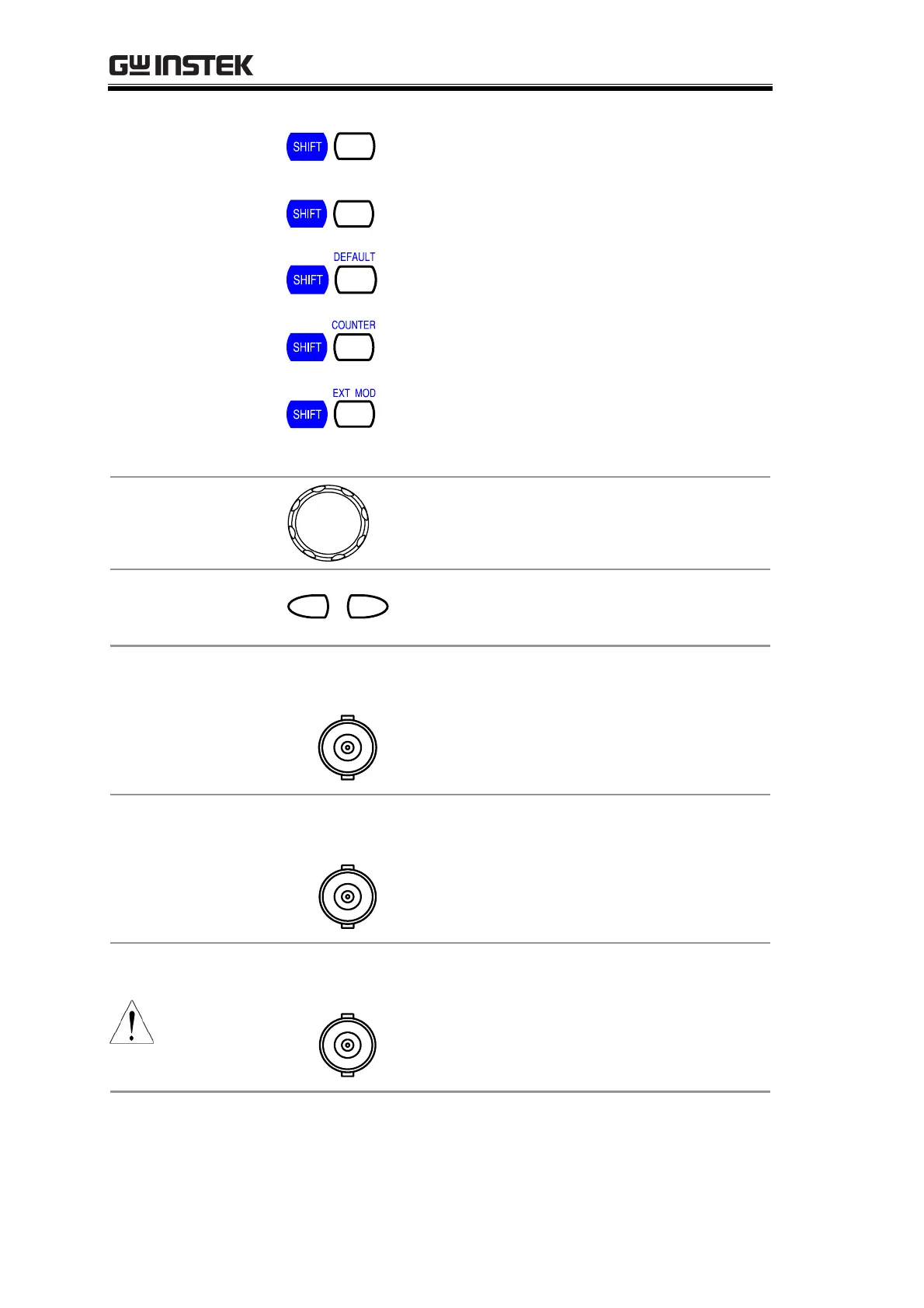

SFG-2000 Series User Manual
16
STORE
6
Stores the parameter setting
(page
42).
RECALL
3
Recalls the parameter setting
(page
42).
2
Recalls the default parameter
setting (page
43).
1
Switches to counter mode
(page
40).
0
Accepts external modulation
signal (page
37-AM) or
(page
38-FM).
Editing knob
Increases (right turn) or decreases (left
turn) the frequency or duty cycle.
Cursor keys
Moves the editing point left or right in
case of manual editing.
Waveform
output
OUTPUT
50 Ω
Outputs sine, square, and triangle
waveform. BNC terminal, 50Ω output
impedance.
TTL/CMOS
output
TTL/CMOS
OUTPUT
Outputs TTL or CMOS output
waveform, BNC terminal. For
TTL/CMOS mode details, see page
31.
Counter input
Max AC 30Vrms
COUNTER
INPUT
Accepts signals for frequency counting.
BNC, AC 30Vrms maximum. For
counting mode details, see page
40.
