GW Instek SFG-2000 Series User Manual

GETTING STARTED
17

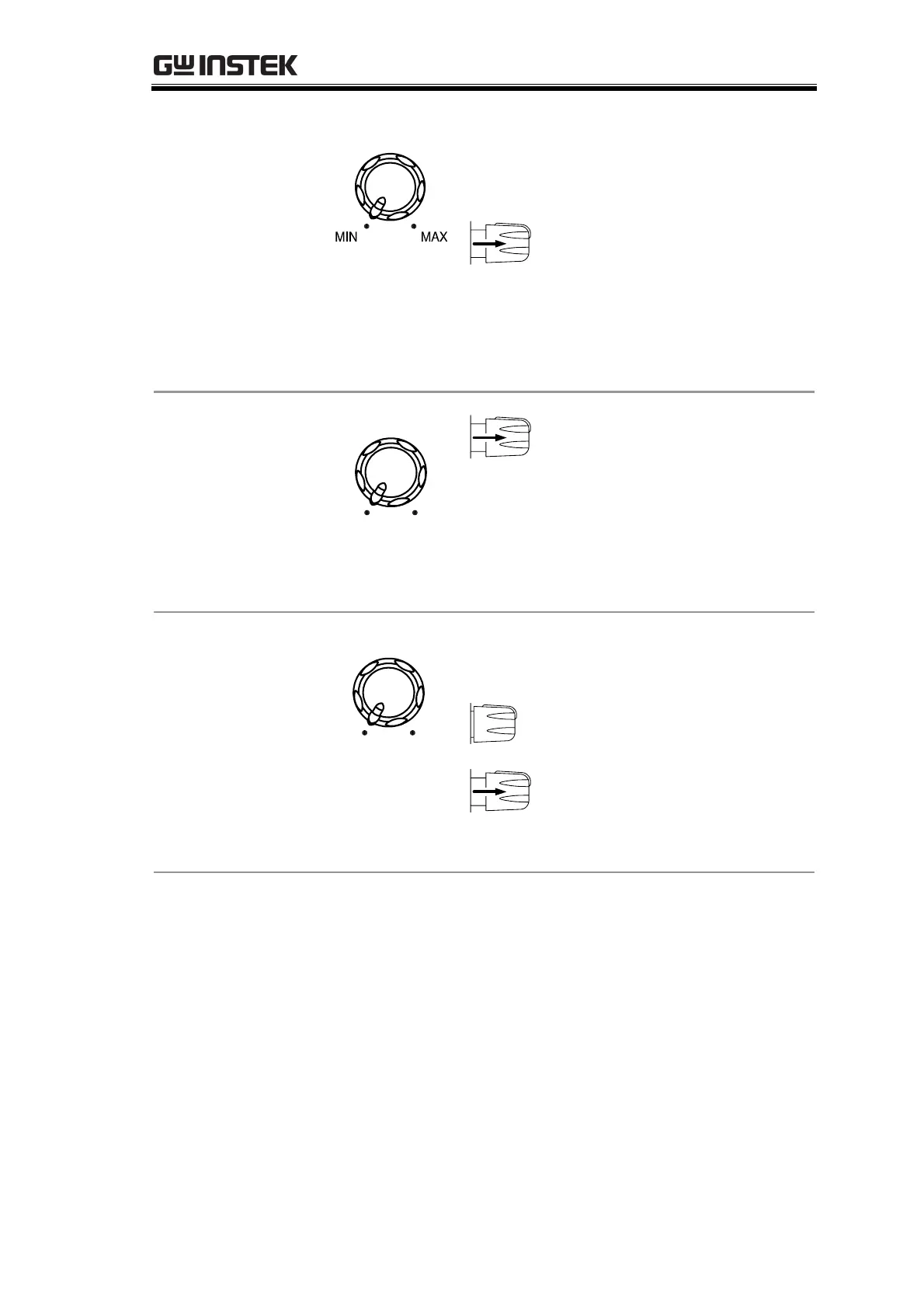

Amplitude/
Attenuation
control
ADJ
−20dB
AMPL
Sets the sine/square/triangle waveform
amplitude. Turn left (decrease) or right
(increase).
When pulled out, attenuates the
sine/square/triangle waveform
amplitude by −20dB. The −20dB display
turns On.
For details, see page
29.
DC offset
control
CAL
ADJ
OFFSET
-
+
When pulled out, sets the DC
offset level for sine/square/triangle
waveform. Turn left (decrease) or right
(increase). The range is −5V ~ +5V, in
50Ω load.
For details, see page
30.
CMOS
amplitude
control
TTL
CMOS ADJ
TTL/CMOS
5V 15V
This knob becomes effective when the
TTL/CMOS output is enabled (page
31).
Selects TTL as output.
When pulled out, selects CMOS
as output. Sets the CMOS output level.
Turn left (decrease) or right (increase).
