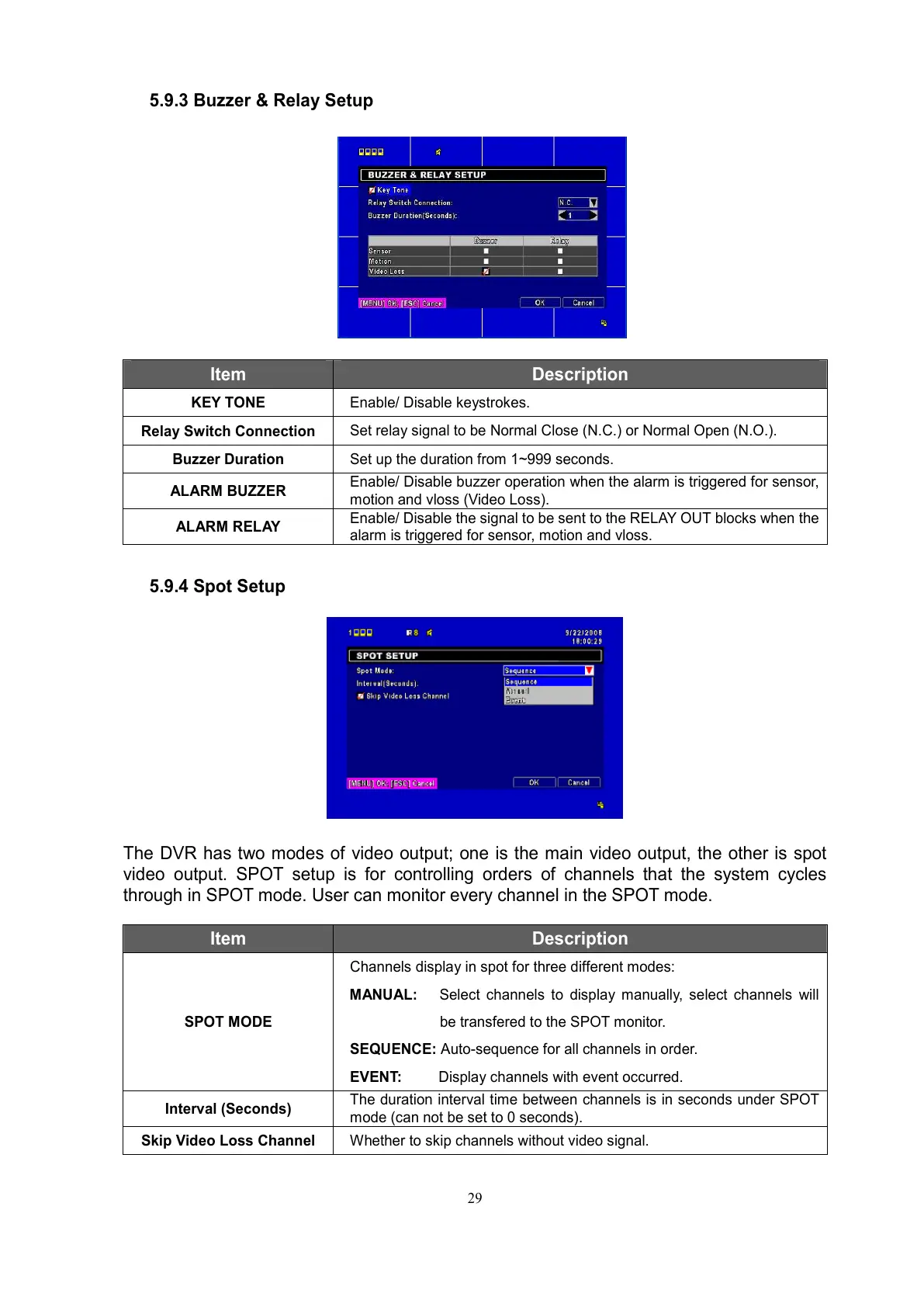

5.9.3 Buzzer & Relay Setup
Item Description
KEY TONE
Enable/ Disable keystrokes.
Relay Switch Connection
Set relay signal to be Normal Close (N.C.) or Normal Open (N.O.).
Buzzer Duration
Set up the duration from 1~999 seconds.
ALARM BUZZER
Enable/ Disable buzzer operation when the alarm is triggered for sensor,
motion and vloss (Video Loss).
ALARM RELAY
Enable/ Disable the signal to be sent to the RELAY OUT blocks when the
alarm is triggered for sensor, motion and vloss.
5.9.4 Spot Setup
The DVR has two modes of video output; one is the main video output, the other is spot
video output. SPOT setup is for controlling orders of channels that the system cycles
through in SPOT mode. User can monitor every channel in the SPOT mode.
Item Description
SPOT MODE
Channels display in spot for three different modes:
MANUAL: Select channels to display manually, select channels will
be transfered to the SPOT monitor.
SEQUENCE: Auto-sequence for all channels in order.
EVENT: Display channels with event occurred.
Interval (Seconds)
The duration interval time between channels is in seconds under SPOT
mode (can not be set to 0 seconds).
Skip Video Loss Channel
Whether to skip channels without video signal.
