1-8
For details about LEDs on the front panel, refer to section “Front Panel LEDs of the S3100-TP-SI and
S3100-TP-EI Series
”.
Rear panel
Each S3100-52TP-SI Ethernet switch provides one console port on its rear panel. Figure 1-25 shows
the rear panel of an S3100-52TP-SI Ethernet switch.

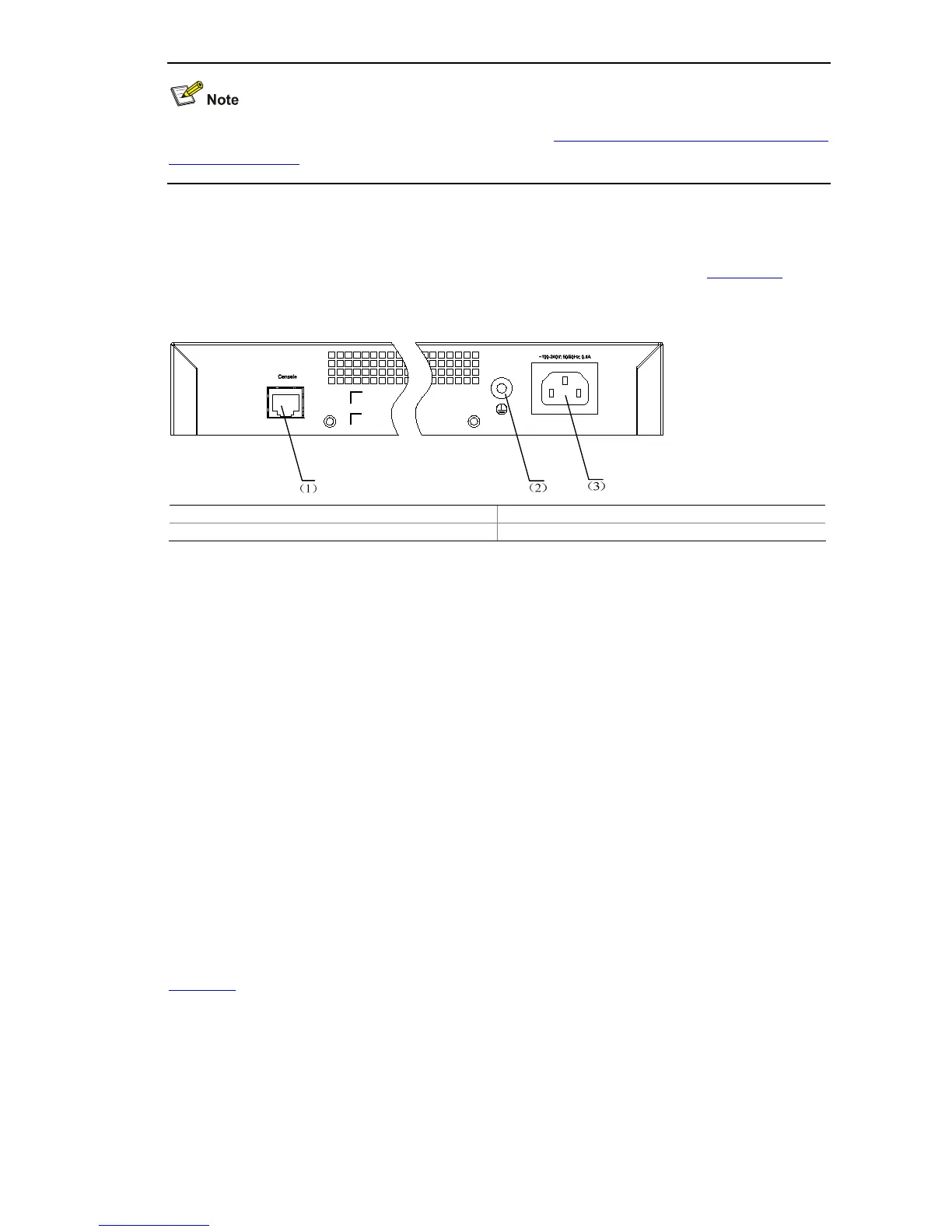

Figure 1-2 Rear panel of an S3100-52TP-SI Ethernet switch
(1) Console port (2) Grounding screw
(3) AC input terminal block
Power system
S3100-52TP-SI Ethernet switches support AC input.
z Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
z Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
Cooling system
The S3100-52TP-SI cools off naturally.
S3100-26TP-SI
Front panel
S3100-26TP-SI Ethernet switches each provide twenty-four auto-sensing 10/100Base-TX Ethernet
ports, two auto-sensing 10/100/1000Base-T Ethernet ports, two 100/1000Base-X SFP ports, and one
console port. Each SFP port and the corresponding auto-sensing 10/100/1000Base- T Ethernet port
form a Combo port. For each Combo port, either the SFP port or the corresponding 10/100/1000Base-T
Ethernet port can be used at a time.
Figure 1-3 shows the front panel of an S3100-26TP-SI Ethernet switch.
