1-11
S3100-8TP-SI
Front panel
S3100-8TP-SI Ethernet switches each provide eight auto-sensing 10/100Base-TX Ethernet ports, one
auto-sensing 10/100/1000Base-T Ethernet ports, one 100/1000Base-X SFP ports, and one console
port. The SFP port and the auto-sensing 10/100/1000Base- T Ethernet port form a Combo port. For the
Combo port, either the SFP port or the 10/100/1000Base- T Ethernet port can be used at a time.

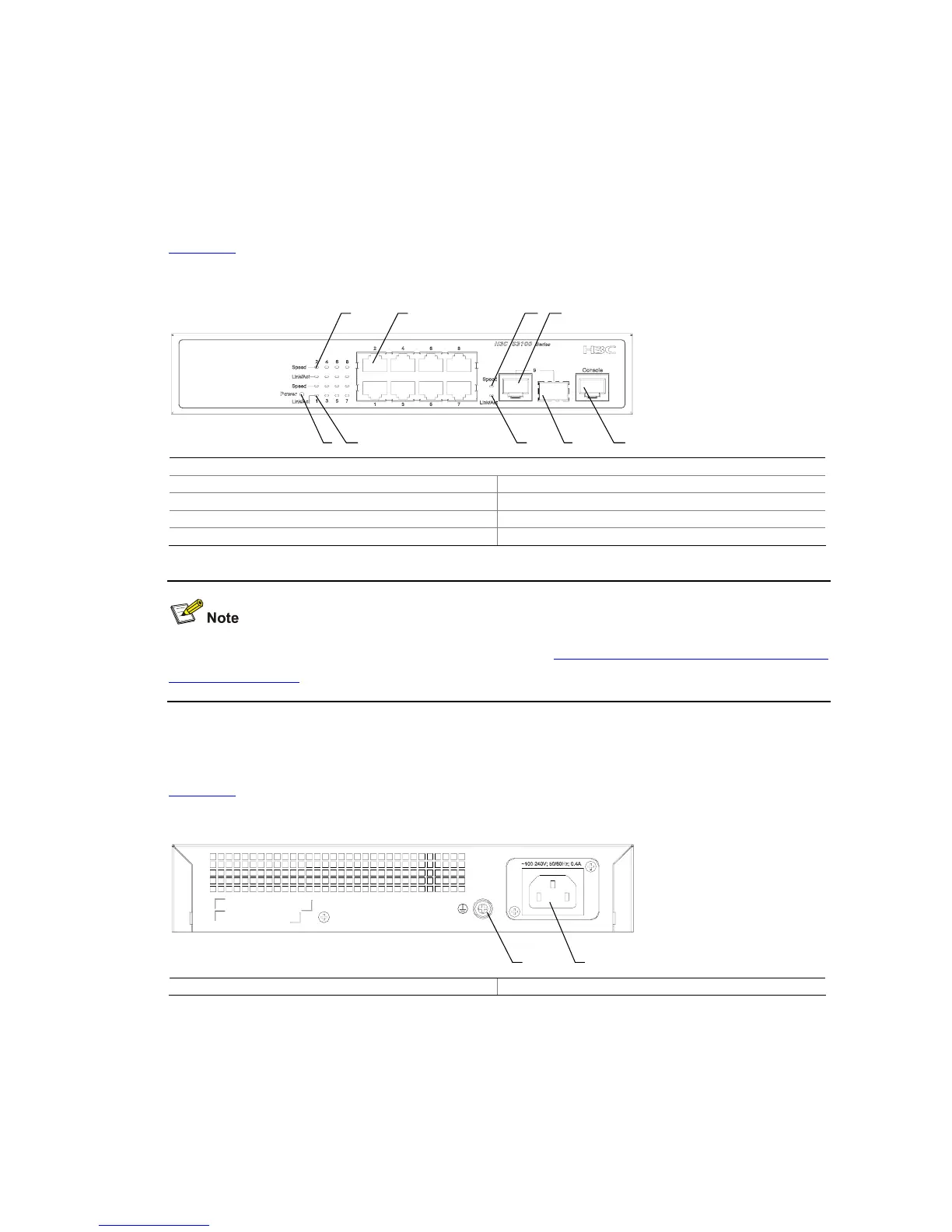

Figure 1-7 shows the front panel of an S3100-8TP-SI Ethernet switch.
Figure 1-7 Front panel of an S3100-8TP-SI Ethernet switch
(1) (2) (4)
(5)
(6)(7)(8)
(3)
(7)
(1) Auto-sensing 10/100Base-TX port Speed LED (green)
(2) Auto-sensing 10/100Base-TX port (3) Combo port Speed LED (green)
(4) Auto-sensing 10/100/1000Base-T port (5) Console port
(6) 100/1000Base-X SFP port (7) LINK/ACT LED (green)
(8) Power LED (PWR)
For details about LEDs on the front panel, refer to section “Front Panel LEDs of the S3100-TP-SI and
S3100-TP-EI Series
”.
Rear panel
Figure 1-8 shows the rear panel of an S3100-8TP-SI Ethernet switch.
Figure 1-8 Rear panel of an S3100-8TP-SI Ethernet switch
(1) (2)
(1) Grounding screw (2) AC input terminal block
Power system
S3100-8TP-SI Ethernet switches support AC input.
z Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
z Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
