H3C S3100 Series

1-10
Combo port. For each Combo port, either the SFP port or the corresponding 10/100/1000Base- T
Ethernet port can be used at a time.

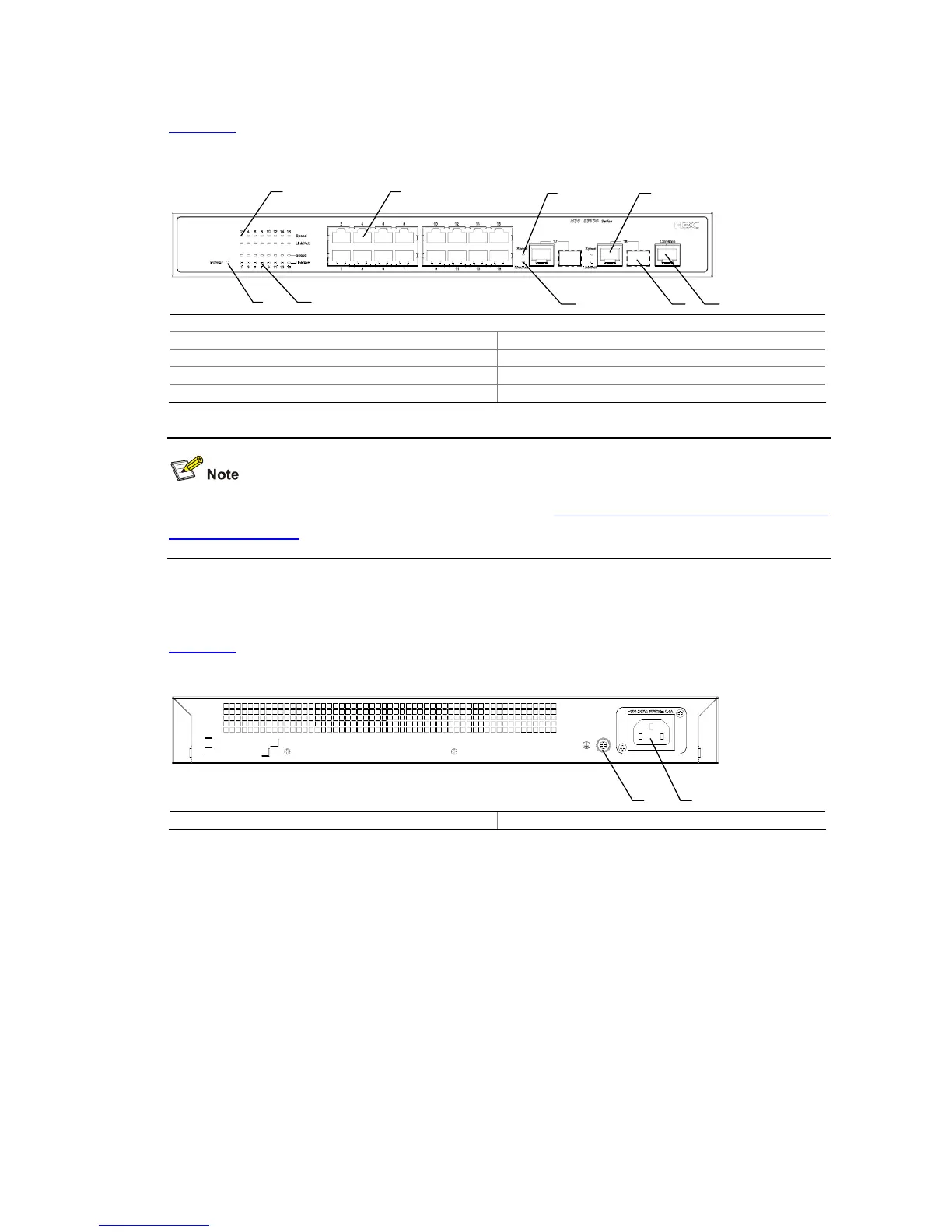

Figure 1-5 shows the front panel of an S3100-16TP-SI Ethernet switch.
Figure 1-5 Front panel of an S3100-16TP-SI Ethernet switch
(
1
)
(
2
)
(4)
(5)
(6)
(7)
(8)
(3)
(7)
(1) Auto-sensing 10/100Base-TX port Speed LED (green)
(2) Auto-sensing 10/100Base-TX port (3) Combo port Speed LED (green)
(4) Auto-sensing 10/100/1000Base-T port (5) Console port
(6) 100/1000Base-X SFP port (7) LINK/ACT LED (green)
(8) Power LED (PWR)
For details about LEDs on the front panel, refer to section “Front Panel LEDs of the S3100-TP-SI and
S3100-TP-EI Series
”.
Rear panel
Figure 1-6 shows the rear panel of an S3100-16TP-SI Ethernet switch.
Figure 1-6 Rear panel of an S3100-16TP-SI Ethernet switch
(1) (2)
(1) Grounding screw (2) AC input terminal block
Power system
S3100-16TP-SI Ethernet switches support AC input.
z Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
z Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
Cooling system
The S3100-16TP-SI cools off naturally.
