1-28
If the left screw hole above the security slot is used, the security slot cannot be used.
Power system
S3100-8TP-PWR-EI Ethernet switches support AC input.
z Rate voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
z Input voltage range: 90 VAC to 264 VAC, 47 HZ to 63 Hz
Cooling system
The S3100-8TP-PWR-EI has two fans for heat dissipation.
S3100-26C-EPON-EI
Front panel
The S3100-26C-EPON-EI provides 24 x 10/100Base-TX ports, one Gigabit uplink PON port, one
expansion slot, and one console port.

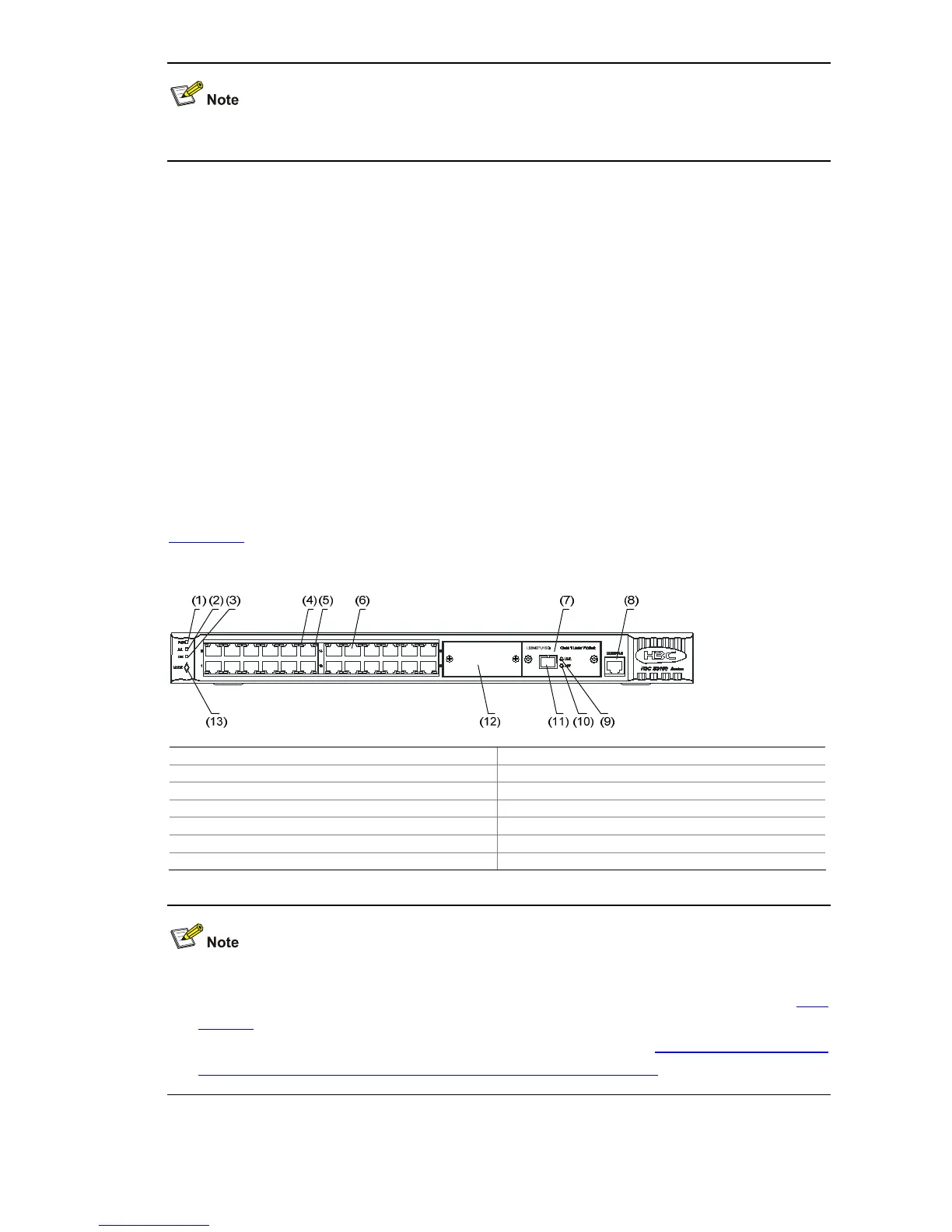

Figure 1-40 shows the front view of the S3100-26C-EPON-EI.
Figure 1-40 Front panel of the S3100-26C-EPON-EI
(1) Power Led (PWR) (2) A/L LED
(3) D/S LED (4) Port status LED, left (yellow)
(5) Port status LED, right (green) (6) 10/100 Base-TX port
(7) ONU module (8) Console port
(9) LINK LED for the uplink PON port (10) ACT LED for the uplink PON port
(11) 1000 Mbps uplink PON port (12) Expansion slot
(13) MODE button
z The S3100-26C-EPON-EI provides one expansion slot. You can order one more ONU module
(1000Base- PX20) as needed. For more information about ONU modules, refer to section “
ONU
Modules
”.
z For details about the LEDs on the front panel, refer to section “Front Panel LEDs of the
S3100-T-SI/S3100-C-SI/S3100-TP-PWR-EI/ S3100-C-EPON-EI Series
”.
