1-18
Front panel
S3100-8C-SI Ethernet switches each provide eight auto-sensing 10/100Base-TX Ethernet ports, one
expansion slot, and one console port.
S3100-8C-SI Ethernet switches have the same front panel, as shown in
Figure 1-21.

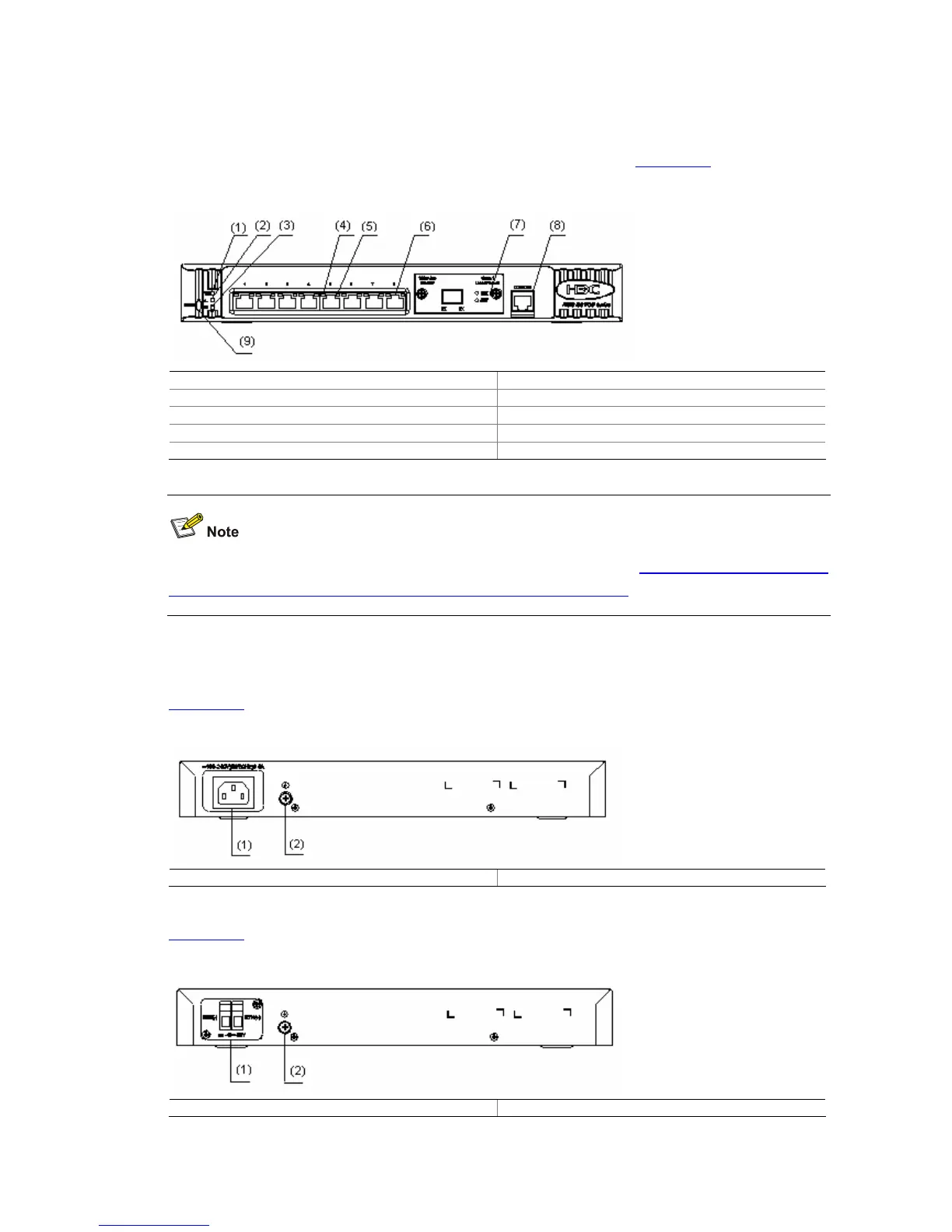

Figure 1-21 Front panel of an S3100-8C-SI Ethernet switch
(1) Power LED (2) A/L LED
(3) D/S LED (4) Port status LED, left (yellow)
(5) Port status LED, right (green) (6) 10/100Base- TX port
(7) Expansion slot (8) Console port
(9) Mode button
For details about LEDs on the front panel, refer to section “Front Panel LEDs of the
S3100-T-SI/S3100-C-SI/S3100-TP-PWR-EI/ S3100-C-EPON-EI Series
”.
Rear panel
Figure 1-22 shows the rear panel of an S3100-8C-SI AC-powered Ethernet switch.
Figure 1-22 Rear panel of an S3100-8C-SI AC-powered Ethernet switch
(1) AC power socket (2) Grounding screw
Figure 1-23 shows the rear panel of an S3100-8C-SI DC-powered Ethernet switch.
Figure 1-23 Rear panel of an S3100-8C-SI DC-powered Ethernet switch
(1) DC input terminal block (2) Grounding screw
