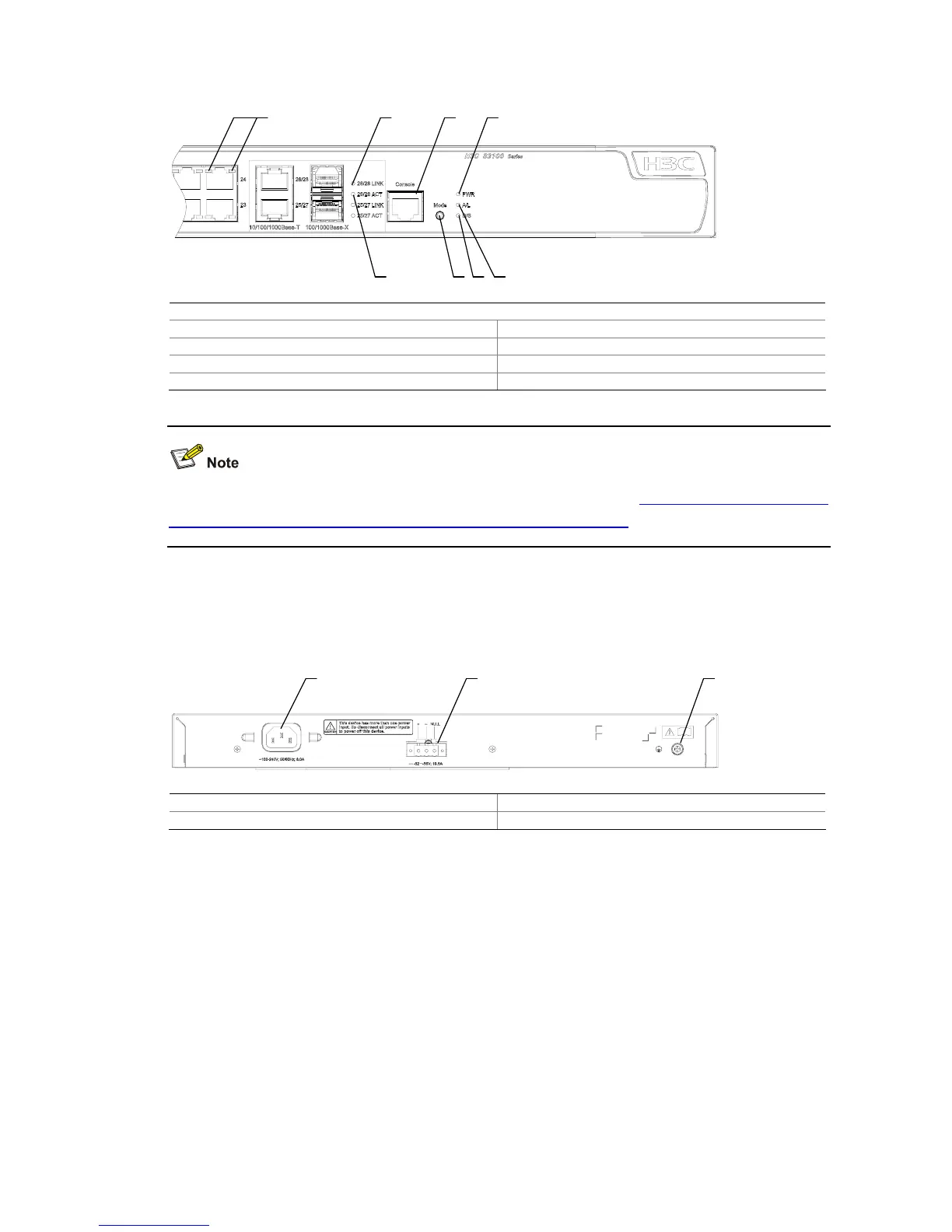

Figure 1-33 Front panel of an S3100-26TP-PWR-EI Ethernet switch
(1) (2) (3) (4)
(5)(6)(7)(8)
(1) Auto-sensing 10/100Base-TX Ethernet port status LED
(2) LINK LED for Combo port (3) Console port
(4) Power LED (PWR) (5) A/L LED
(6) D/S LED (7) Mode button
(8) ACT LED for Combo port
For details about LEDs on the front panel, refer to section “Front Panel LEDs of the
S3100-T-SI/S3100-C-SI/S3100-TP-PWR-EI/ S3100-C-EPON-EI Series
”.
Rear panel
Figure 1-34 Rear panel of an S3100-26TP-PWR-EI Ethernet switch
(1) (2) (3)
(1) AC power socket (2) DC power socket
(3) Grounding screw
Power system
S3100-26TP-PWR-EI Ethernet switches support AC input or DC input.
1) AC input
z Rated voltage range: 100 VAC to 240 VAC, 50 Hz/60 Hz
z Input voltage range: 90 VAC to 264 VAC, 47 Hz to 63 Hz
2) DC input
z Rated voltage range: –52 VDC to –56 VDC
